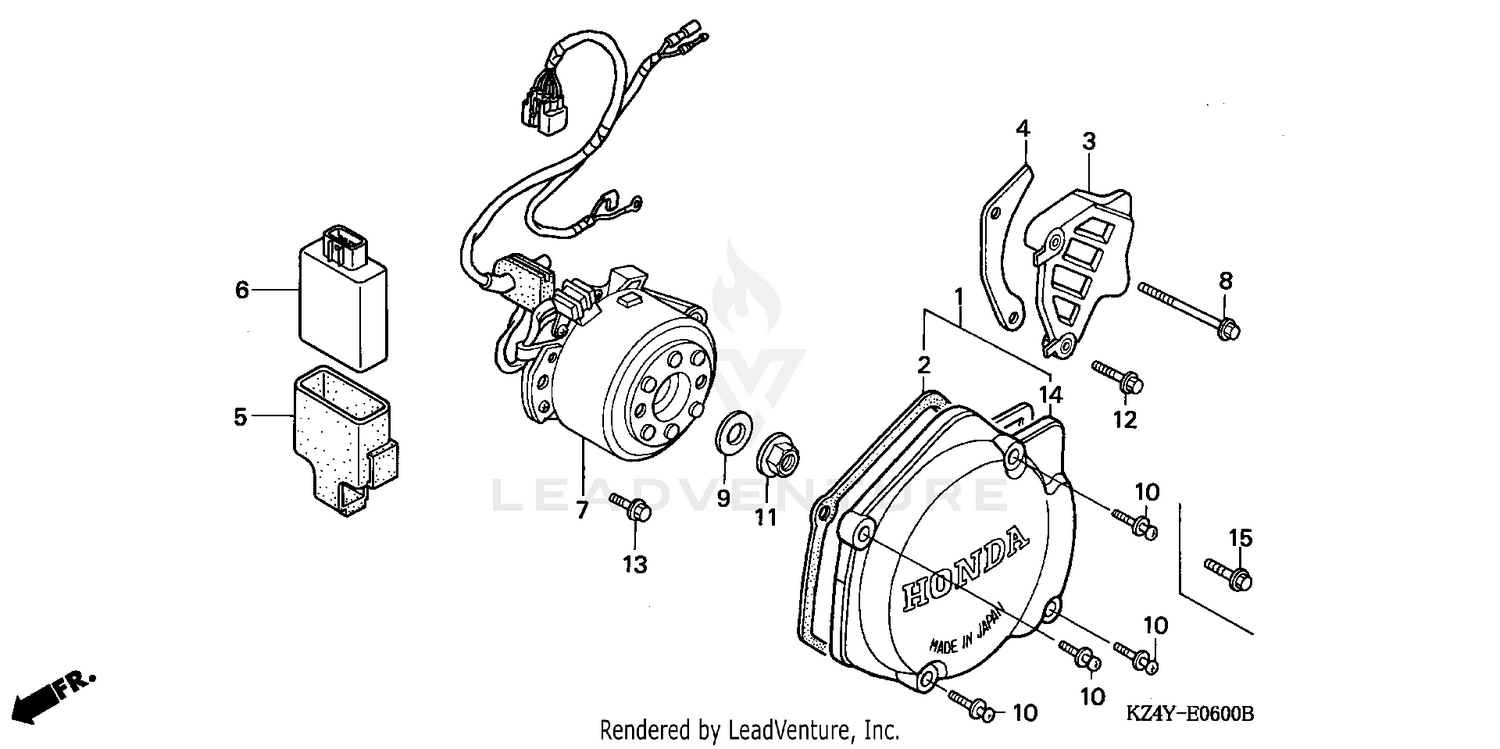

Left Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER ASSY., L. CRANKCASE
11350-KZ4-620
|
$47.90 | ||
|
Unavailable |
|||
|
#2
SEAL, L. COVER
11352-KS6-700
|
$14.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, DRIVE SPROCKET
23810-KZ4-620
|
$34.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, DRIVE CHAIN
23812-KZ4-J00
|
$19.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION, RUBBER
30401-KZ4-A90
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
MODULE, IGNITION CONTROL (CDI)
30410-KZ4-A91
|
$235.79 | ||
|
Unavailable |
|||
|
#7
ALTERNATOR ASSY., FLYWHEEL TYPE
31100-KZ4-A91
|
$450.08 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE (6X120)
90053-KZ4-620
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN (12MM)
90437-611-000
|
$5.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW-WASHER (6X28)
93891-06028-00
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FLANGE (12MM)
94050-12000
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X32)
96001-06032-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X18)
96300-06018-00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
