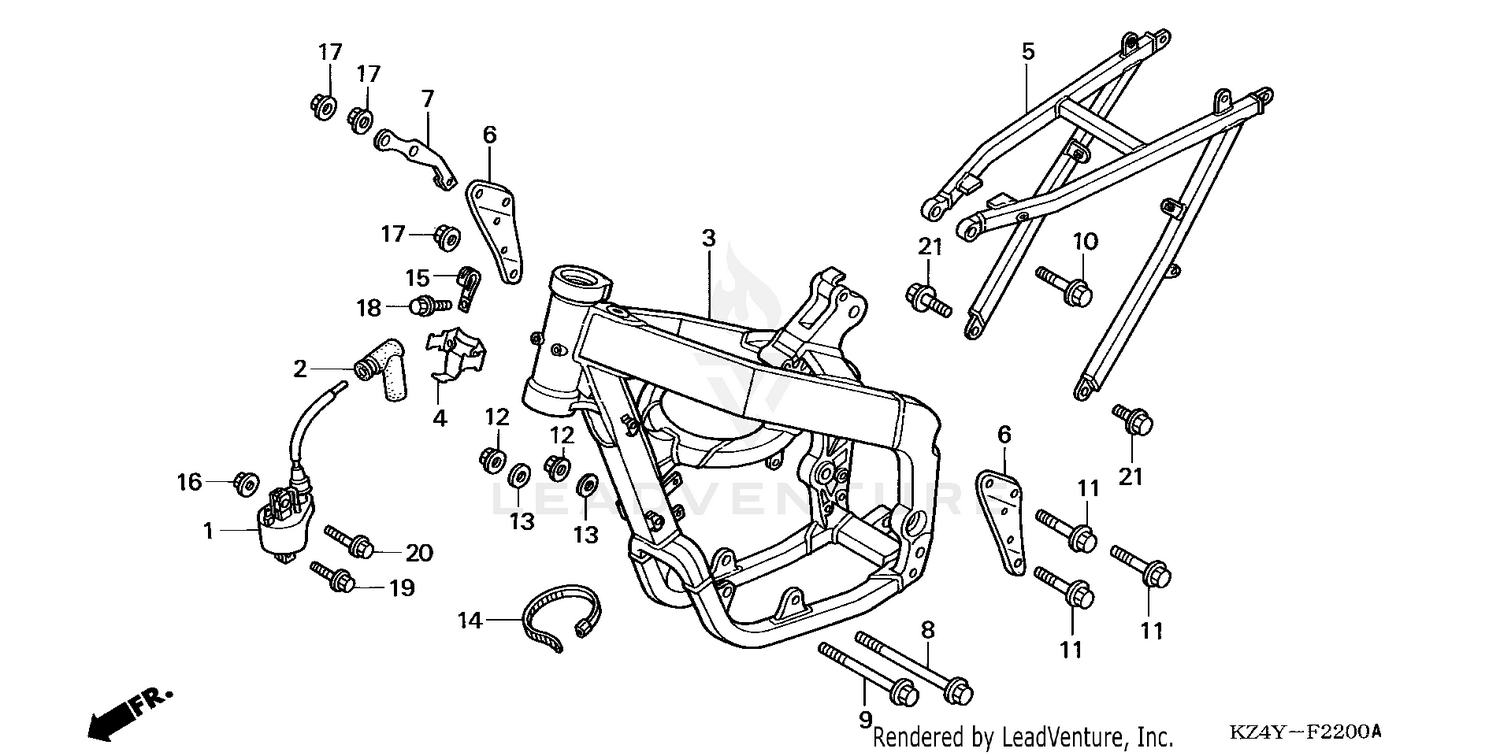

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL ASSY., IGNITION
30500-KZ4-J21
Superseded by 30500-MEB-671
|
$76.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-KA5-771
|
$37.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
FRAME
50100-KZ4-J20
|
$1,198.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, IGNITION CONTROL MODULE (CDI)
50124-KZ4-J20
|
$7.19 | ||
|
Unavailable |
|||
|
#5
FRAME, RR.
50200-KZ3-J30
|
$506.61 | ||
|
Unavailable |
|||
|
#5
FRAME, RR.
50200-KZ4-J20
Superseded by 50200-KZ3-J30
|
$506.61 | ||
|
Unavailable |
|||
|
#6
BRACKET, HEAD HANGER
50407-KZ4-J20
|
$15.59 | ||
|
Unavailable |
|||
|
#7
STAY, OIL CUP
50409-KZ4-J20
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (10X142)
90101-KZ4-J10
|
$12.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (10X115)
90102-KZ3-J10
|
$5.60 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (8X73)
90103-KZ4-J20
|
$3.79 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE (8X55)
90119-VM6-003
|
$8.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, FLANGE (10MM)
90204-634-000
Superseded by 94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT, FLANGE (10MM)
94030-10000-07
Superseded by 94050-10000
|
$1.62 | ||
|
Unavailable |
|||
|
#12
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
Unavailable |
|||
|
#13
WASHER (10MM)
90410-HC4-000
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BAND, WIRE
90651-KV6-003
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP (2X70)
91413-679-000
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (8X25)
96300-08025-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
