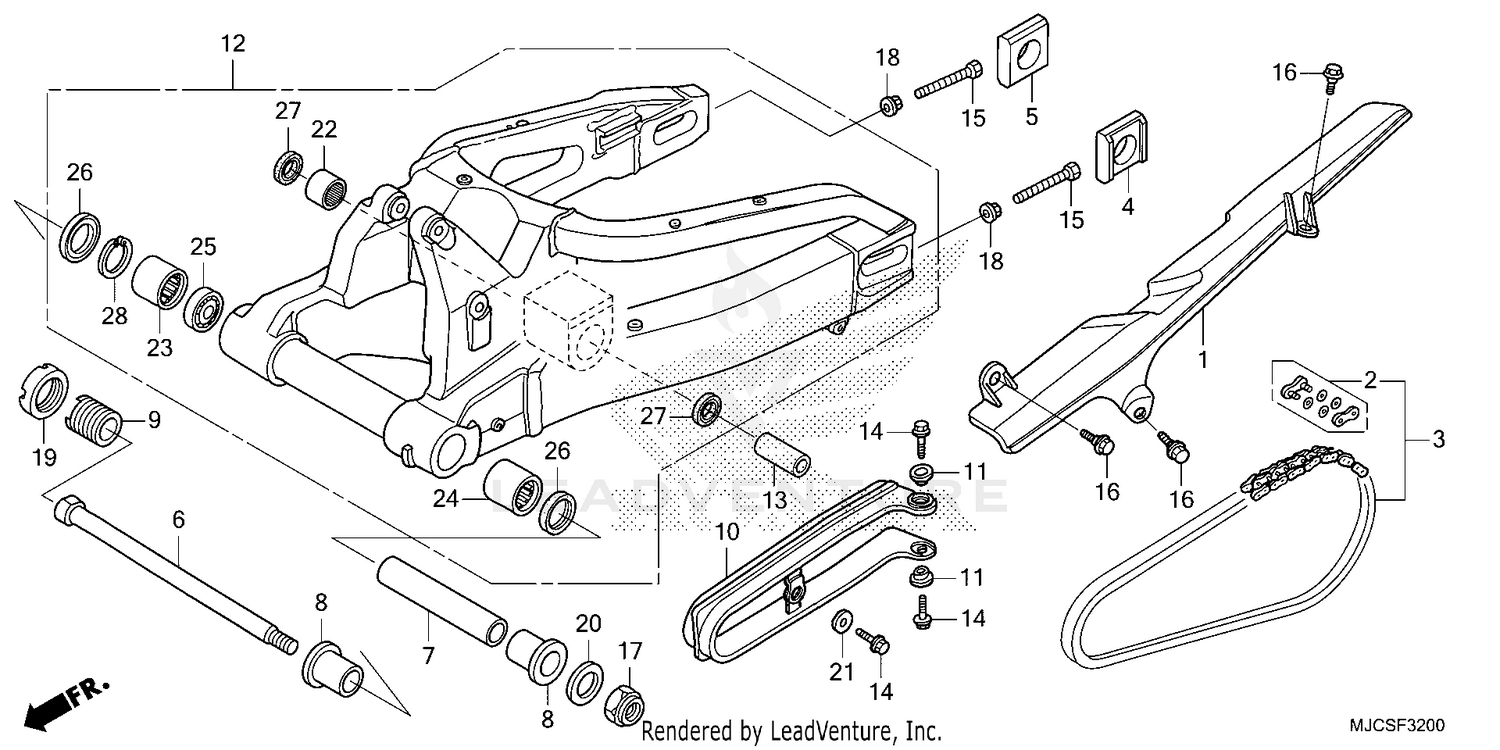

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#22
BEARING, NEEDLE (KOYO)
91071-KV3-005
|
$30.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BEARING, NEEDLE
91071-MBW-E11
|
$20.84 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, NEEDLE
91071-MR7-003
|
$31.11 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (20X37X9)
91072-MR7-003
|
$21.82 | ||
|
Available to order. Add to View Price |
|||
|
#26
DUST SEAL (28X37X4)
91202-MR7-003
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#27
DUST SEAL (17X24X5) (ARAI)
91262-KV3-831
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP (INNER) (37MM)
94520-37000
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#1
CASE, DRIVE CHAIN
40510-MEE-010
|
$60.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER LINK SET (DAIDO)
40535-MAL-G01
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER LINK SET (RK EXCEL)
40541-MFJ-D02
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN, DRIVE (DID525HV-120ZB) (DAIDO) (STANDARD LINK 108L)
40540-MAL-G01
|
$273.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN, DRIVE (525ROZ6-120LJFZ) (RK EXCEL) (STANDARD LINK 112L)
40540-MFJ-D02
|
$261.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, L. RR. AXLE
42305-MFL-000
|
$25.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, R. RR. AXLE
42306-MFL-000
|
$21.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, SWINGARM PIVOT
52101-MFJ-D00
|
$62.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, SWINGARM PIVOT
52102-MJC-A00
|
$26.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR B, PIVOT
52106-MGC-D30
|
$36.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, R. PIVOT ADJUSTING
52108-MFJ-D00
|
$27.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
SLIDER, CHAIN
52170-MFJ-D00
|
$48.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, CHAIN SLIDER
52171-MFJ-D00
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWINGARM SUB-ASSY., RR.
52200-MFJ-A40
|
$1,239.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, CUSHION CONNECTING ROD
52463-MJC-A00
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X18)
90105-MY9-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (8X50)
90106-MCF-D00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6MM)
90113-MAS-E00
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U (18MM)
90306-MCS-G01
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, HEX. (10MM)
90309-357-000
|
$4.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, SWINGARM PIVOT
90355-MFJ-D00
|
$18.02 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (18X32X2)
90401-KZ4-890
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (6MM)
90485-MB2-000
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
