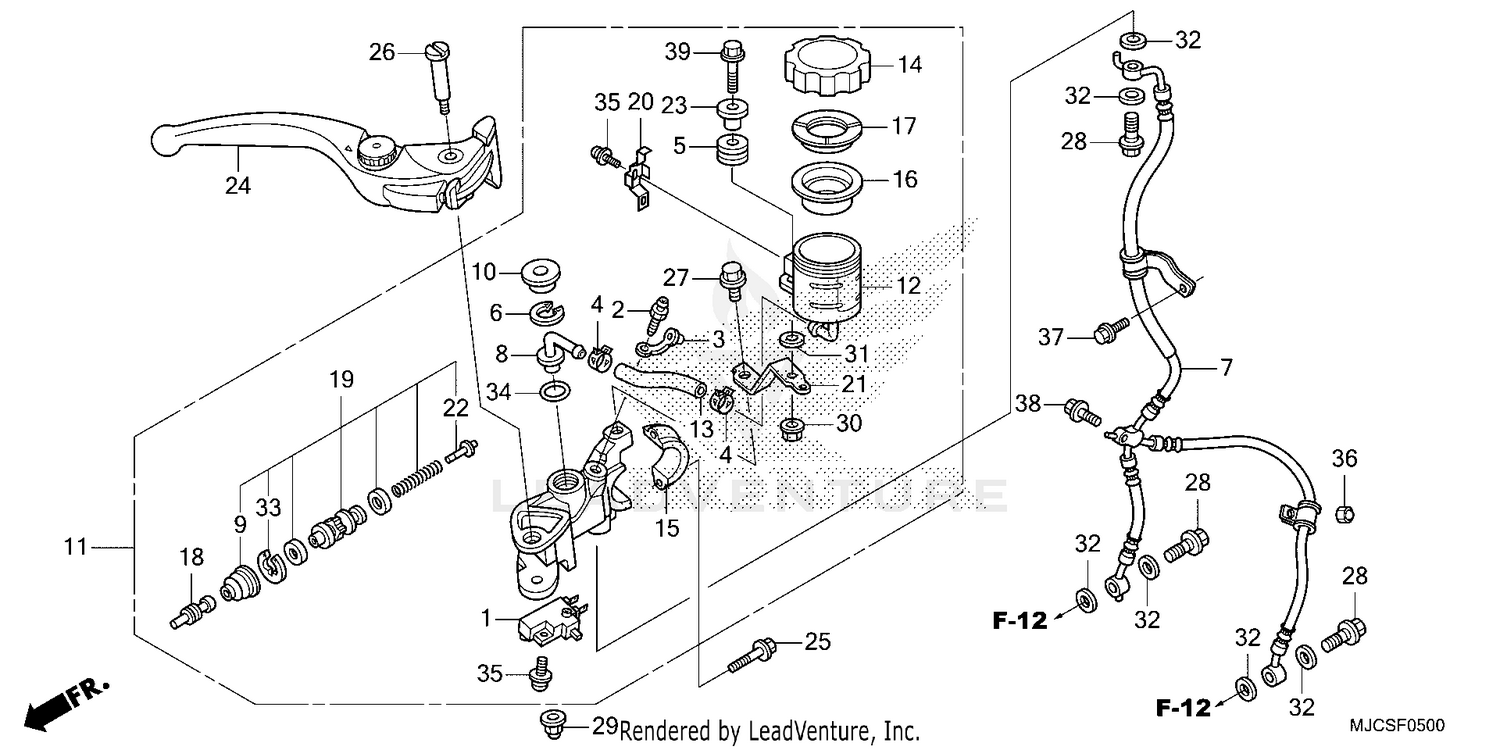

Front Brake Master Cylinder (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MGS-D31
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, OIL CUP
43516-MCJ-006
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP, RR. MASTER CYLINDER (FOR FR.)
43517-KS6-701
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, FR. BRAKE
45125-MJC-N31
|
$163.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONNECTOR, MASTER CYLINDER (NISSIN)
45503-KV3-006
|
$11.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT
45504-MCF-006
|
$13.56 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, DUST (NISSIN)
45505-KV3-006
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
MASTER CYLINDER SUB-ASSY., FR. BRAKE
45510-MJC-A01
|
$364.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUP, OIL
45511-MEL-D21
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE, MASTER CYLINDER OIL
45512-KV3-951
|
$6.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, OIL CUP
45513-MEL-D21
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, MASTER CYLINDER
45517-MFL-006
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
DIAPHRAGM
45520-300-000
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, DIAPHRAGM
45521-MJ6-006
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
ROD, PUSH
45525-MEL-016
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
MASTER CYLINDER SET
45530-MFJ-D01
|
$58.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, STOP
45535-MR8-901
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
STAY, FR. MASTER CYLINDER
45550-MFJ-D01
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
GUIDE, SPRING
46140-MFJ-D01
|
$9.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR (6.3X13)
50324-425-010
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
LEVER ASSY., R. HANDLE
53170-MEL-006
|
$63.67 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X22)
90101-MBZ-G00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HANDLE LEVER
90114-MCF-006
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X12)
90117-MR7-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
NUT, U (6MM)
90301-MG3-000
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER (6X16)
90473-147-000
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
CIRCLIP
90651-MCF-006
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#36
NUT, CAP (6MM)
94021-06070-0S
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (6X12) (L. SIDE ONLY)
96001-06012-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (6X18)
96001-06018-07
|
$1.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
BOLT, FLANGE (6X28)
96300-06028-07
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
