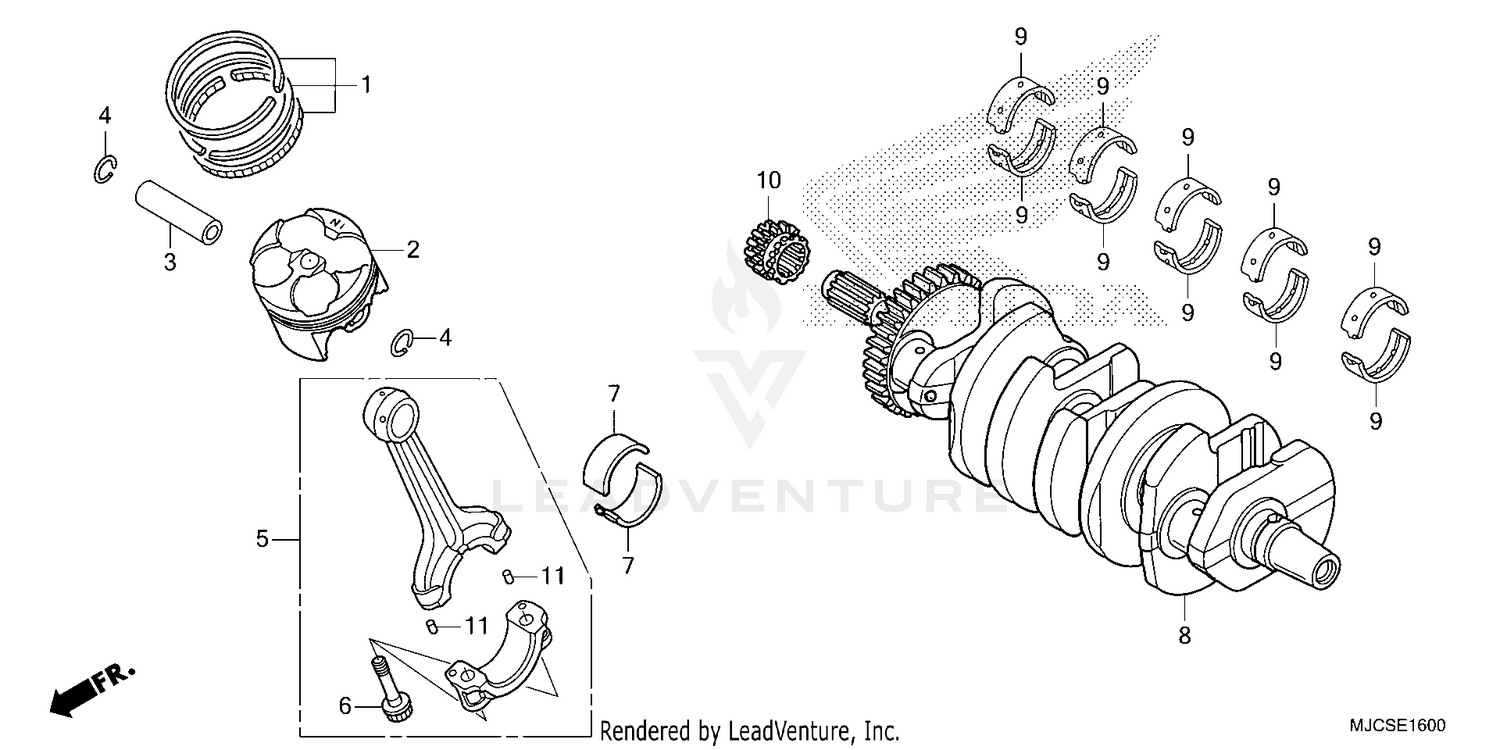

Crankshaft@piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING SET, PISTON (STD)
13011-MFJ-D00
|
$53.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON (STD)
13101-MFJ-A40
|
$140.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, PISTON
13111-MFJ-A40
|
$23.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP, PISTON PIN (15MM)
13112-MFJ-D00
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD ASSY., CONNECTING
13210-MFJ-D00
|
$231.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, CONNECTING ROD
13213-MEE-003
|
$7.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING A, CONNECTING ROD (BROWN)
13224-MFJ-D01
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING B, CONNECTING ROD (GREEN)
13225-MFJ-D01
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING C, CONNECTING ROD (YELLOW)
13226-MFJ-D01
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
CRANKSHAFT
13310-MFJ-D01
|
$1,174.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING A, CRANKSHAFT (BLACK)
13313-MFJ-D01
|
$13.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING B, CRANKSHAFT (BROWN)
13314-MFJ-D01
|
$13.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING C, CRANKSHAFT (GREEN)
13315-MFJ-D01
|
$13.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING D, CRANKSHAFT (YELLOW)
13316-MFJ-D01
|
$13.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING E, CRANKSHAFT (PINK)
13317-MFJ-D01
|
$13.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPROCKET, TIMING (17T)
14312-MEL-000
|
$39.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN C, DOWEL (4X6.5)
94303-04065
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
