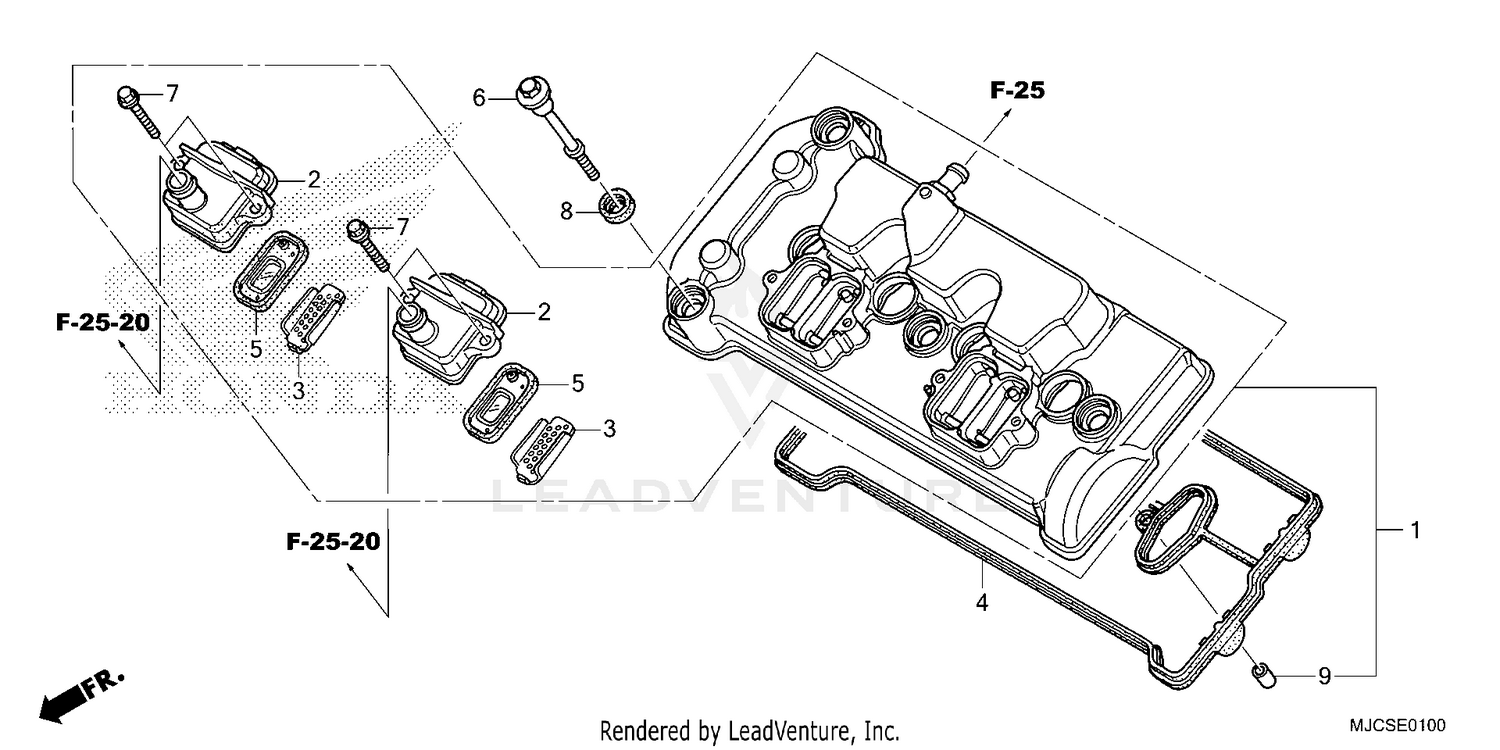

Cylinder Head Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CYLINDER HEAD
12310-MFJ-D02
|
$656.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, REED VALVE
12331-MBW-000
|
$45.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, PORT (AI)
12341-MAT-750
|
$15.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD COVER
12391-MFJ-D00
|
$67.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE, REED
18601-MCJ-003
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEAD COVER
90002-MY5-850
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X22) (NSHF)
90004-GHB-660
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, MOUNTING (Honda Code 3699139)
90543-MV9-670
|
$6.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
