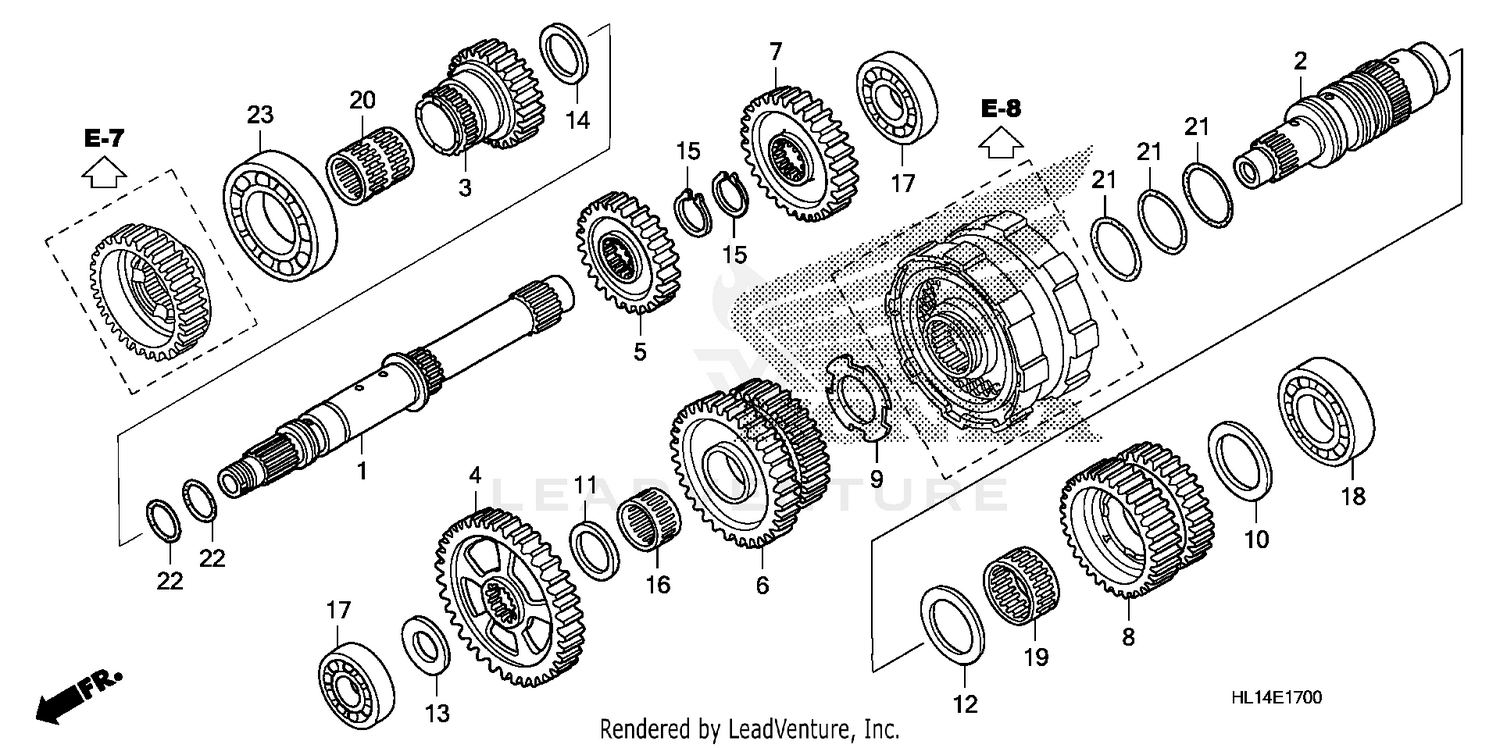

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT
23210-HN8-B40
|
$218.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT
23220-HN8-000
|
$193.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, MAINSHAFT FIRST (19T)
23401-HN8-000
|
$96.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, COUNTERSHAFT LOW (39T)
23411-HN8-000
|
$115.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, MAINSHAFT SECOND (24T)
23421-HN8-000
|
$100.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (34T/38T)
23431-HL1-A00
|
$155.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, MAINSHAFT THIRD (30T)
23441-HN8-B40
|
$134.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, COUNTERSHAFT THIRD (28T/38T)
23451-HN8-A60
|
$145.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPECIAL (25MM)
90406-HN8-000
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPECIAL (28MM)
90408-HN8-000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, THRUST (25MM)
90412-ZE5-000
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, THRUST (30X42X1)
90453-MM5-000
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPECIAL (20MM)
90454-HN8-000
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM, ROTARY COUNTER (22.2X32X1.40) (D)
90483-752-800
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP, SPECIAL (23MM)
90601-727-000
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, NEEDLE (25X29X17) (NTN)
91005-MCA-003
|
$11.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING, RADIAL BALL SPECIAL (6004)
91011-HN8-003
|
$23.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (60/28)
91014-752-621
|
$25.96 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, NEEDLE (30X35X17)
91022-MB0-003
|
$42.36 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE (22X26X34)
91026-HN8-003
|
$15.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING (31.2X1.9) (ARAI)
91307-PA9-003
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (18X1.9) (ARAI)
91361-ME5-003
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (6007)
96100-60070-00
|
$24.45 | ||
|
Unavailable |
|||
