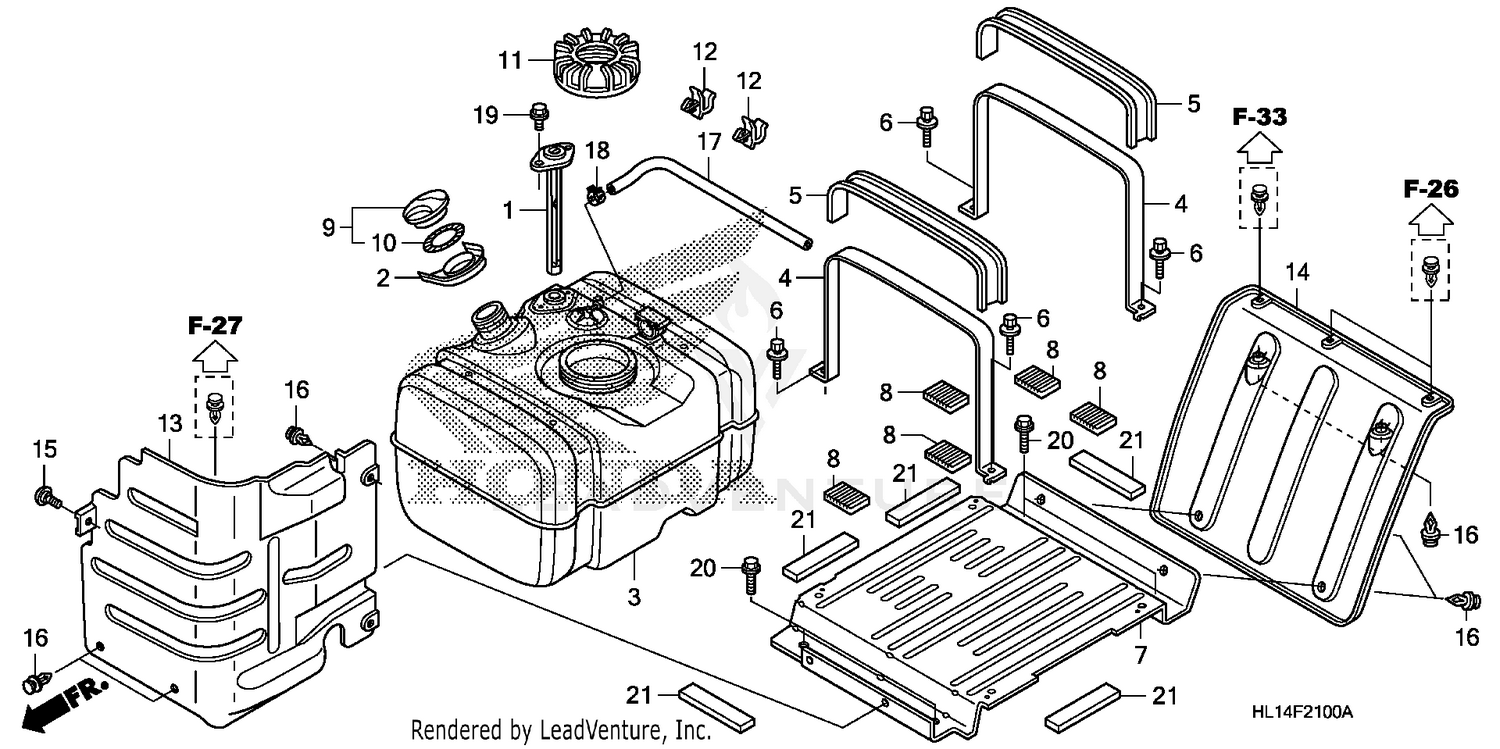

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
METER ASSY., FUEL
17504-HL1-A01
|
$60.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
TRAY, FUEL TANK
17507-HP5-600
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
TANK, FUEL
17510-HL1-A01
|
$1,501.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAND, FUEL TANK MOUNTING
17516-HL1-A00
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION, TANK BAND
17523-S84-300
|
$10.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT-WASHER (10X35)
17525-SM4-000
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUARD, FUEL TANK
17581-HL1-A00
|
$179.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION, RR. FUEL TANK
17612-MCL-000
|
$15.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP ASSY., FUEL TANK
17620-HL1-A01
|
$89.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, FUEL CAP
17624-HF7-000
|
$9.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FUEL PUMP MODULE LOCK
17719-S1A-E01
|
$47.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP, WIRE HARNESS
32171-GJ1-003
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, R. ENGINE SIDE
63502-HL1-A00
|
$19.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, RR. TANK
63506-HL1-A00
|
$22.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, SPLASH GUARD
90103-HC4-770
|
$2.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BULK HOSE, FUEL (5.5X3000) (5.3X350)
95001-55003-60M
|
$57.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP, TUBE (D10)
95002-41000-08
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (10X20)
95701-10020-08
|
$2.28 | ||
|
Unavailable |
|||
