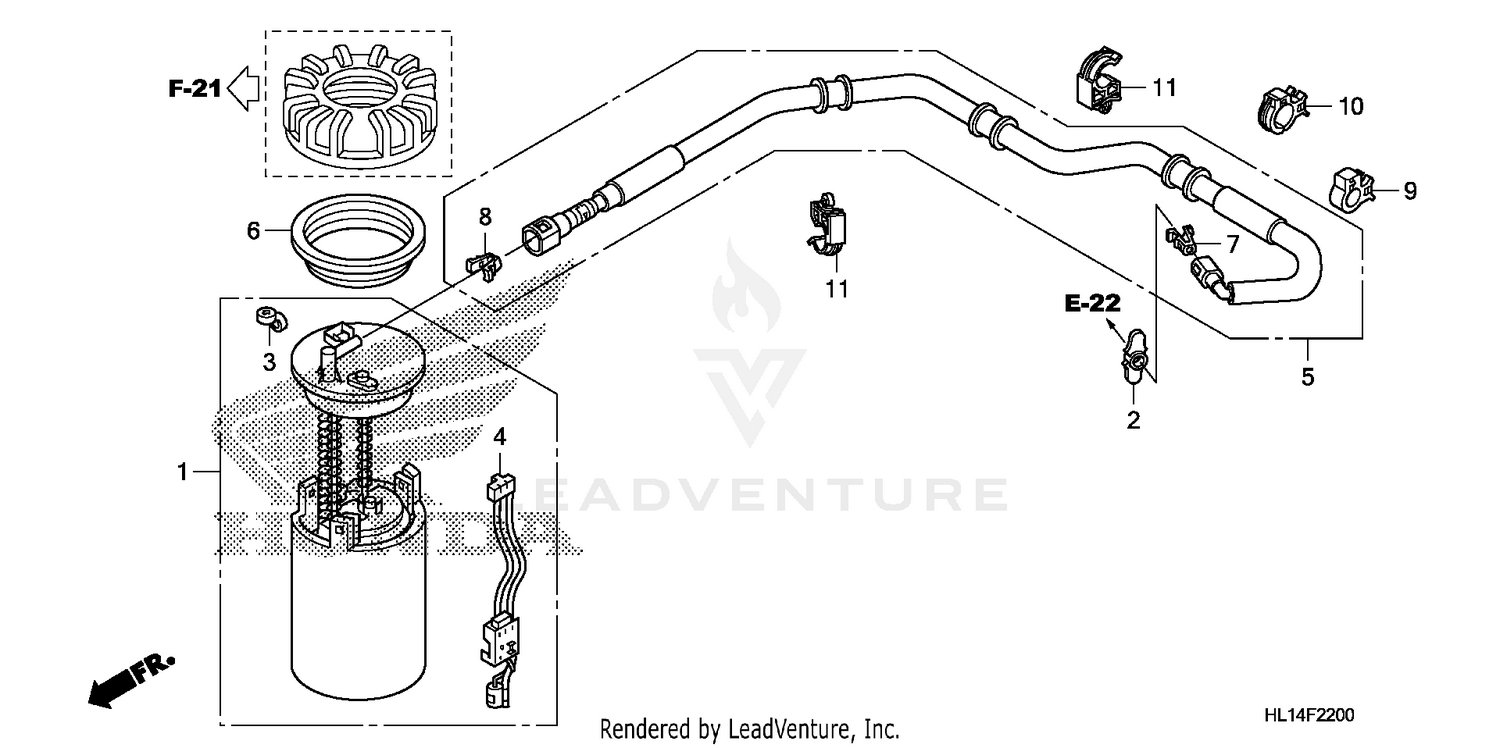

Fuel Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., FUEL (MSDS)
16700-HL1-A01
|
$343.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, FUEL JOINT
16719-HN8-A61
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, CONNECTOR
16719-HW1-670
|
$27.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
METER
16720-HL1-A00
|
$69.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE, FUEL FEED
17570-HL1-A01
|
$185.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, FUEL PUMP MODULE
17574-STK-A01
|
$27.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER (GREEN) (TOKAI)
17711-S0X-A31
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
RETAINER (ORANGE) (TOKAI)
17711-S0X-003
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP, CABLE (15MM)
90690-GHB-651
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP, CABLE (20MM)
90690-GHB-661
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, BREATHER TUBE
91592-SJA-003
|
$15.08 | ||
|
Available to order. Add to View Price |
|||
