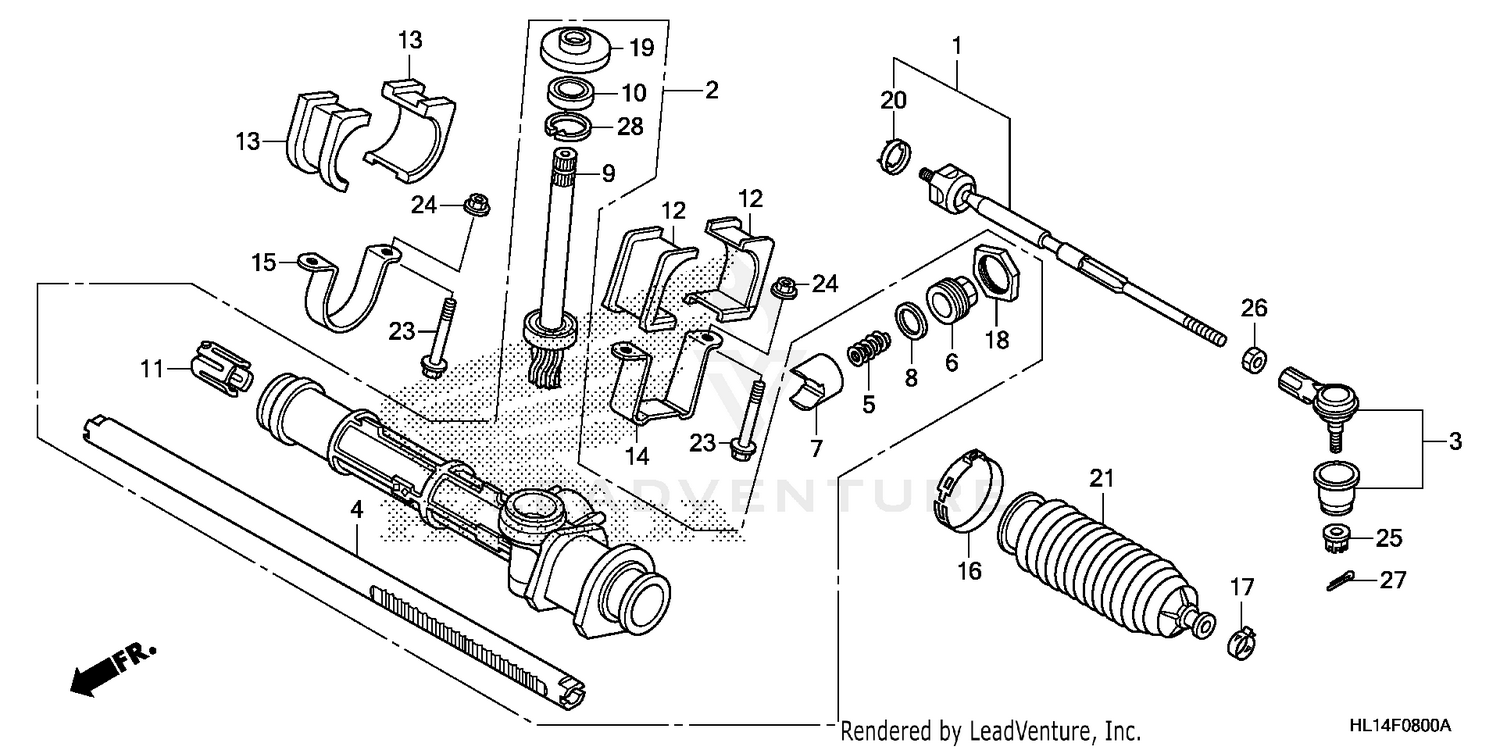

Steering Gear Box + Tie Rod Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
END SET, TIE ROD
53010-HL1-A01
|
$43.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOX, STEERING GEAR
53040-HL1-A01
|
$503.38 | ||
|
Available to order. Add to View Price |
|||
|
#3
END, TIE ROD
53157-HL1-A01
|
$45.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
RACK, STEERING
53402-HL1-A01
|
$121.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, RACK GUIDE PRESSURE
53413-SH3-003
|
$6.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, RACK GUIDE
53414-679-013
|
$32.77 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, STEERING RACK
53416-S3A-J01
|
$16.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, DISK
53418-SC2-003
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
PINION, STEERING
53421-HL1-A01
|
$54.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
DUST SEAL, STEERING PINION (ARAI)
53426-671-003
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH, RACK END
53430-SR3-000
|
$22.92 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR A, STEERING RACK
53435-HL1-A00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR B, STEERING RACK
53436-HL1-A00
|
$17.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET A, STEERING RACK
53437-HL1-A00
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET B, STEERING RACK
53438-HL1-A00
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, BELLOWS
53449-S3A-J01
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND, BELLOWS
53449-S3A-003
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, LOCK
53458-SE0-003
Superseded by 53458-S01-A51
|
$9.13 | ||
|
Unavailable |
|||
|
#18
NUT, LOCK
53458-S01-A51
|
$9.13 | ||
|
Unavailable |
|||
|
#19
COVER, PINION DUST
53502-S3A-J01
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, TIE ROD LOCK
53536-SR3-000
|
$7.63 | ||
|
Available to order. Add to View Price |
|||
|
#21
DUST SEAL, TIE ROD
53537-S3A-003
|
$16.78 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOOT, TIE ROD END
53546-SZ3-003
|
$24.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (10X70)
90128-GC5-000
|
$16.36 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, CASTLE (12MM)
90363-SF1-000
|
$11.48 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, HEX. (14MM)
94001-14280-0S
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, COTTER (3.0X45)
94201-30200
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#27
PIN, COTTER (3.0X45)
94201-30280
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#27
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#27
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#27
PIN, SPLIT (3.0X45)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#28
CIRCLIP (INNER) (35MM)
94520-35000
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
