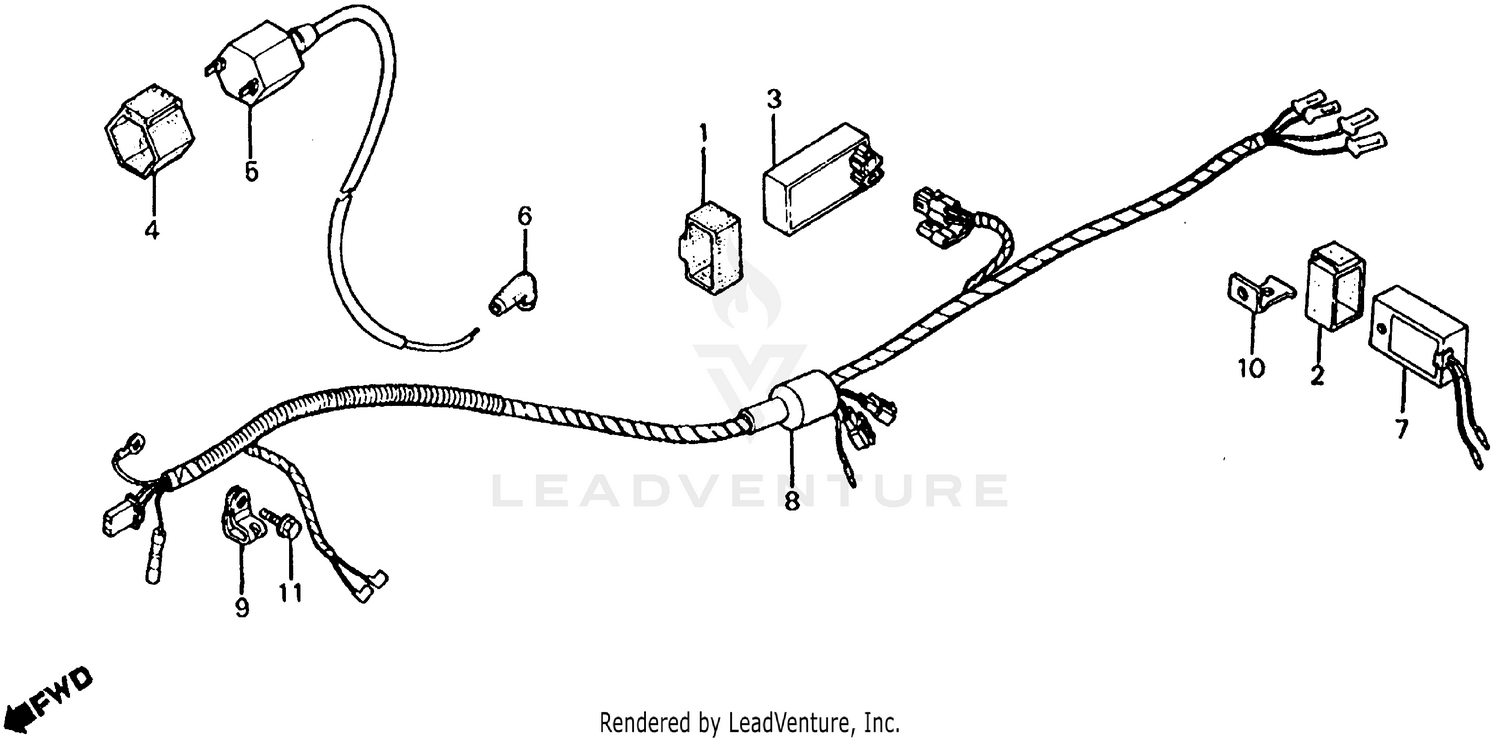

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, IGNITION CONTROL MODULE (CDI)
30401-HA0-000
Superseded by 30401-KYY-900
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, REGULATOR
30406-HA2-000
|
$4.11 | ||
|
Unavailable |
|||
|
#3
MODULE, IGNITION CONTROL (CDI)
30410-HA5-008
|
$137.79 | ||
|
Available to order. Add to View Price |
|||
|
#4
SUSPENSION, IGNITION COIL
30506-HA0-000
|
$7.14 | ||
|
Unavailable |
|||
|
#5
COIL, IGNITION
30510-HA5-000
Superseded by 30510-KT0-405
|
$93.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
COIL, IGNITION
30510-KT0-405
|
$93.69 | ||
|
Unavailable |
|||
|
#6
CAP ASSY,NOISE (S
30700-MA0-163
Superseded by 30700-MA0-004
|
$27.04 | ||
|
Unavailable |
|||
|
#6
CAP ASSY,NOISE (S
30700-965-003
Superseded by 30700-MA0-004
|
$27.04 | ||
|
Unavailable |
|||
|
#6
CAP ASSY,NOISE (S
30700-965-013
Superseded by 30700-MA0-004
|
$27.04 | ||
|
Unavailable |
|||
|
#7
REGULATOR, A.C. (SHINDENGEN)
31400-KG0-008
Superseded by 31410-HA5-671
|
$123.14 | ||
|
Available to order. Add to View Price |
|||
|
#7
REGULATOR, A.C. (SHINDENGEN)
31400-KJ2-670
Superseded by 31410-HA5-671
|
$123.14 | ||
|
Unavailable |
|||
|
#7
REGULATOR, A.C. (SHINDENGEN)
31410-HA5-671
|
$123.14 | ||
|
Unavailable |
|||
|
#8
WIRE HARNESS (NOT AVAILABLE)
32100-HA5-000
|
$99.72 | ||
|
Unavailable |
|||
|
#9
CLIP, HARNESS (NOT AVAILABLE)
32113-HA2-000
|
$2.79 | ||
|
Unavailable |
|||
|
#10
STAY, REGULATOR (NOT AVAILABLE)
33735-HA5-000
|
$5.62 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE (6X12)
96300-06012-08
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X12)
96500-06012-08
Superseded by 96300-06012-08
|
$1.88 | ||
|
Unavailable |
|||
