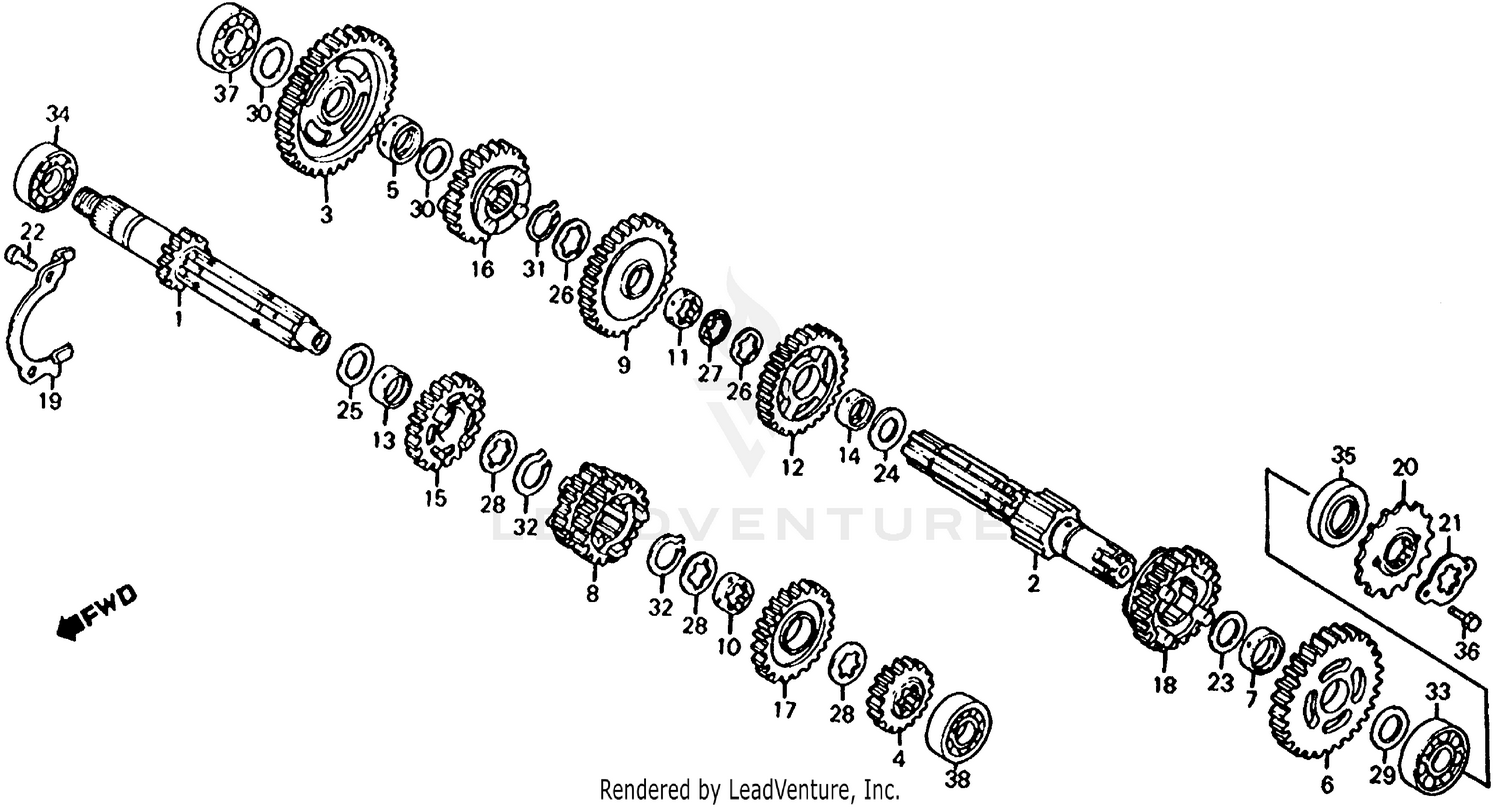

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (NOT AVAILABLE)
23211-HA5-000
|
$112.24 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)
23220-HA5-000
|
$101.52 | ||
|
Unavailable |
|||
|
#3
GEAR, COUNTERSHAFT LOW (44T)
23411-HA5-000
Superseded by 23411-HA5-670
|
$96.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, COUNTERSHAFT LOW (44T)
23411-HA5-670
|
$96.83 | ||
|
Unavailable |
|||
|
#4
GEAR, MAINSHAFT SECOND (20T) (NOT AVAILABLE)
23421-HA5-000
|
$33.55 | ||
|
Unavailable |
|||
|
#5
BUSH, COUNTERSHAFT LOW (20MM)
23422-HA5-000
Superseded by 23422-HA5-670
|
$12.32 | ||
|
Unavailable |
|||
|
#5
BUSH, COUNTERSHAFT LOW (20MM)
23422-HA5-670
|
$12.32 | ||
|
Unavailable |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (41T) (NOT AVAILABLE)
23431-HA5-000
Superseded by 23431-HA5-670
|
$59.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (41T) (NOT AVAILABLE)
23431-HA5-670
|
$59.33 | ||
|
Unavailable |
|||
|
#7
BUSH, COUNTERSHAFT SECOND (NOT AVAILABLE)
23432-HA5-000
Superseded by 23432-HA5-670
|
$12.32 | ||
|
Unavailable |
|||
|
#8
GEAR, MAINSHAFT THIRD & FOURTH (23T/26T)
23441-HA5-000
Superseded by 23441-HA5-670
|
$108.53 | ||
|
Unavailable |
|||
|
#8
GEAR, MAINSHAFT THIRD & FOURTH (23T/26T)
23441-HA5-670
|
$108.53 | ||
|
Unavailable |
|||
|
#9
GEAR, COUNTERSHAFT THIRD (37T) (NOT AVAILABLE)
23451-HA5-000
Superseded by 23451-HA5-670
|
$65.74 | ||
|
Unavailable |
|||
|
#10
BUSH, SPLINE MAINSHAFT SIXTH (NOT AVAILABLE)
23452-HA5-000
Superseded by 23452-HA5-670
|
$11.79 | ||
|
Unavailable |
|||
|
#10
BUSH, SPLINE MAINSHAFT SIXTH (NOT AVAILABLE)
23452-HA5-670
|
$11.79 | ||
|
Unavailable |
|||
|
#11
BUSH, SPLINE COUNTERSHAFT THIRD (NOT AVAILABLE)
23453-HA5-000
Superseded by 23453-HA5-670
|
$12.32 | ||
|
Unavailable |
|||
|
#12
GEAR, COUNTERSHAFT FOURTH (34T)
23471-HA5-000
Superseded by 23471-HA5-670
|
$86.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, COUNTERSHAFT FOURTH (34T)
23471-HA5-670
|
$86.30 | ||
|
Unavailable |
|||
|
#13
BUSH, MAINSHAFT FIFTH (NOT AVAILABLE)
23472-HA5-000
Superseded by 23472-HA5-670
|
$11.79 | ||
|
Unavailable |
|||
|
#14
BUSH, COUNTERSHAFT FOURTH (NOT AVAILABLE)
23473-HA5-000
Superseded by 23473-HA5-670
|
$12.02 | ||
|
Unavailable |
|||
|
#15
GEAR, MAINSHAFT FIFTH (29T)
23481-HA5-000
Superseded by 23481-HA5-670
|
$61.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, MAINSHAFT FIFTH (29T)
23481-HA5-670
|
$61.18 | ||
|
Unavailable |
|||
|
#16
GEAR, COUNTERSHAFT FIFTH (32T)
23491-HA5-000
Superseded by 23491-HA5-670
|
$100.33 | ||
|
Unavailable |
|||
|
#16
GEAR, COUNTERSHAFT FIFTH (32T)
23491-HA5-670
|
$100.33 | ||
|
Unavailable |
|||
|
#17
GEAR, MAINSHAFT SIXTH (31T) (NOT AVAILABLE)
23501-HA5-000
Superseded by 23501-HA5-671
|
$45.20 | ||
|
Unavailable |
|||
|
#17
GEAR, MAINSHAFT SIXTH (31T) (NOT AVAILABLE)
23501-HA5-670
Superseded by 23501-HA5-671
|
$45.20 | ||
|
Unavailable |
|||
|
#17
GEAR, MAINSHAFT SIXTH (31T) (NOT AVAILABLE)
23501-HA5-671
|
$45.20 | ||
|
Unavailable |
|||
|
#18
GEAR, COUNTERSHAFT SIXTH (29T) (NOT AVAILABLE)
23511-HA5-000
Superseded by 23511-HA5-670
|
$70.99 | ||
|
Unavailable |
|||
|
#18
GEAR, COUNTERSHAFT SIXTH (29T) (NOT AVAILABLE)
23511-HA5-670
|
$70.99 | ||
|
Unavailable |
|||
|
#19
PLATE, BEARING SETTING
23521-HA0-000
|
$16.96 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPROCKET, DRIVE (13T)
23801-HA5-000
|
$37.27 | ||
|
Unavailable |
|||
|
#21
PLATE, FIXING
23811-430-000
Superseded by 23811-HA5-670
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE, FIXING
23811-HA5-670
|
$6.24 | ||
|
Unavailable |
|||
|
#22
BOLT, SOCKET (6X16)
90001-KF0-000
Superseded by 96600-06016-00
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SOCKET (6X16)
96600-06016-00
|
$1.82 | ||
|
Unavailable |
|||
|
#23
WASHER, THRUST (24MM)
90402-HA5-000
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, THRUST (25MM)
90456-MA6-000
|
$3.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, THRUST (22MM)
90456-323-000
|
$3.71 | ||
|
Unavailable |
|||
|
#26
WASHER B, THRUST (25MM)
90461-286-000
|
$3.12 | ||
|
Unavailable |
|||
|
#27
WASHER, LOCK (25MM)
90462-323-000
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPLINE (22MM)
90464-KE8-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER B, THRUST (22MM)
90455-ML7-000
|
$6.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER B, THRUST (22MM) (BLUE)
90502-360-000
Superseded by 90455-ML7-000
|
$6.11 | ||
|
Unavailable |
|||
|
#30
WASHER, THRUST (20X1.00)
90454-428-000
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, THRUST (20X1.00)
90554-700-000
Superseded by 90454-428-000
|
$3.04 | ||
|
Unavailable |
|||
|
#31
CIRCLIP (25MM)
90601-107-000
|
$4.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
CIRCLIP (OUTER) (22MM)
90601-329-000
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, SPECIAL (22) (KOYO)
91002-HA5-003
|
$23.56 | ||
|
Unavailable |
|||
|
#34
BEARING, RADIAL BALL (62/22)
91005-KF0-008
Superseded by 91005-KS4-003
|
$49.00 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, RADIAL BALL (62/22)
91005-KS4-003
|
$49.00 | ||
|
Unavailable |
|||
|
#35
OIL SEAL (22X35X8)
91205-HA5-000
|
$6.40 | ||
|
Unavailable |
|||
|
#36
BOLT, HEX. (6X10)
92000-06010
Superseded by 92101-06010-0A
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#37
BEARING, RADIAL BALL (6204)
96100-62040-00
|
$14.82 | ||
|
Unavailable |
|||
|
#38
BEARING, RADIAL BALL (6203)
96140-62030-00
|
$22.52 | ||
|
Available to order. Add to View Price |
|||
