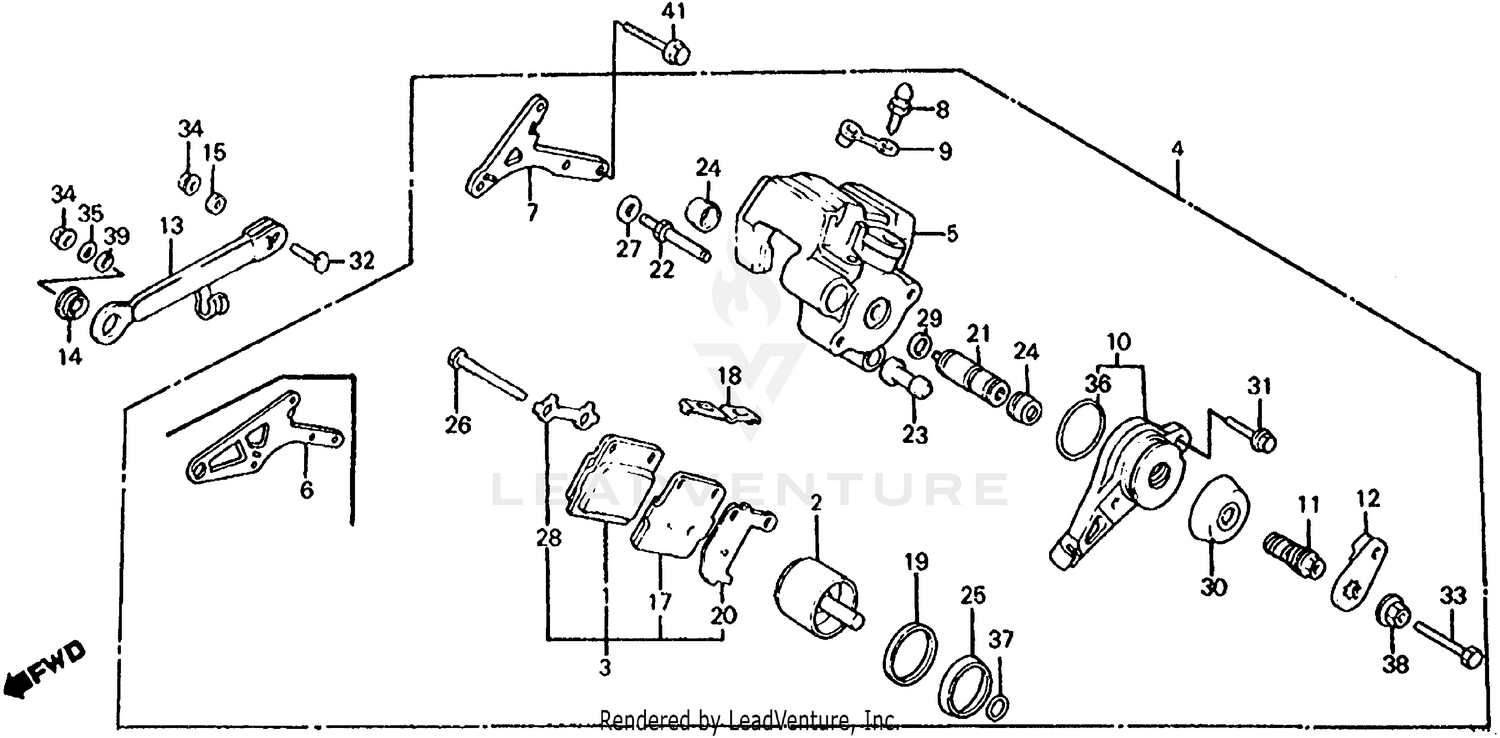

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
PAD SET, RR. (NISSIN)
431A0-965-000
Superseded by 43120-HA5-305
|
$51.59 | ||
|
Available to order. Add to View Price |
|||
|
#NI
PAD SET, RR. (NISSIN)
43120-965-000
Superseded by 43120-HA5-305
|
$51.59 | ||
|
Unavailable |
|||
|
#NI
PAD SET, RR. (NISSIN)
43120-HA5-305
|
$51.59 | ||
|
Unavailable |
|||
|
#1
PAD, RR. (NOT AVAILABLE)
43106-961-006
|
$35.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON (NISSIN)
43109-HC0-681
|
$132.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON (NISSIN)
43109-961-006
Superseded by 43109-HC0-681
|
$132.51 | ||
|
Unavailable |
|||
|
#3
PAD SET, RR. (NISSIN)
43120-965-000
Superseded by 43120-HA5-305
|
$51.59 | ||
|
Unavailable |
|||
|
#3
PAD SET, RR. (NISSIN)
43120-HA5-305
|
$51.59 | ||
|
Unavailable |
|||
|
#4
CALIPER ASSY., RR. (NOT AVAILABLE)
43200-HA5-008
|
$327.03 | ||
|
Unavailable |
|||
|
#5
CALIPER, RR.
43201-HA5-006
Superseded by 43201-HA5-026
|
$170.84 | ||
|
Unavailable |
|||
|
#5
CALIPER, RR.
43201-HA5-016
Superseded by 43201-HA5-026
|
$170.84 | ||
|
Unavailable |
|||
|
#5
CALIPER, RR.
43201-HA5-026
|
$170.84 | ||
|
Unavailable |
|||
|
#6
BRACKET, RR. (NOT AVAILABLE)
43210-HA5-006
|
$28.94 | ||
|
Unavailable |
|||
|
#8
SCREW, BLEEDER
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRAKE, PARKING
43360-HA5-006
|
$47.22 | ||
|
Unavailable |
|||
|
#11
SHAFT, L.
43361-961-006
|
$21.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
ARM
43362-965-006
|
$14.07 | ||
|
Unavailable |
|||
|
#13
LINK, TORQUE (NOT AVAILABLE)
43431-HA5-000
|
$29.80 | ||
|
Unavailable |
|||
|
#14
BUSH, TORQUE LINK (NOT AVAILABLE)
43482-HA5-000
|
$4.46 | ||
|
Unavailable |
|||
|
#15
BUSH, TORQUE LINK (NOT AVAILABLE)
43482-964-000
|
$3.58 | ||
|
Unavailable |
|||
|
#17
PAD (NOT AVAILABLE)
45105-961-006
|
$26.52 | ||
|
Unavailable |
|||
|
#18
SPRING, PAD
45108-166-006
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
DUST SEAL
45109-961-006
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM, L.
45114-GE3-601
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, SLIDE
45115-166-006
|
$20.93 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, BOLT
45131-166-016
|
$9.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSH, PIN
45132-166-016
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOOT, PIN
45133-166-016
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SEAL, PISTON
45209-961-006
|
$7.56 | ||
|
Unavailable |
|||
|
#26
PIN, HANGER
45215-166-006
|
$16.36 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, WAVE (NISSIN)
45216-166-006
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, TONGUED
45217-166-006
|
$6.69 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, CONICAL SPRING
45218-166-006
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOOT SEAL, MASTER CYLINDER
46184-611-000
|
$12.85 | ||
|
Available to order. Add to View Price |
|||
|
#30
DUST SEAL, MASTER CYLINDER
46184-611-010
Superseded by 46184-611-000
|
$12.85 | ||
|
Unavailable |
|||
|
#31
BOLT (8X25)
90116-410-006
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, TORQUE LINK
90116-964-000
|
$3.88 | ||
|
Unavailable |
|||
|
#33
BOLT (8X40)
90126-961-006
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, FLANGE (8MM)
90309-KF0-003
Superseded by 90309-428-731
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
NUT, FLANGE (8MM)
90309-428-731
|
$4.20 | ||
|
Unavailable |
|||
|
#35
WASHER A, HANDLE HOLDER SETTING
90505-425-000
Superseded by 90524-030-000
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER A, HANDLE HOLDER SETTING
90524-030-000
|
$1.58 | ||
|
Unavailable |
|||
|
#36
O-RING (31.2X1.9)
91357-964-006
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING (7.8X1.9)
91358-964-006
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT-WASHER (8MM)
94071-08080
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, SPRING (8MM)
94111-10000
|
$1.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
BOLT, FLANGE (8X32)
96400-08032-07
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
