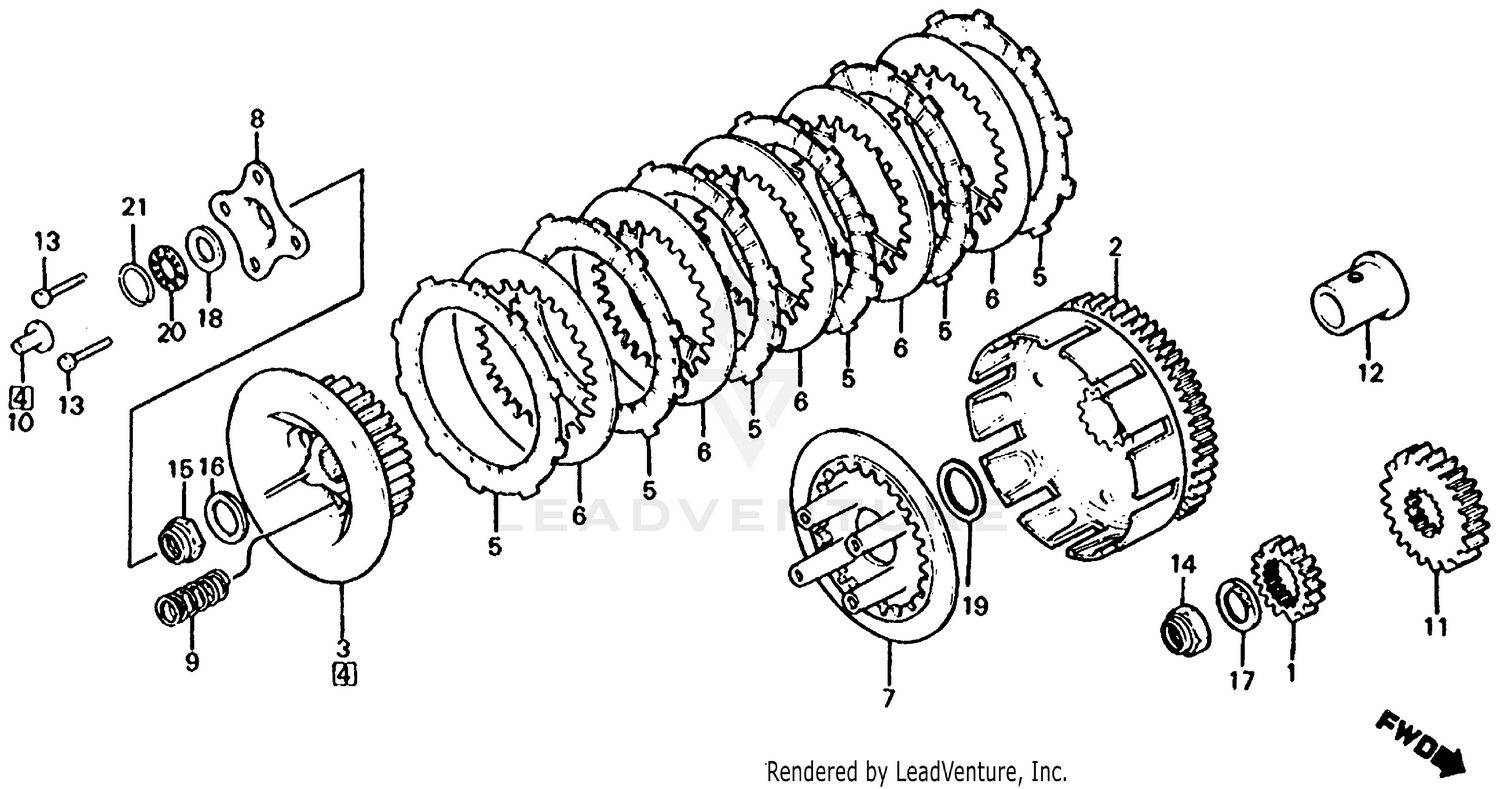

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, OIL PUMP DRIVE (17T)
15130-KF0-000
|
$74.01 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH OUTER
22100-HA5-000
Superseded by 22100-HA5-010
|
$542.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH (OUTER)
22100-HA5-010
|
$542.58 | ||
|
Unavailable |
|||
|
#3
CENTER, CLUTCH
22120-KF0-010
Superseded by 22120-KN5-670
|
$97.42 | ||
|
Unavailable |
|||
|
#3
CENTER, CLUTCH
22120-KN5-670
|
$97.42 | ||
|
Unavailable |
|||
|
#4
PIN SET, CLUTCH LIFTER
22130-HA5-305
|
$74.33 | ||
|
Unavailable |
|||
|
#5
DISK, CLUTCH FRICTION
22201-HA5-670
Superseded by 22201-KAE-000
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DISK, CLUTCH FRICTION
22201-KAE-000
|
$23.49 | ||
|
Unavailable |
|||
|
#5
DISK, CLUTCH FRICTION
22201-KA3-712
Superseded by 22201-KAE-000
|
$23.49 | ||
|
Unavailable |
|||
|
#6
PLATE, CLUTCH
22321-KF0-000
Superseded by 22321-KF0-770
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH
22321-KF0-770
|
$18.07 | ||
|
Unavailable |
|||
|
#7
PLATE, CLUTCH PRESSURE
22350-KF0-000
Superseded by 22350-KW3-000
|
$86.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH PRESSURE
22350-KW3-000
|
$86.27 | ||
|
Unavailable |
|||
|
#8
PLATE, CLUTCH LIFTER
22361-KF0-000
|
$24.19 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, CLUTCH
22401-HA5-003
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, CLUTCH LIFTER
22820-KF0-000
|
$14.91 | ||
|
Unavailable |
|||
|
#11
GEAR, PRIMARY DRIVE (24T)
23121-HA5-000
|
$102.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH (22MM)
23213-HA5-000
|
$25.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. (6X28)
90001-HA5-000
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, LOCK (20MM)
90235-HA5-000
Superseded by 90235-HA5-670
|
$13.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, LOCK (20MM)
90235-HA5-670
|
$13.93 | ||
|
Unavailable |
|||
|
#15
NUT, LOCK (18MM)
90236-HA0-000
|
$12.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (18MM)
90432-KE5-000
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING (20MM)
90432-426-000
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, THRUST (12MM) (TOYO)
90452-147-003
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, THRUST (22X45X0.8)
90458-KE8-000
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE (12MM)
91001-147-003
|
$15.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE (12MM) (TOMUSON)
91001-147-006
|
$15.24 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, NEEDLE THRUST BEARING (12MM)
91012-KF0-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
