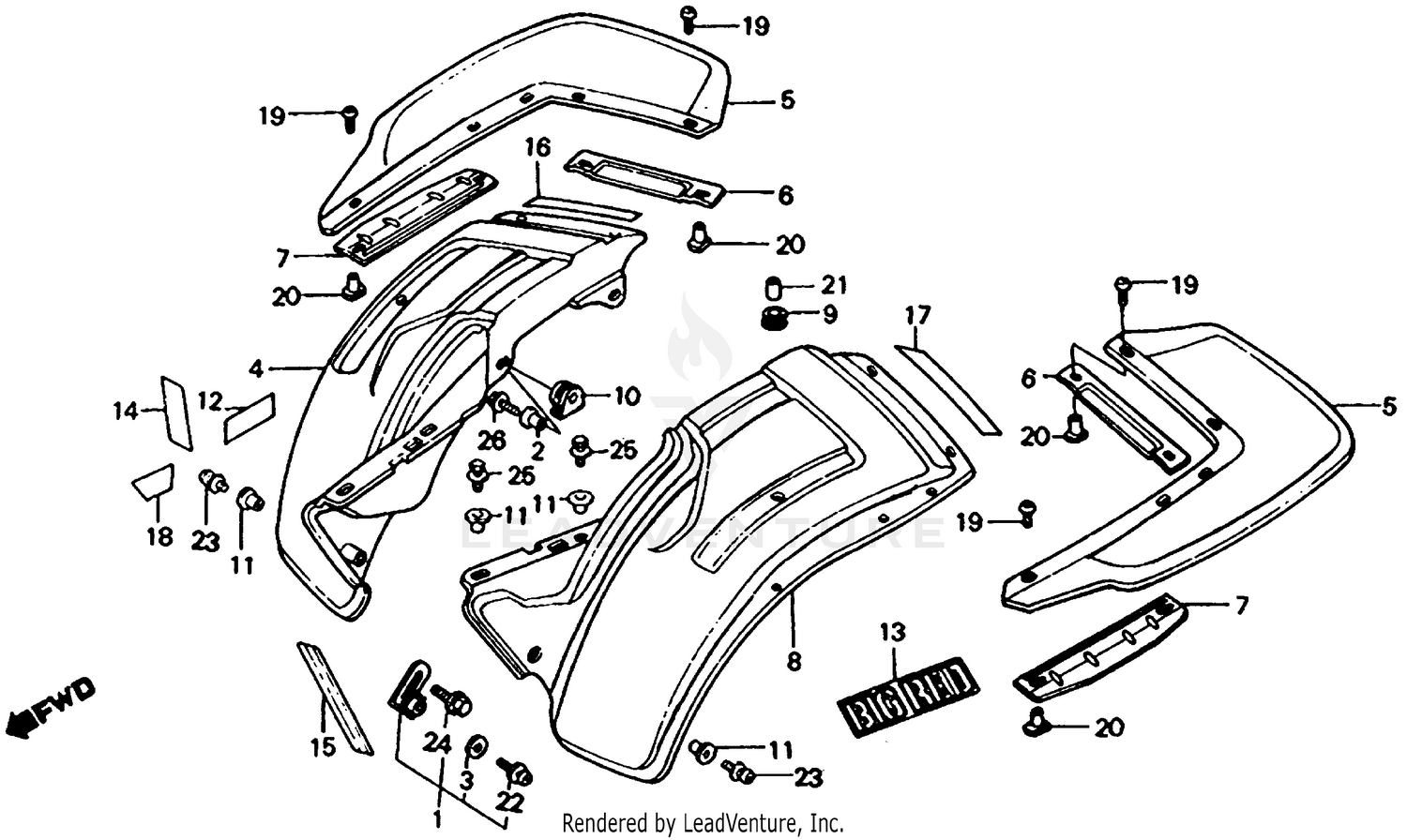

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT SET, RR. FENDER
50010-969-305
|
$21.65 | ||
|
Unavailable |
|||
|
#2
COLLAR, FENDER SETTING
61104-444-000
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER (NOT AVAILABLE)
71979-538-940
|
$2.04 | ||
|
Unavailable |
|||
|
#4
FENDER, R. RR.
80100-958-684
|
$188.77 | ||
|
Unavailable |
|||
|
#5
SPLASH GUARD, RR. (NOT AVAILABLE)
80111-958-680
|
$26.59 | ||
|
Unavailable |
|||
|
#6
PLATE, RR. FENDER
80112-VM3-000
Superseded by 80112-VM3-680
|
$10.29 | ||
|
Unavailable |
|||
|
#7
PLATE, RR. FENDER SIDE (NOT AVAILABLE)
80113-958-680
|
$17.01 | ||
|
Unavailable |
|||
|
#8
FENDER, L. RR. *R109* (PASSION RED)
80150-958-682
|
$181.07 | ||
|
Unavailable |
|||
|
#9
RUBBER, RR. FENDER
80152-958-680
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET, RR. FENDER (NOT AVAILABLE)
80161-958-680
|
$3.94 | ||
|
Unavailable |
|||
|
#11
COLLAR
84706-415-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
LABEL, R. SIDE (NOT AVAILABLE)
87121-969-000
|
$6.94 | ||
|
Unavailable |
|||
|
#13
LABEL, L. SIDE (NOT AVAILABLE)
87122-969-000
|
$6.79 | ||
|
Unavailable |
|||
|
#14
STRIPE, R. SIDE (NOT AVAILABLE)
87126-969-000
|
$5.22 | ||
|
Unavailable |
|||
|
#15
STRIPE, L. SIDE (NOT AVAILABLE)
87127-969-000
|
$5.41 | ||
|
Unavailable |
|||
|
#16
EMBLEM, R. RR. FENDER (NOT AVAILABLE)
87521-969-000
|
$18.68 | ||
|
Unavailable |
|||
|
#17
EMBLEM, L. RR. FENDER (NOT AVAILABLE)
87525-969-000
|
$19.09 | ||
|
Unavailable |
|||
|
#18
LABEL, TIRE CAUTION (NOT AVAILABLE)
87533-969-000
|
$7.95 | ||
|
Unavailable |
|||
|
#19
SCREW, TORUS (6X7)
90102-673-003
|
$2.95 | ||
|
Unavailable |
|||
|
#20
NUT, SPECIAL (6MM)
90302-958-680
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR (8MM)
90324-449-000
|
$2.97 | ||
|
Unavailable |
|||
|
#22
SCREW-WASHER (6X10)
93892-06010-08
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW-WASHER (6X16)
93892-06016-08
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X12)
95700-06012-08
Superseded by 95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (6X14)
95700-06014-08
Superseded by 95701-06014-08
|
$1.70 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (6X14)
95701-06014-08
|
$1.70 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (6X25)
95700-06025-08
|
$1.88 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (6X25)
95701-06025-08
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
