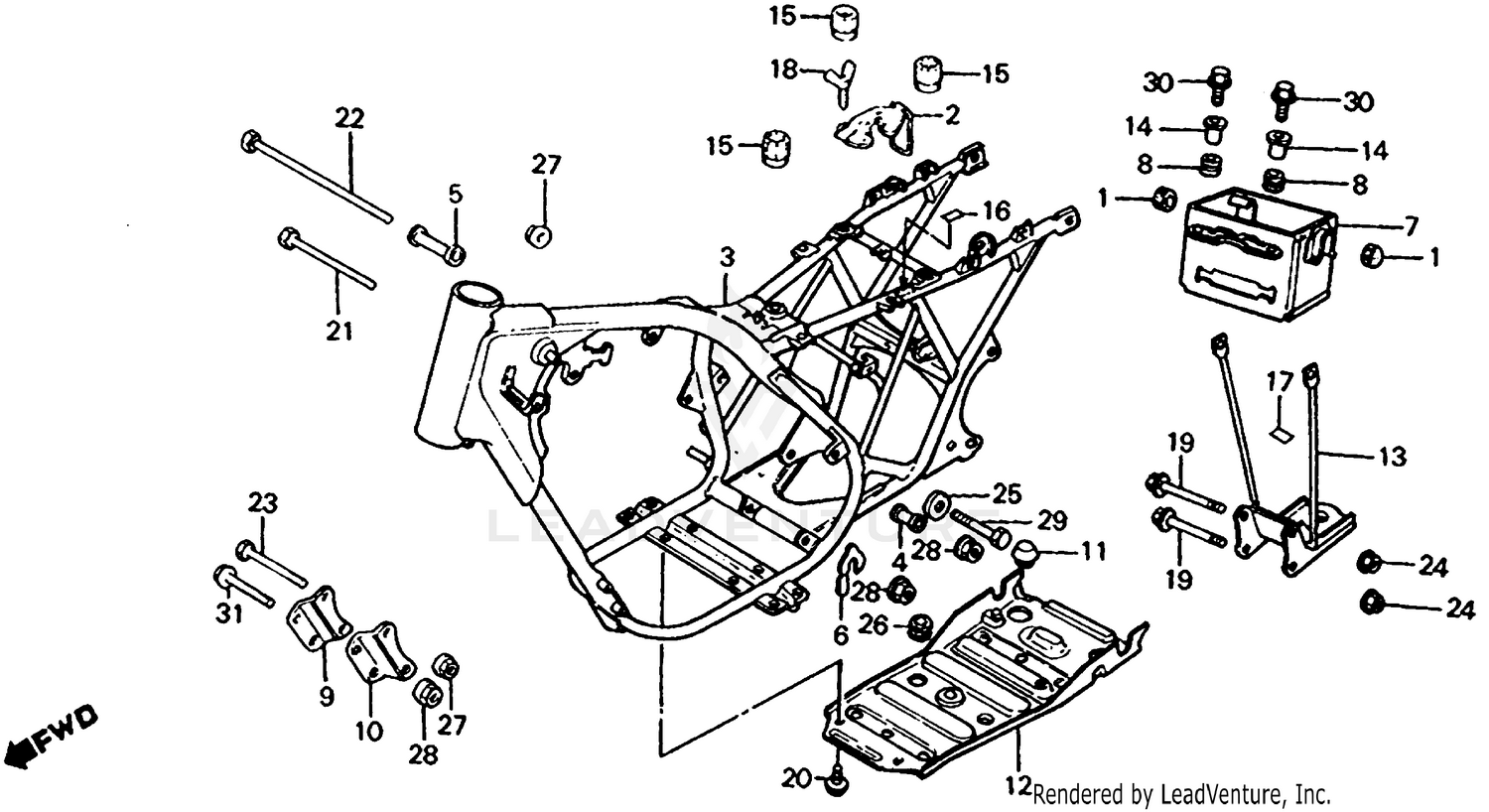

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, FR. TANK
17611-437-000
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER, BATTERY BOX (NOT AVAILABLE)
31512-958-680
|
$20.44 | ||
|
Unavailable |
|||
|
#3
FRAME
50100-969-000
|
$1,659.95 | ||
|
Unavailable |
|||
|
#4
COLLAR, L. ENGINE MOUNTING (NOT AVAILABLE)
50250-958-680
|
$9.74 | ||
|
Unavailable |
|||
|
#5
COLLAR, R. ENGINE MOUNTING (NOT AVAILABLE)
50252-958-680
|
$12.88 | ||
|
Unavailable |
|||
|
#6
WASHER, ENGINE HANGER (LOWER) (NOT AVAILABLE)
50253-958-680
|
$2.77 | ||
|
Unavailable |
|||
|
#7
BOX, BATTERY
50325-969-000
|
$108.71 | ||
|
Unavailable |
|||
|
#8
RUBBER, BATTERY BOX MOUNTING (NOT AVAILABLE)
50329-968-000
|
$3.35 | ||
|
Unavailable |
|||
|
#9
HANGER, R. ENGINE
50351-958-680
|
$24.15 | ||
|
Unavailable |
|||
|
#10
HANGER, L. ENGINE
50352-958-680
|
$18.77 | ||
|
Unavailable |
|||
|
#11
RUBBER A, STOPPER
50352-969-000
|
$3.78 | ||
|
Unavailable |
|||
|
#12
PLATE, ENGINE PROTECTOR
50355-969-000
|
$91.22 | ||
|
Unavailable |
|||
|
#13
HITCH, TRAILER
50810-969-000
|
$78.63 | ||
|
Unavailable |
|||
|
#14
COLLAR, FR. FENDER (WHITE)
61104-357-000
Superseded by 61104-428-010
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, FR. FENDER (WHITE)
61104-428-000
Superseded by 61104-428-010
|
$5.29 | ||
|
Unavailable |
|||
|
#14
COLLAR, RR. FENDER
61105-428-000
|
$4.03 | ||
|
Unavailable |
|||
|
#15
RUBBER, SEAT SETTING
77207-HA0-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER, SEAT SETTING
77207-958-670
Superseded by 77207-HA0-000
|
$8.96 | ||
|
Unavailable |
|||
|
#16
LABEL, MAIN FUSE (10A) (NOT AVAILABLE)
87136-969-000
|
$1.95 | ||
|
Unavailable |
|||
|
#17
LABEL, TRAILER HITCH (NOT AVAILABLE)
87508-958-680
|
$2.39 | ||
|
Unavailable |
|||
|
#18
BOLT, WING
90105-958-680
Superseded by 90105-958-405
|
$3.59 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (10X90)
90107-969-000
|
$13.41 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X12)
90118-958-003
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEX. (10X115)
90125-958-000
|
$9.31 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. (10X240)
90135-958-000
|
$13.84 | ||
|
Unavailable |
|||
|
#23
BOLT, HEX. (8X85)
90157-437-000
|
$3.74 | ||
|
Unavailable |
|||
|
#24
NUT, AXLE (10MM)
90304-GA6-003
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLAIN (8.5X22X2.3)
90509-642-000
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#26
RUBBER, CONTROL BOX
90852-898-000
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEX. (8X60)
95300-08060-00
Superseded by 95301-08060-00
|
$1.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X25)
95700-06025-08
|
$1.88 | ||
|
Unavailable |
|||
|
#30
BOLT, FLANGE (6X25)
95701-06025-08
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (10X80)
95800-10080-00
Superseded by 95801-10080-00
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (10X80)
95801-10080-00
|
$3.58 | ||
|
Unavailable |
|||
