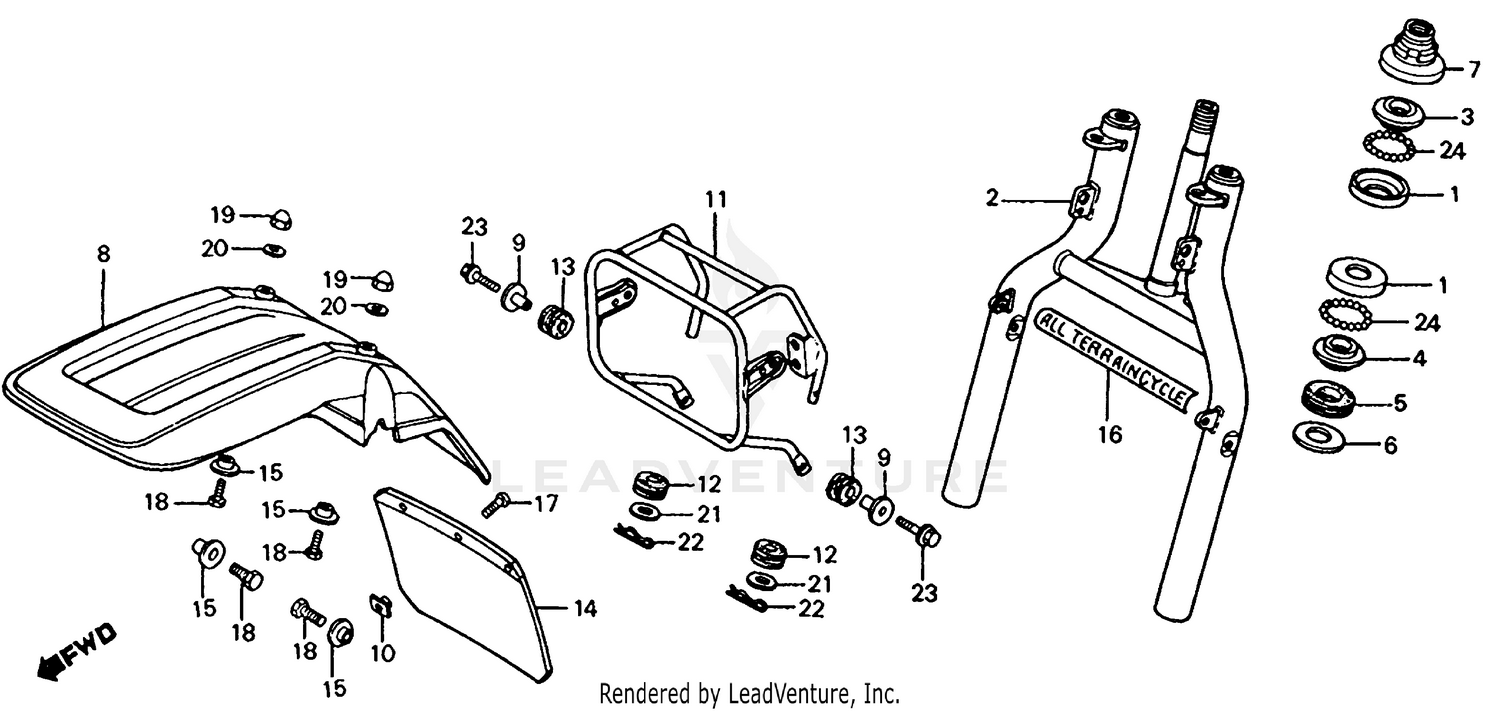

Front Fork + Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RACE, STEERING BALL
50301-041-000
Superseded by 50301-041-010
|
$15.02 | ||
|
Available to order. Add to View Price |
|||
|
#1
RACE, STEERING TOP BALL
50301-041-010
|
$15.02 | ||
|
Unavailable |
|||
|
#2
FORK, FR. (NOT AVAILABLE)
51400-958-680
Superseded by 51400-958-682
|
$393.05 | ||
|
Unavailable |
|||
|
#2
FORK, FR. (NOT AVAILABLE)
51400-958-681
Superseded by 51400-958-682
|
$393.05 | ||
|
Unavailable |
|||
|
#2
FORK, FR. (NOT AVAILABLE)
51400-958-682
|
$393.05 | ||
|
Unavailable |
|||
|
#3
RACE, STEERING TOP CONE
53211-028-000
Superseded by 53211-028-010
|
$13.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
RACE, STEERING CONE (UPPER)
53211-028-010
|
$13.44 | ||
|
Unavailable |
|||
|
#4
RACE, STEERING CONE (LOWER)
53212-030-000
Superseded by 53212-030-010
|
$13.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
RACE, STEERING CONE (LOWER)
53212-030-010
|
$13.00 | ||
|
Unavailable |
|||
|
#5
DUST SEAL, STEERING HEAD
53214-001-010
Superseded by 53214-GJG-C20
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, DUST SEAL
53215-GF8-000
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, DUST SEAL
53215-918-000
Superseded by 53215-GF8-000
|
$5.24 | ||
|
Unavailable |
|||
|
#7
THREAD, STEERING HEAD TOP
53220-051-690
Superseded by 53220-098-670
|
$20.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
THREAD, STEERING HEAD TOP
53220-098-670
|
$20.40 | ||
|
Unavailable |
|||
|
#7
THREAD, STEERING HEAD TOP
53220-115-000
Superseded by 53220-098-670
|
$20.40 | ||
|
Unavailable |
|||
|
#7
THREAD, STEERING HEAD TOP
53220-958-000
Superseded by 53220-098-670
|
$20.40 | ||
|
Unavailable |
|||
|
#8
FENDER, FR. *R109* (PASSION RED) (NOT AVAILABLE)
61100-958-681ZA
|
$113.14 | ||
|
Unavailable |
|||
|
#9
COLLAR, FR. FENDER (WHITE)
61104-428-000
Superseded by 61104-428-010
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, RR. FENDER
61105-428-000
|
$4.03 | ||
|
Unavailable |
|||
|
#10
NUT, SPECIAL (6X7)
61304-958-003
|
$4.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BRACKET, HEADLIGHT CASE (NOT AVAILABLE)
61311-958-681
|
$114.17 | ||
|
Unavailable |
|||
|
#12
RUBBER, HEADLIGHT MOUNTING (NOT AVAILABLE)
61315-958-000
|
$2.43 | ||
|
Unavailable |
|||
|
#13
RUBBER, HEADLIGHT MOUNTING
61315-958-680
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPLASH GUARD, FR. (NOT AVAILABLE)
61861-969-003
|
$20.32 | ||
|
Unavailable |
|||
|
#15
WASHER, FR. COVER FIXING
64348-086-000
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
EMBLEM, FR. FORK (NOT AVAILABLE)
87102-958-000
Superseded by 87102-958-010
|
$2.74 | ||
|
Available to order. Add to View Price |
|||
|
#16
EMBLEM, FR. FORK (NOT AVAILABLE)
87102-958-010
|
$2.74 | ||
|
Unavailable |
|||
|
#17
SCREW, TORUS (6X7)
90102-673-003
|
$2.95 | ||
|
Unavailable |
|||
|
#18
BOLT, HEX. (6X20)
92000-06020-0H
Superseded by 92101-06020-0H
|
$1.53 | ||
|
Unavailable |
|||
|
#18
BOLT, HEX. (6X20)
92101-06020-0H
|
$1.53 | ||
|
Unavailable |
|||
|
#19
NUT, CAP (6MM)
94021-06000-0S
Superseded by 94021-06020
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, CAP (6MM)
94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#19
NUT, CAP (6MM)
94021-06020-0S
Superseded by 94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#19
NUT, CAP (6MM)
94022-06020
Superseded by 94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#20
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#20
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#21
WASHER, PLAIN (10MM)
94101-10000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, LOCK (10MM)
94251-10000
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X20)
95700-06020-00
Superseded by 95701-06020-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.85 | ||
|
Unavailable |
|||
|
#24
BALL, STEEL (#6) (3/16)
96211-06000
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
