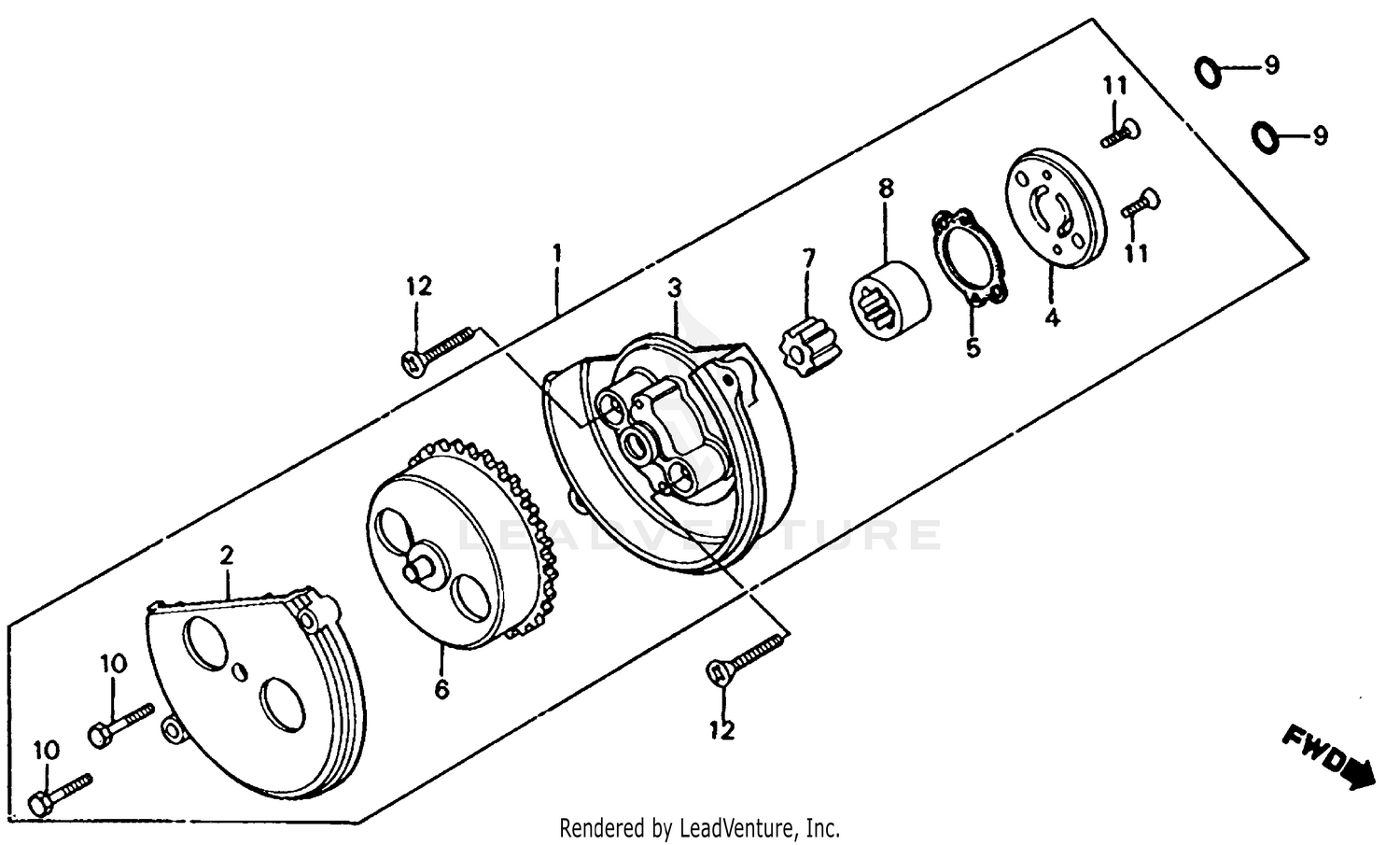

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., OIL
15100-958-000
|
$157.64 | ||
|
Unavailable |
|||
|
#2
COVER, OIL PUMP GEAR (NOT AVAILABLE)
15106-958-000
|
$24.44 | ||
|
Unavailable |
|||
|
#3
BODY, OIL PUMP
15111-958-000
|
$65.52 | ||
|
Unavailable |
|||
|
#4
PLATE, OIL PUMP
15116-958-000
|
$15.19 | ||
|
Unavailable |
|||
|
#5
GASKET, OIL PUMP
15126-107-020
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, OIL PUMP DRIVE
15130-958-000
|
$107.23 | ||
|
Unavailable |
|||
|
#7
ROTOR SET, OIL PUMP
15331-958-000
Superseded by 15021-958-000
|
$42.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROTOR SET, OIL PUMP
15332-958-000
Superseded by 15021-958-000
|
$42.73 | ||
|
Unavailable |
|||
|
#9
O-RING (9.4X2.4)
91304-KK3-830
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING (9.4X2.4)
91304-107-000
Superseded by 91304-KK3-830
|
$2.53 | ||
|
Unavailable |
|||
|
#10
BOLT, HEX. (5X20)
92000-05020-0A
Superseded by 92101-05020-0A
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. (5X20)
92101-05020-0A
|
$1.22 | ||
|
Unavailable |
|||
|
#10
BOLT, HEX. (5X20)
92301-05020-0A
Superseded by 92101-05020-0A
|
$1.22 | ||
|
Unavailable |
|||
|
#11
SCREW, FLAT (4X12)
93600-04012-1A
|
$0.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SCREW, FLAT (6X35)
93600-06035
Superseded by 93600-06035-0A
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, FLAT (6X35)
93600-06035-0A
|
$1.33 | ||
|
Unavailable |
|||
