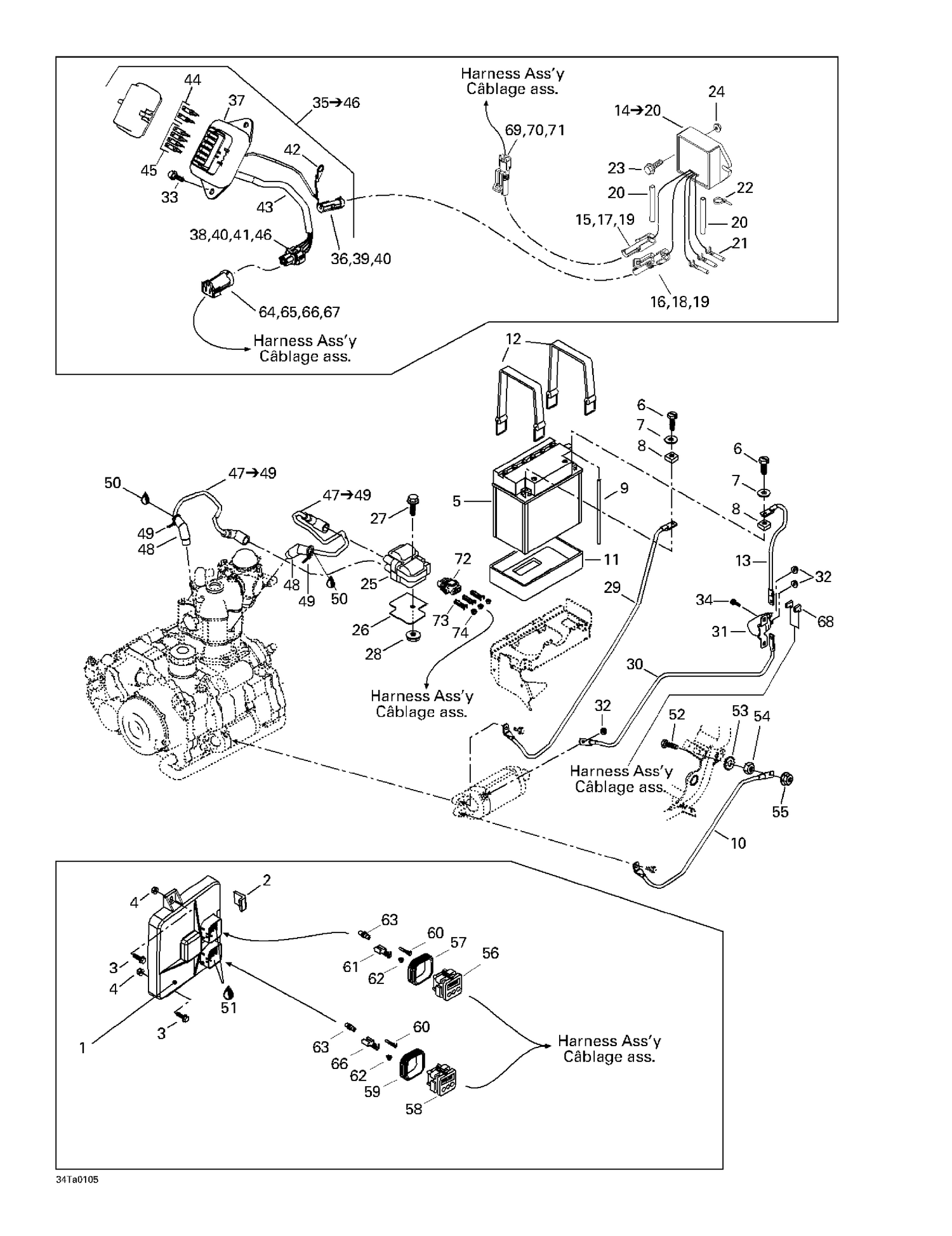

10- Battery And Electrical Accessories Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Electronic Module
710000164
|
|||
|
Available to order. Add to View Price |
|||
|
#2
MODULE PROTECTOR - Call your local BRP dealership
278001166
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Battery YUASA YB16CL-B
278000712
Superseded by 278001756
|
$143.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hex. Screw M6 X 16
211000045
Superseded by 207161644
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
FLAT WASHER 6 MM - Call your local BRP dealership
211200018
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
Hex. Nut M6
211100022
Superseded by 232061414
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
Was 415110000 Polyurethane Hose 5.2 mm
219704414
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Battery Ground Cable
710000022
|
|||
|
Unavailable |
|||
|
#11
Battery Lower Pad
278001234
|
|||
|
Available to order. Add to View Price |
|||
|
#12
Retainer Strap
293850021
Superseded by 293850097
|
$11.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
Positive Cable
710000011
|
|||
|
Unavailable |
|||
|
#14
VOLT REGULATOR ASS'Y - Call your local BRP dealership
710000100
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Male Terminal
278000222
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
Female Terminal
278000223
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Female Housing, 1 Circuit
278000161
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#18
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Wire Seal
278000218
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership
409901300
|
$6.99 | ||
|
Unavailable |
|||
|
#21
FEMALE TERMINAL - Call your local BRP dealership
710000034
Superseded by 278001661
|
$9.49 | ||
|
Unavailable |
|||
|
#22
Tie Wrap 94 mm
293750001
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
Unavailable |
|||
|
#24
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#25
Ignition Coil
278001546
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Insulator Pad
710000073
|
$11.12 | ||
|
Available to order. Add to View Price |
|||
|
#27
Hex. Flange Screw M6 X 50
207665044
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#28
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#29
Ground Cable
710000023
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#
Engine Ground Cable
710000211
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
STARTER POSITIVE CABLE - Call your local BRP dealership
710000136
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Starter Relay
710000111
Superseded by 515176011
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Hex. Elastic Stop Nut M6
232561600
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#33
Hex. Flange Screw M6 X 16
210261680
Superseded by 210261650
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
Screw Hex. M6.3 x 19
210661940
|
|||
|
Unavailable |
|||
|
#35
Fuse Holder
710000092
|
|||
|
Available to order. Add to View Price |
|||
|
#36
Male Terminal
409004300
|
$5.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
Fuse Box
710000029
|
|||
|
Available to order. Add to View Price |
|||
|
#38
Female Terminal
409007300
|
$0.47 | ||
|
Available to order. Add to View Price |
|||
|
#39
Female Housing, 1 Circuit
278000161
|
$9.79 | ||
|
Unavailable |
|||
|
#40
Wire Seal
278000218
|
$4.49 | ||
|
Unavailable |
|||
|
#41
Wire Seal
710000048
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#42
Open Barrel Terminal
278001392
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#43
Tubing 6 Mm 3000Mm Long
219704425
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
Fuse, 30 Amperes
410917200
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#
Fuse, 20 Amperes
278001143
Superseded by 409003900
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#45
Fuse, 15 Amperes
278000343
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#46
Female Housing, 5 Circuit
710000106
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
Spark Plug Wire Kit
710000039
Superseded by 703500744
|
$64.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
Spark Plug Connector
710000041
Superseded by 420265248
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
Tie Wrap 94 mm
293750001
|
$1.03 | ||
|
Unavailable |
|||
|
#50
Was 293550004 Dielectric Grease, 150 g
219704453
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
*(Ormd) *Deoxit Aerosol *
293550015
Superseded by 293550034
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
Hex. Screw M6 X 20
207162044
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#53
External Serrated Lock Washer 6 mm
234461608
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#54
Hex. Nut M6
232061414
|
$0.55 | ||
|
Unavailable |
|||
|
#55
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#56
Male Terminal Housing, 26 Circuits
278001062
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
WIRE SEAL - Call your local BRP dealership
278001307
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership
278001063
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
WIRE SEAL - Call your local BRP dealership
278001307
|
$12.99 | ||
|
Unavailable |
|||
|
#60
FEMALE TERMINAL - Call your local BRP dealership
278000995
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#61
FEMALE TERMINAL - Call your local BRP dealership
278000994
|
$2.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#62
WIRE SEAL - Call your local BRP dealership
278000996
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#63
SEALING CAP - Call your local BRP dealership
293000070
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership
710000107
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
Male Terminal
409004300
|
$5.69 | ||
|
Unavailable |
|||
|
#66
Wire Seal
278000218
|
$4.49 | ||
|
Unavailable |
|||
|
#67
Wire Seal
710000048
|
$7.89 | ||
|
Unavailable |
|||
|
#68
Female Terminal
409010300
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#69
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
|
$14.99 | ||
|
Unavailable |
|||
|
#70
Female Terminal
409007300
|
$0.47 | ||
|
Unavailable |
|||
|
#71
Wire Seal
710000048
|
$7.89 | ||
|
Unavailable |
|||
|
#72
Male Housing, 3 Circuits
278000997
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#73
Female Terminal
278000998
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#74
Wire Seal
278000999
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
