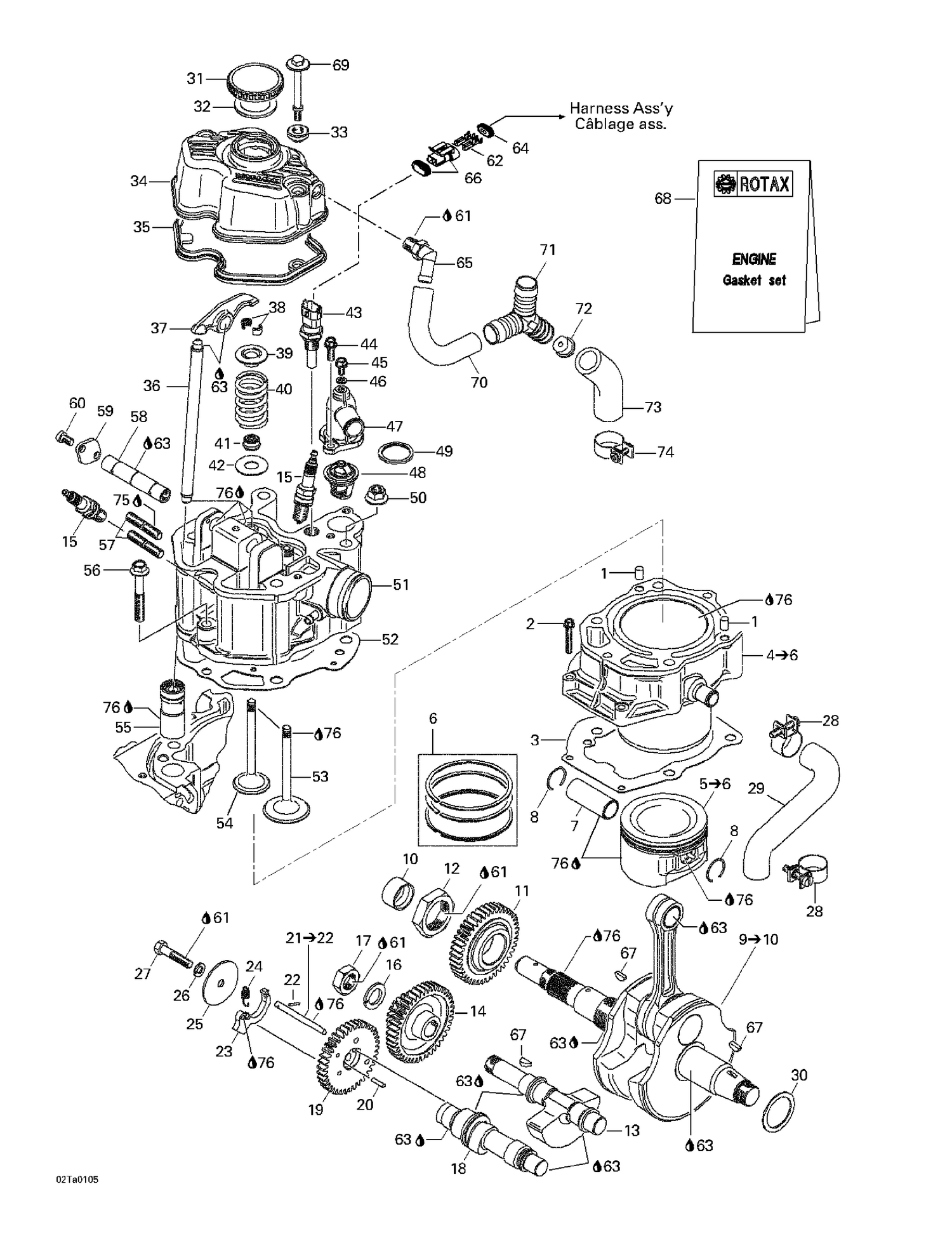

01- Crankshaft, Pistons And Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Center Pin 8 X 12
290632010
Superseded by 420632010
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hex. Flange Screw M6 x 35
711941126
|
|||
|
Available to order. Add to View Price |
|||
|
#3
CYLINDER GASKET - Call your local BRP dealership
711650430
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Cylinder/Piston
711613177
|
$470.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Piston 89 mm & Ring Set
711296110
|
$123.49 | ||
|
Unavailable |
|||
|
#6
Piston Ring Set
711296114
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Piston Pin
711216225
Superseded by 420216225
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Circlip 22 mm
711245431
|
|||
|
Available to order. Add to View Price |
|||
|
#9
Crankshaft Ass'y
711295893
|
|||
|
Available to order. Add to View Price |
|||
|
#10
Spacer
711247070
|
|||
|
Available to order. Add to View Price |
|||
|
#11
Mating Gear (42 Teeth)
711635011
|
|||
|
Available to order. Add to View Price |
|||
|
#12
Nut M34
711842605
|
|||
|
Available to order. Add to View Price |
|||
|
#13
Balance Shaft
711220470
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Balancing Gear Double
711635100
|
|||
|
Available to order. Add to View Price |
|||
|
#15
Spark Plug NGK DR8EA
707000008
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Lock Washer 18 mm
290945757
|
|||
|
Available to order. Add to View Price |
|||
|
#17
HEX. NUT M18 - Call your local BRP dealership
420942220
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Cam Shaft
711220462
|
|||
|
Available to order. Add to View Price |
|||
|
#19
Cam Shaft Gear (38 Teeth)
711634955
|
$203.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Needle Pin
420232420
|
$4.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Deko Shaft Ass'y
711220615
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Not Available As Spare Part - Groove Pin
|
|||
|
Unavailable |
|||
|
#23
Centrifugal Weight
711231050
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Tension Spring
711239570
|
|||
|
Available to order. Add to View Price |
|||
|
#25
Washer
711244260
|
|||
|
Available to order. Add to View Price |
|||
|
#26
Washer-Lock Din.128
420945752
Superseded by 420945832
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#27
Hex. Screw M8 X 40
207084044
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#28
Clamp
711951760
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
Water Cooling Hose
711222285
|
|||
|
Available to order. Add to View Price |
|||
|
#30
Adjusting Washer 35 x 45 x 1.3
711427505
|
|||
|
Available to order. Add to View Price |
|||
|
#
Adjusting Washer 35 x 45 x 1.5
711427506
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#
Adjusting Washer 35 x 45 x 1.8
711427507
|
|||
|
Available to order. Add to View Price |
|||
|
#31
Bayonet Filler Cap
711974644
|
|||
|
Available to order. Add to View Price |
|||
|
#32
Gasket Ring
711650990
|
|||
|
Available to order. Add to View Price |
|||
|
#33
Rubber Bushing
711260050
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
Valve Cover
711211835
|
|||
|
Available to order. Add to View Price |
|||
|
#35
Valve Cover Gasket
711650450
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Push Rod
711854575
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
Rocker Arm
711254083
|
$58.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
Valve Cotter
711253090
|
|||
|
Available to order. Add to View Price |
|||
|
#39
Valve Spring Retainer
711254100
|
|||
|
Available to order. Add to View Price |
|||
|
#40
Valve Spring
711239500
|
|||
|
Available to order. Add to View Price |
|||
|
#41
Valve Seal
420230810
|
$11.99 | ||
|
Unavailable |
|||
|
#42
THRUST WASHER - Call your local BRP dealership
711227980
Superseded by 420227980
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#43
Temperature Sensor
711222425
Superseded by 278002895
|
$41.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
Hex. Flange Screw M6 x 16
711241751
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Hex. Flange Screw M6 x 16
711241751
|
$1.99 | ||
|
Unavailable |
|||
|
#46
Sealing Washer
404146600
|
$3.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
Thermostat Cover
711222560
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
Thermostat
711222495
Superseded by 420222495
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
Thermostat Gasket
711650300
Superseded by 420650300
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#50
Hex. Flange Nut M10
233101414
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#51
Cylinder Head
711613375
|
|||
|
Available to order. Add to View Price |
|||
|
#52
Cylinder Head Gasket
711650446
|
$38.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
Inlet Valve 42 mm
711254050
|
$33.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
Inlet Valve 34 mm
711254062
|
|||
|
Available to order. Add to View Price |
|||
|
#55
Valve Hydraulic Tappet
711854090
Superseded by 420854099
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
Hex. Flange Screw M8 X 53.5
420240326
|
$5.99 | ||
|
Unavailable |
|||
|
#57
Stud M8 x 23
711940366
|
|||
|
Available to order. Add to View Price |
|||
|
#58
Rocker Arm Shaft
711254110
|
|||
|
Available to order. Add to View Price |
|||
|
#59
Holding Strip
711244250
|
|||
|
Available to order. Add to View Price |
|||
|
#60
Socket Head Screw M6 x 10
711241681
|
|||
|
Available to order. Add to View Price |
|||
|
#61
Loctite 243, 10 ml
293800060
|
$21.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
Female Terminal
278000998
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#63
Was 420297616 Klueber Grease, 60g
219704464
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
Wire Seal
278000999
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#65
Angular Tube
420922245
Superseded by 420922242
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#66
Male Housing, 2 Circuits
278001005
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#67
Woodruff Key 4 X 5
711246570
Superseded by 420246570
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#68
Engine Gasket Set
711296373
|
|||
|
Available to order. Add to View Price |
|||
|
#69
DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership
711240901
Superseded by 420240906
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
Formed Hose
711222610
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#71
Y Fitting
711874380
|
|||
|
Available to order. Add to View Price |
|||
|
#72
Fitting
711222590
|
|||
|
Available to order. Add to View Price |
|||
|
#73
Formed Hose
711222600
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#74
Gear Clamp
711251222
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
Sealant Loctite 648
413711400
Superseded by 219703000
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
Not Available As Spare Part - Engine Oil
|
|||
|
Unavailable |
|||
