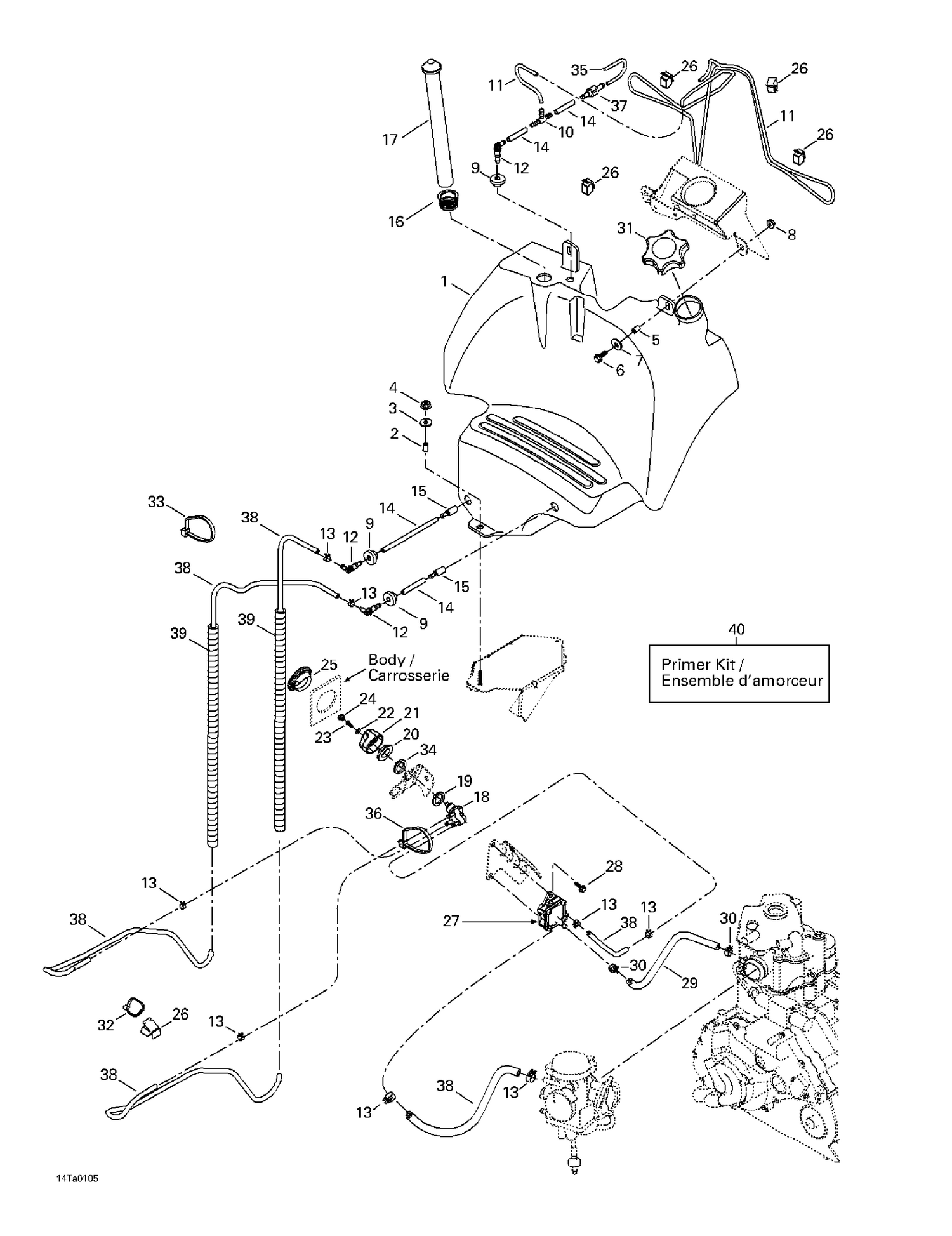

02- Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK - Call your local BRP dealership
709000025
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Bushing
293900028
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
Flat Washer 8 mm
234082410
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Bushing
293900029
Superseded by 293900104
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hex. Flange Screw M6 X 25
207662544
|
$0.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Flat Washer
224061201
|
$1.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Grommet
570045500
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#10
T-fitting
414222500
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
VENT HOSE - Call your local BRP dealership
709000031
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Elbow Male Connector
414580600
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Spring Clamp
414415200
|
$0.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Polyurethane Hose 10000Mm Long
219704410
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Fuel Filter
414865700
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Grommet
293720058
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Fuel gauge
709000033
|
|||
|
Available to order. Add to View Price |
|||
|
#18
Fuel Valve
275500098
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET - Call your local BRP dealership
293250004
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
HEX. PLASTIC NUT - Call your local BRP dealership
212100009
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#21
FUEL VALVE KNOB, BLACK - Call your local BRP dealership
275500263
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#22
Flat Washer 4 mm
234040600
|
$0.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership
208640860
|
$0.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Black, Cap
275500241
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
Fuel Valve Grommet
709000005
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Clip
414227300
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
FUEL PUMP - Call your local BRP dealership
707200000
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Hex. Flange Screw M6 X 10
210261040
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
HOSE - Call your local BRP dealership
709000024
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Spring Clamp
414415200
|
$0.90 | ||
|
Unavailable |
|||
|
#31
Fuel Tank Cap
572039600
Superseded by 513033025
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Tie Wrap 142 mm
293750002
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
Washer
250200015
|
$1.17 | ||
|
Unavailable |
|||
|
#35
VENT HOSE - Call your local BRP dealership
709000029
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Tie Wrap 368 mm
293750008
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#37
CHECK VALVE - Call your local BRP dealership
275500479
|
$11.23 | ||
|
Available to order. Add to View Price |
|||
|
#38
Hose
219704439
Superseded by 219704549
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Was 409901800 Tubing (13 mm)
219704400
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Primer Kit
703500045
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
