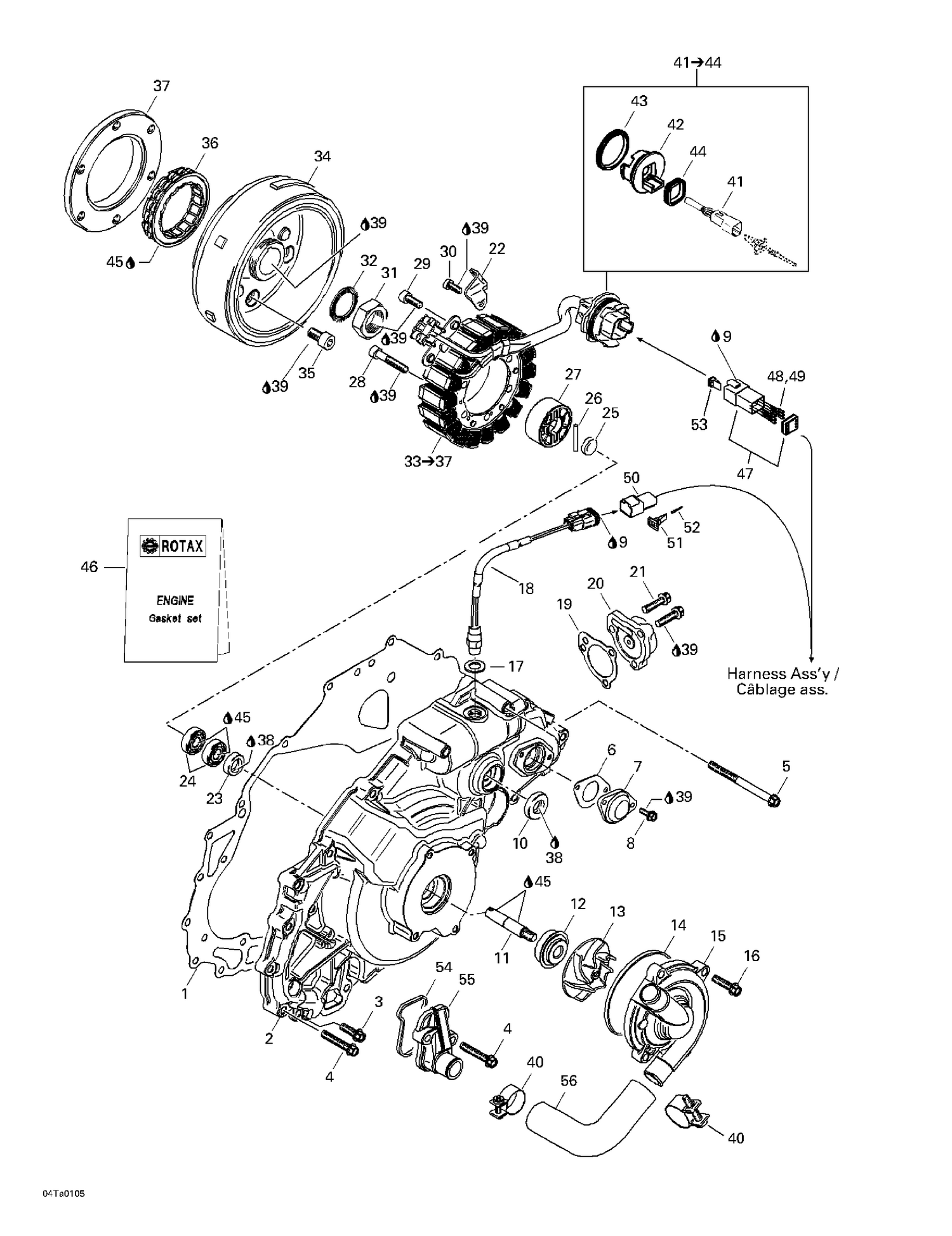

03- Ignition And Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Gasket, Ignition Cover
711650602
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Ignition Cover
711211825
|
$272.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hex. Flange Screw M6 x 20
711241861
|
|||
|
Available to order. Add to View Price |
|||
|
#4
Hex. Flange Screw M6 x 35
711941126
|
|||
|
Available to order. Add to View Price |
|||
|
#5
Hex. Flange Screw M6 x 70
711940576
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Gasket
711630050
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Cover
711627450
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership
711440291
Superseded by 420440291
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#9
Was 293550004 Dielectric Grease, 150 g
219704453
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Oil Seal
711250450
Superseded by 420250450
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
Water Pump Shaft
711220560
|
|||
|
Available to order. Add to View Price |
|||
|
#12
Rotary Seal
420650370
Superseded by 420650371
|
$44.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Water Impeller
711222540
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Rubber Ring
711650570
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Water Pump Housing
711222550
|
|||
|
Available to order. Add to View Price |
|||
|
#16
Hex. Screw M6 x 25
711241911
|
|||
|
Available to order. Add to View Price |
|||
|
#17
Gasket Ring
711250735
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Ball Switch
711265780
|
$128.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
Hydraulic Cover Gasket
711650640
|
|||
|
Available to order. Add to View Price |
|||
|
#20
Hydraulic Cover
711211950
|
|||
|
Available to order. Add to View Price |
|||
|
#21
Hex. Screw M6 x 25
711241911
|
|||
|
Unavailable |
|||
|
#22
Cable Clamp
711251180
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
Oil Seal
711250080
|
|||
|
Available to order. Add to View Price |
|||
|
#24
Ball Bearing
711632170
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
Distance Sleeve
711247030
|
|||
|
Available to order. Add to View Price |
|||
|
#26
Needle Pin
711932885
|
|||
|
Available to order. Add to View Price |
|||
|
#27
Pawl
711659190
|
|||
|
Available to order. Add to View Price |
|||
|
#28
Hex. Flange Screw M6 x 35
711941126
|
|||
|
Unavailable |
|||
|
#29
Hex. Flange Screw M6 x 16
711241751
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership
732600027
Superseded by 210251180
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#31
Nut M22
711242875
|
|||
|
Available to order. Add to View Price |
|||
|
#32
Washer 22 mm
711245875
|
|||
|
Available to order. Add to View Price |
|||
|
#33
Magneto Ass'y
711296106
|
|||
|
Available to order. Add to View Price |
|||
|
#34
Not Available As Spare Part - Rotor With Sprag Clutch Ass'y
|
|||
|
Unavailable |
|||
|
#35
SOCKET HEAD SCREW M8 X 16 - Call your local BRP dealership
205081644
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPRAG CLUTCH - Call your local BRP dealership
711659117
Superseded by 420659117
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Clutch Sprag Housing
711659220
Superseded by 420659129
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Dow Corning 111, 150 g
413707000
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Loctite 243, 10 ml
293800060
|
$21.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
Gear Clamp
711251222
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
Adaptor Ass'y
707000031
|
|||
|
Available to order. Add to View Price |
|||
|
#41
Male Terminal Housing, 6 Circuits
270000137
Superseded by 710001539
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
Adaptor
270000138
|
|||
|
Available to order. Add to View Price |
|||
|
#43
Gasket
293300033
|
|||
|
Available to order. Add to View Price |
|||
|
#44
Gasket
293200055`
|
$8.99 | ||
|
Unavailable |
|||
|
#45
Not Available As Spare Part - Engine Oil
|
|||
|
Unavailable |
|||
|
#46
Engine Gasket Set
711296373
|
|||
|
Available to order. Add to View Price |
|||
|
#47
CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership
278000736
Superseded by 710001540
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
Female Terminal
278000632
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#49
FEMALE TERMINAL - Call your local BRP dealership
710000034
Superseded by 278001661
|
$9.49 | ||
|
Unavailable |
|||
|
#50
Male Housing (2 Circuits)
515175257
|
|||
|
Unavailable |
|||
|
#51
Male Lock (2 Circuits)
515175258
|
|||
|
Unavailable |
|||
|
#52
MALE TERMINAL - Call your local BRP dealership
409014800
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#53
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#54
Sealing Ring
711650940
|
|||
|
Available to order. Add to View Price |
|||
|
#55
Inlet Fitting
711222620
|
|||
|
Available to order. Add to View Price |
|||
|
#56
Profile Tube
711222630
|
|||
|
