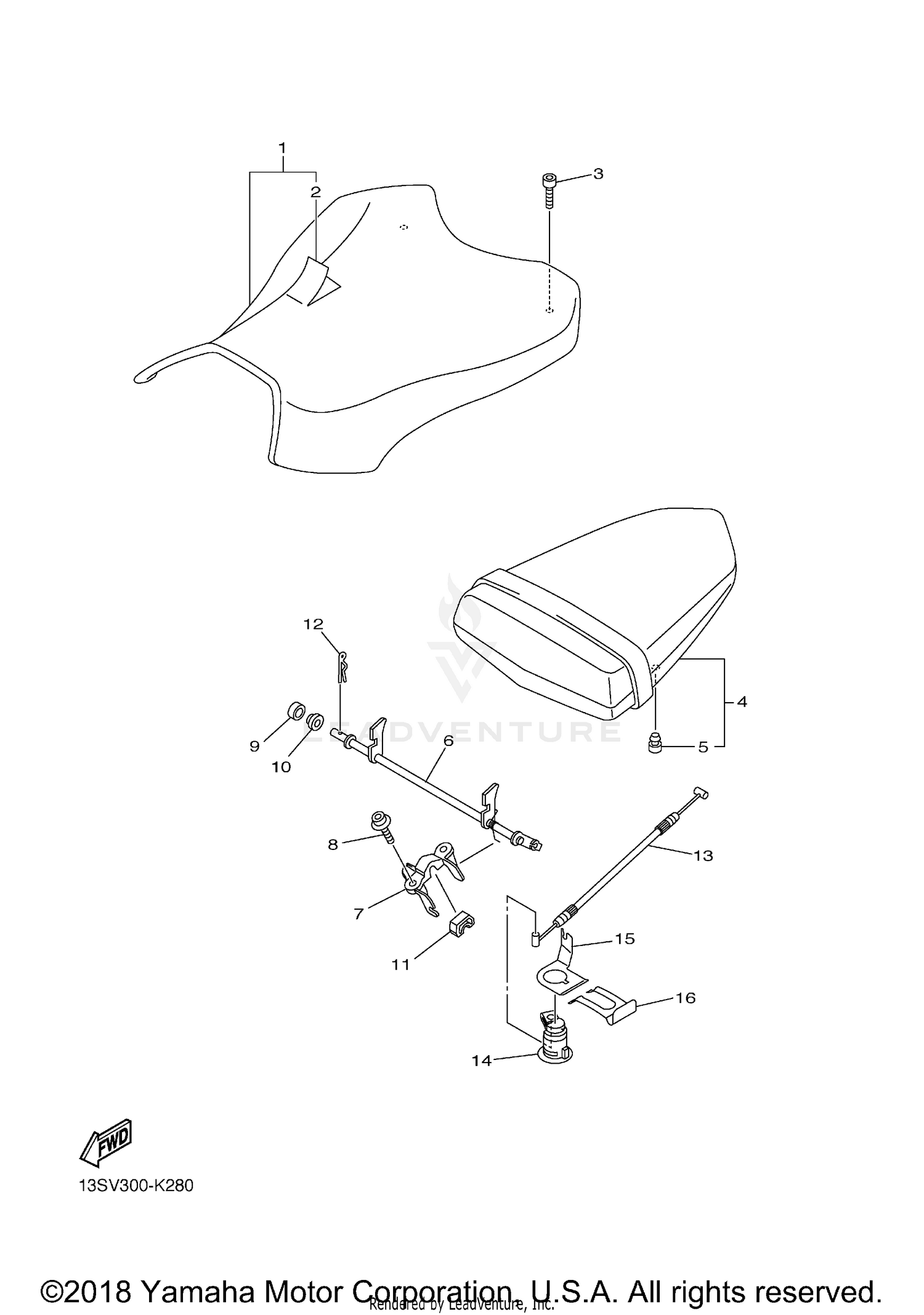

2014 Yamaha YZF R6 SEAT OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 SINGLE SEAT ASSY
13S-24710-00-00
Superseded by 13S-24710-01-00
$116.99
Available: Ships in 7-12 days.
Add to View Price
#2 COVER, SINGLE SEAT
13S-24711-00-00
Superseded by 13S-24711-01-00
$58.99
Unavailable
#3 BOLT, HEXAGON SOCKET HEAD
90110-06258-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#4 TANDEM SEAT ASSY
13S-24750-00-00
Superseded by 13S-24750-01-00
$123.78
Available: Ships in 7-12 days.
Add to View Price
#5 DAMPER, SEAT
5SL-24723-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#6 SEAT LOCK ASSY
2C0-24780-10-00
$61.99
Available: Ships in 7-12 days.
Add to View Price
#7 PLATE
2C0-24792-00-00
$28.99
In Stock: Ready to ship.
Add to View Price
#8 BOLT, HEXAGON SOCKET HEAD
90110-06163-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#9 SPACER, CARRIER
2C0-24825-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#10 SPACER 1
13S-24725-00-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#11 HOLDER 1
13S-24847-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#12 CLIP
90468-16001-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#13 CABLE, SEAT LOCK
13S-2478E-00-00
$13.99
Available: Ships in 7-12 days.
Add to View Price
#14 ROTOR SET
5VY-W2470-00-00
$69.99
Available: Ships in 7-12 days.
Add to View Price
#15 STAY, LOCK
5VY-2117K-01-00
$6.49
In Stock: Ready to ship.
Add to View Price
#16 SPRING, LOCK 2
5VY-2176V-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
