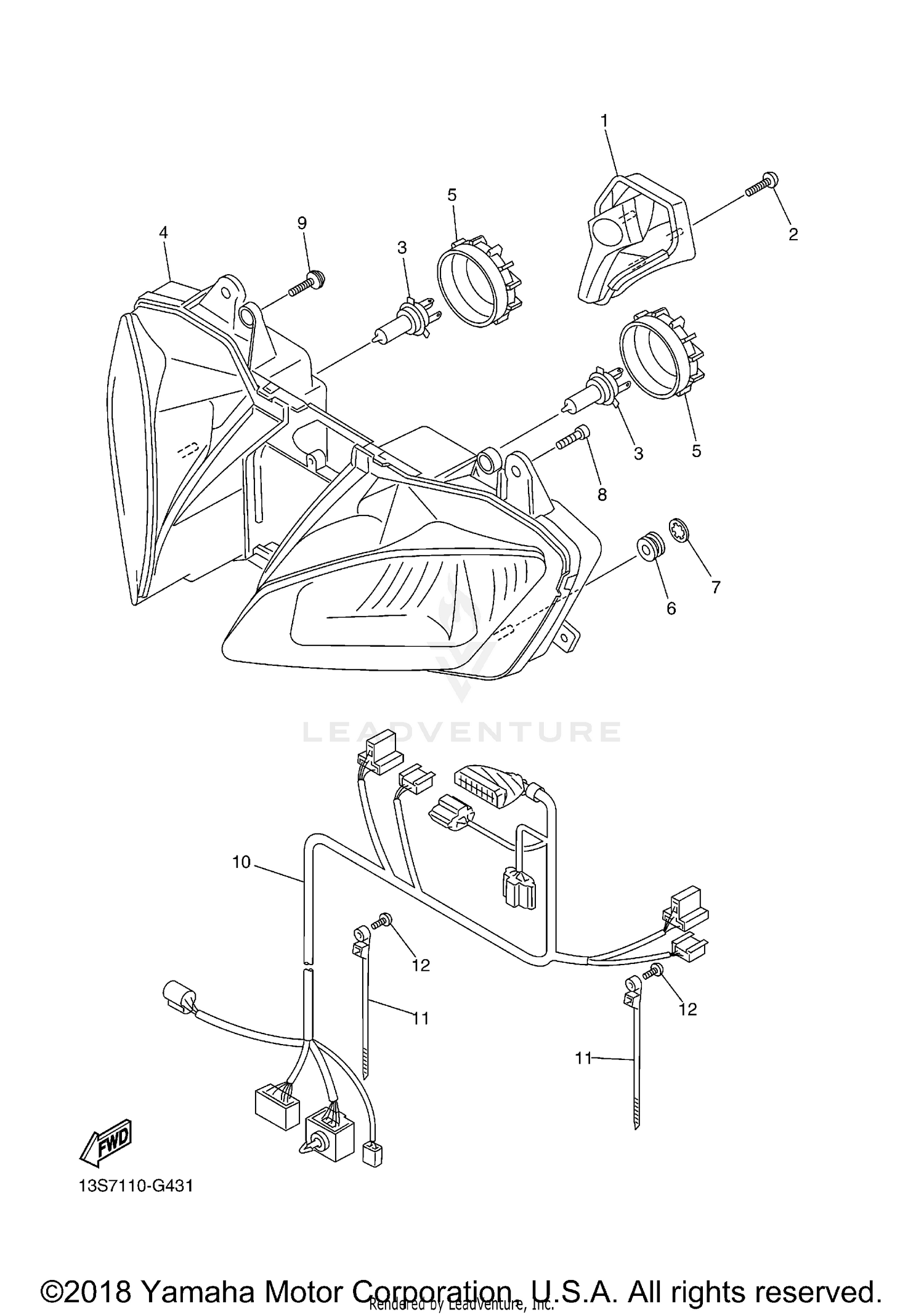

2014 Yamaha YZF R6 HEADLIGHT OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 PILOT LIGHT ASSY 1
13S-84301-10-00
$40.99
Available: Ships in 7-12 days.
Add to View Price
#2 SCREW, TAPPING
97702-40016-00
Superseded by 97707-40016-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#3 BULB (12V-55W)
4SV-84314-00-00
$45.99
In Stock: Ready to ship.
Add to View Price
#4 HEADLIGHT UNIT ASSY
13S-84303-00-00
$636.99
Available: Ships in 7-12 days.
Add to View Price
#5 COVER, SOCKET
5SL-84397-00-00
$12.99
Available: Ships in 7-12 days.
Add to View Price
#6 GROMMET
90480-08264-00
$6.49
In Stock: Ready to ship.
Add to View Price
#7 WASHER
90209-03274-00
$6.49
In Stock: Ready to ship.
Add to View Price
#8 SCREW, TRUSS HEAD TAPPING
97707-50016-00
$3.30
In Stock: Ready to ship.
Add to View Price
#9 SCREW, ROUND TAPPING
90160-05006-00
$6.49
In Stock: Ready to ship.
Add to View Price
#10 CORD, HEADLIGHT
13S-84359-40-00
$221.99
Available: Ships in 7-12 days.
Add to View Price
#11 CLAMP
90464-47001-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#12 SCREW, TRUSS HEAD TAPPING
97707-50016-00
$3.30
Unavailable
