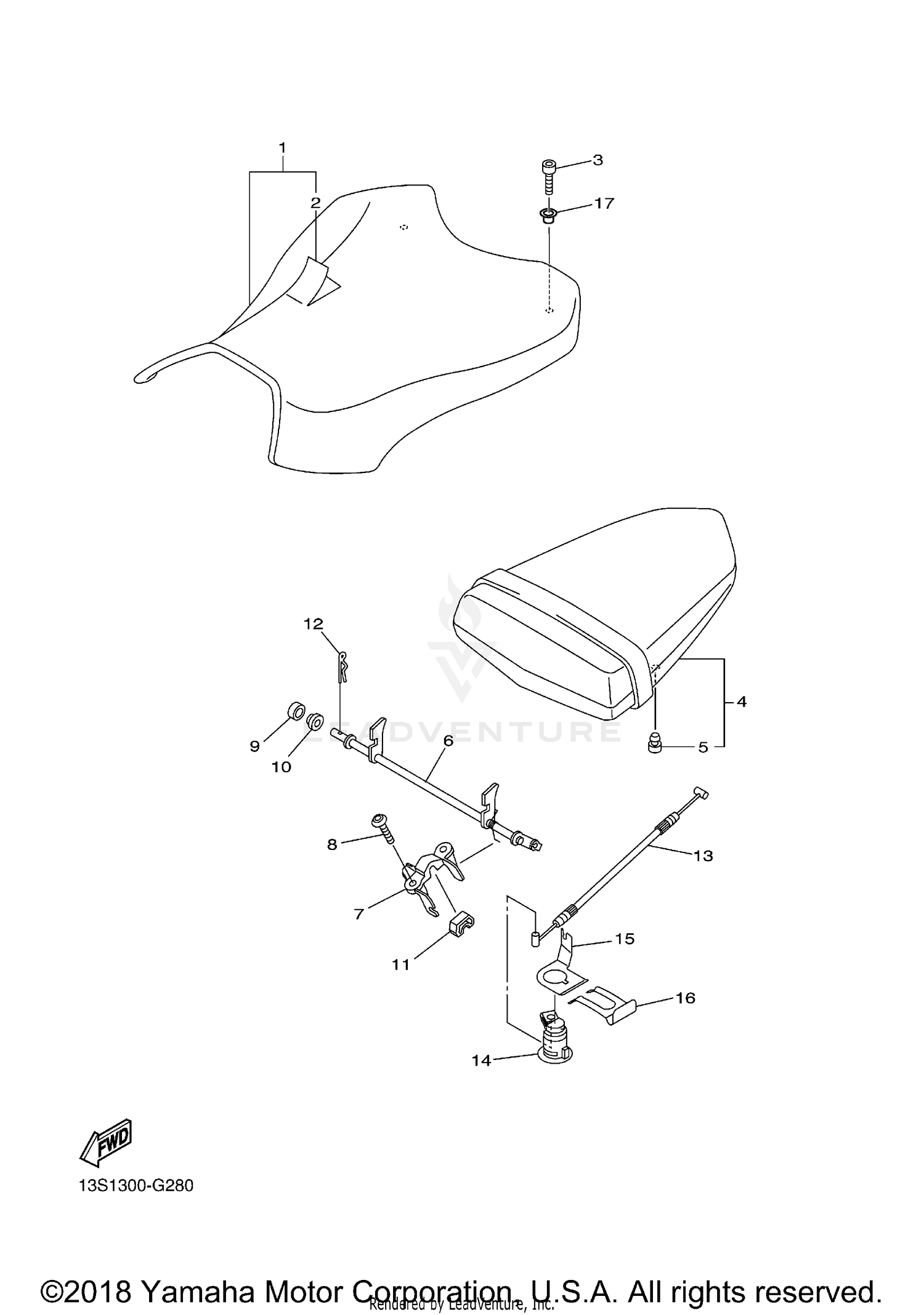

2009 Yamaha YZF R6 SEAT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
13S-24710-00-00
Superseded by 13S-24710-01-00
|
$116.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
SINGLE SEAT ASSY
13S-24710-10-00
|
$193.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
COVER, SINGLE SEAT
13S-24711-10-00
|
$70.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
COVER, SINGLE SEAT
13S-24711-00-00
Superseded by 13S-24711-01-00
|
$58.99 | ||
|
Unavailable |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
90110-06258-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
TANDEM SEAT ASSY
13S-24750-10-00
|
$210.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
TANDEM SEAT ASSY
13S-24750-00-00
Superseded by 13S-24750-01-00
|
$123.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
DAMPER, SEAT
5SL-24723-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SEAT LOCK ASSY
2C0-24780-00-00
Superseded by 2C0-24780-10-00
|
$61.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
PLATE
2C0-24792-00-00
|
$28.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, HEX. SOCKET BUTTON
90111-06051-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SPACER, CARRIER
2C0-24825-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPACER 1
13S-24725-00-00
|
$5.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
HOLDER 1
13S-24847-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
CLIP
90468-16001-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CABLE, SEAT LOCK
13S-2478E-00-00
|
$13.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SEAT LOCK ASSY
5VY-W2470-00-00
|
$69.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
STAY, LOCK
5VY-2117K-01-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SPRING, LOCK 2
5VY-2176V-00-00
|
$8.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
COLLAR
90387-06066-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
