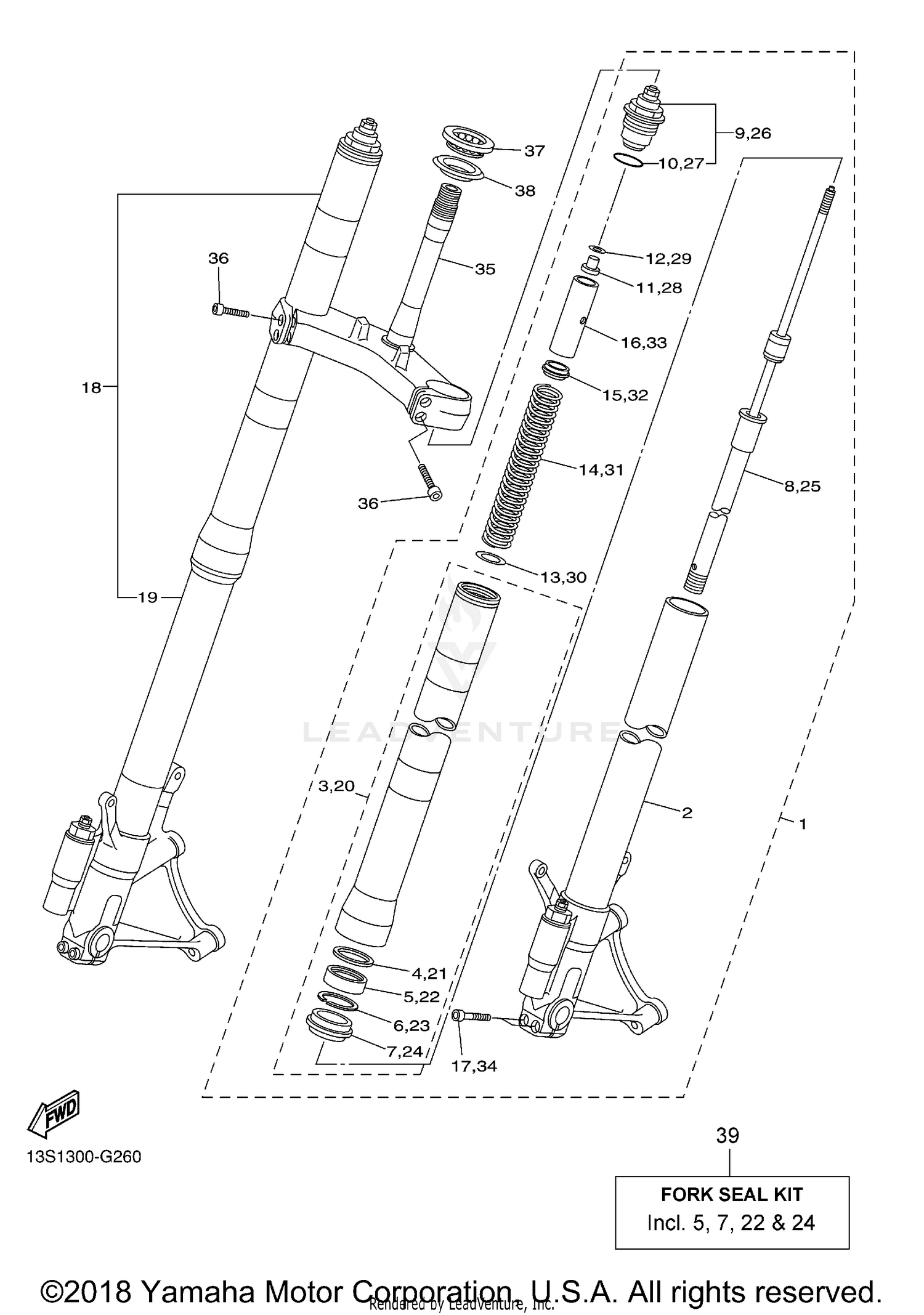

2009 Yamaha YZF R6 FRONT FORK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
13S-23102-01-00
Superseded by 13S-23102-02-00
|
$867.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
FRONT FORK ASSY (L.H)
13S-23102-11-00
Superseded by 13S-23102-12-00
|
$1,175.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
INNER TUBE COMP. 1
13S-23110-01-00
Superseded by 13S-23110-03-00
|
$446.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
OUTER TUBE COMP.
13S-23106-00-00
|
$330.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
OUTER TUBE COMP.
13S-23106-10-00
|
$328.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
GUIDE, COVER UPPER
3VD-23115-00-00
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
OIL SEAL
5VU-23145-00-00
|
$19.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
RING, SNAP
3VD-23156-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SEAL, DUST
3VD-23144-00-00
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CYLINDER COMP., FRONT FORK
13S-23170-00-00
|
$359.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT, CAP
13S-23111-00-00
|
$186.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
O-RING
93210-41N50-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
NUT, SPECIAL
13S-23393-00-00
|
$13.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
PLATE, VALVE 2
13S-2332N-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SEAT, SPRING LOWER
2C0-23143-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SPRING, FRONT FORK
13S-23141-00-00
|
$30.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SEAT, SPRING UPPER
13S-23142-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPACER
13S-23118-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
FRONT FORK ASSY (R.H)
13S-23103-01-00
Superseded by 13S-23103-02-00
|
$867.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
FRONT FORK ASSY (R.H)
13S-23103-11-00
Superseded by 13S-23103-12-00
|
$867.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
INNER TUBE COMP. 2
13S-23120-01-00
Superseded by 13S-23120-03-00
|
$447.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
OUTER TUBE COMP.
13S-23106-00-00
|
$330.99 | ||
|
Unavailable |
|||
|
#20
OUTER TUBE COMP.
13S-23106-10-00
|
$328.99 | ||
|
Unavailable |
|||
|
#21
GUIDE, COVER UPPER
3VD-23115-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#22
OIL SEAL
5VU-23145-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#23
RING, SNAP
3VD-23156-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#24
SEAL, DUST
3VD-23144-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#25
CYLINDER COMP., FRONT FORK
13S-23170-00-00
|
$359.99 | ||
|
Unavailable |
|||
|
#26
BOLT, CAP
13S-23111-00-00
|
$186.99 | ||
|
Unavailable |
|||
|
#27
O-RING
93210-41N50-00
|
$6.49 | ||
|
Unavailable |
|||
|
#28
NUT, SPECIAL
13S-23393-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#29
PLATE, VALVE 2
13S-2332N-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#30
SEAT, SPRING LOWER
2C0-23143-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#31
SPRING, FRONT FORK
13S-23141-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#32
SEAT, SPRING UPPER
13S-23142-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#33
SPACER
13S-23118-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#34
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$6.49 | ||
|
Unavailable |
|||
|
#35
UNDER BRACKET COMP.
13S-23340-00-00
Superseded by 2CX-23340-00-00
|
$462.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
BEARING
93399-99957-00
|
$51.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
SEAL, STEERING
3FV-23462-00-00
|
$18.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
FORK SEAL KIT
5VU-W003B-00-00
|
$41.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
