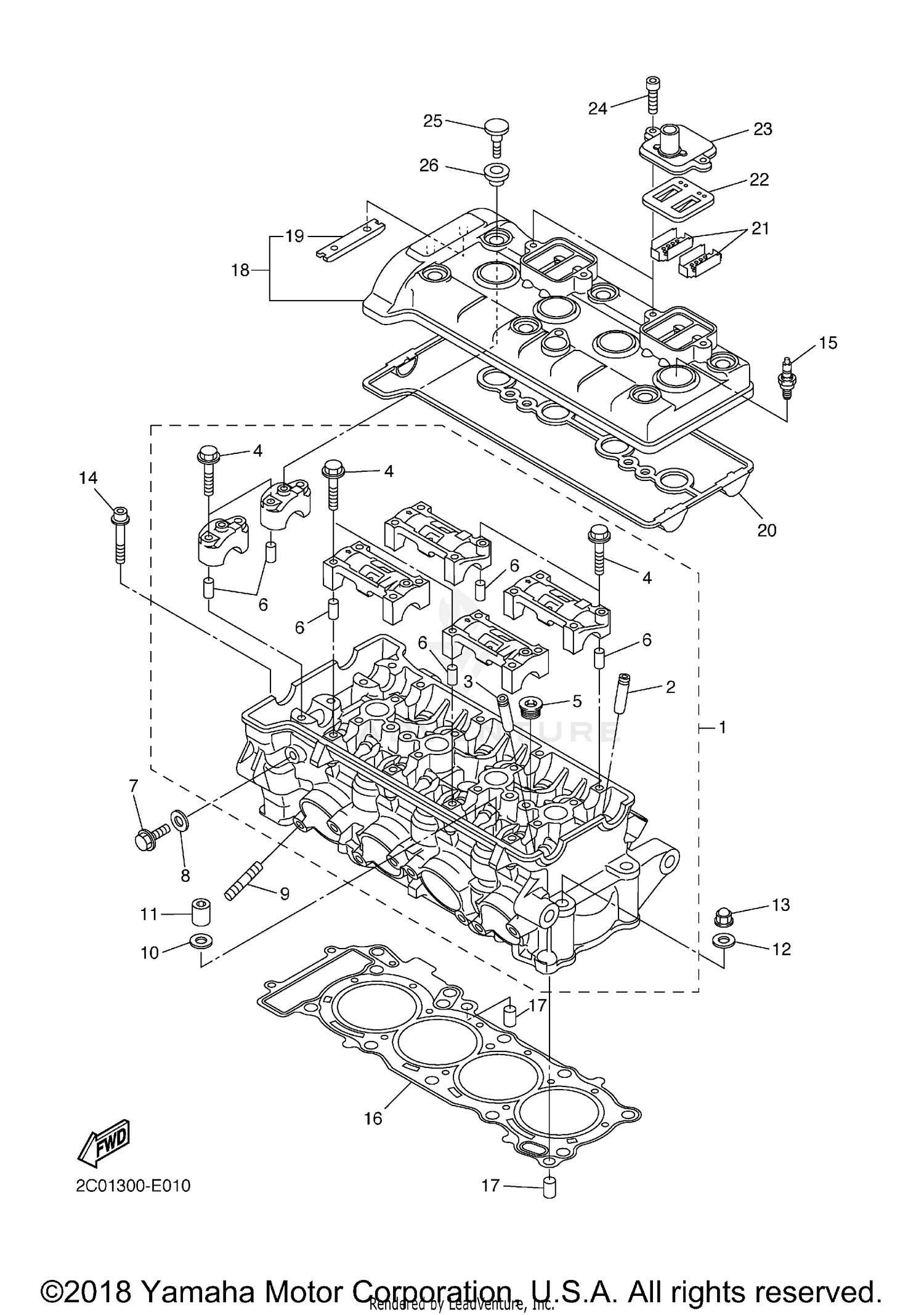

2009 Yamaha YZF R6 CYLINDER OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Other
+
Seat
+
Item MSRP Qty
#1 CYLINDER HEAD ASSY
2C0-11101-01-00
$1,589.99
Available: Ships in 7-12 days.
Add to View Price
#2 GUIDE, VALVE 1
2C0-11133-11-00
$46.99
Available: Ships in 7-12 days.
Add to View Price
#3 GUIDE, VALVE 2
2C0-11134-11-00
$56.99
Available: Ships in 7-12 days.
Add to View Price
#4 BOLT, FLANGE
90105-06027-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#5 PLUG, STRAIGHT SCREW
90340-18002-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#6 PIN, DOWEL
91808-16023-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#7 BOLT, FLANGE
95022-08012-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#8 GASKET
90430-08119-00
$5.99
Available: Ships in 7-12 days.
Add to View Price
#9 BOLT, STUD
95612-08625-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#10 WASHER, PLATE
90201-10013-00
Superseded by 90201-10033-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#11 NUT
90179-10006-00
$7.49
Available: Ships in 7-12 days.
Add to View Price
#12 WASHER, PLATE
90201-10013-00
Superseded by 90201-10033-00
$6.49
Unavailable
#13 NUT, CROWN
90176-10075-00
$6.49
In Stock: Ready to ship.
Add to View Price
#14 BOLT, HEXAGON SOCKET HEAD
90110-06094-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#15 CR10EK NGK SPLUG 1
NGK-CR10E-K0-00
Superseded by CR1-0EK00-00-00
$9.49
Available: Ships in 7-12 days.
Add to View Price
#16 GASKET, CYLINDER HEAD 1
2C0-11181-01-00
$87.99
Available: Ships in 7-12 days.
Add to View Price
#17 PIN, DOWEL
99530-10114-00
$2.20
Available: Ships in 7-12 days.
Add to View Price
#18 COVER, CYLINDER HEAD 1
2C0-11191-00-00
Superseded by 2C0-11191-01-00
$268.99
Unavailable
#19 GUIDE, STOPPER 2
5BE-12241-00-00
Superseded by 5BE-12241-01-00
$23.99
Available: Ships in 7-12 days.
Add to View Price
#20 GASKET, HEAD COVER 1
2C0-11193-00-00
$44.99
Available: Ships in 7-12 days.
Add to View Price
#21 PLATE
5VY-1482K-00-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#22 REED VALVE ASSY
5SL-14890-00-00
$76.99
Available: Ships in 7-12 days.
Add to View Price
#23 CAP, CASE
5VY-14899-00-00
Superseded by 5VY-14899-01-00
$27.99
Available: Ships in 7-12 days.
Add to View Price
#24 BOLT, HEXAGON SOCKET HEAD
90110-06175-00
Superseded by 91314-06020-00
$1.10
In Stock: Ready to ship.
Add to View Price
#25 BOLT
90109-066F0-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#26 RUBBER, MOUNT 1
5VY-1111G-00-00
$9.99
In Stock: Ready to ship.
Add to View Price
