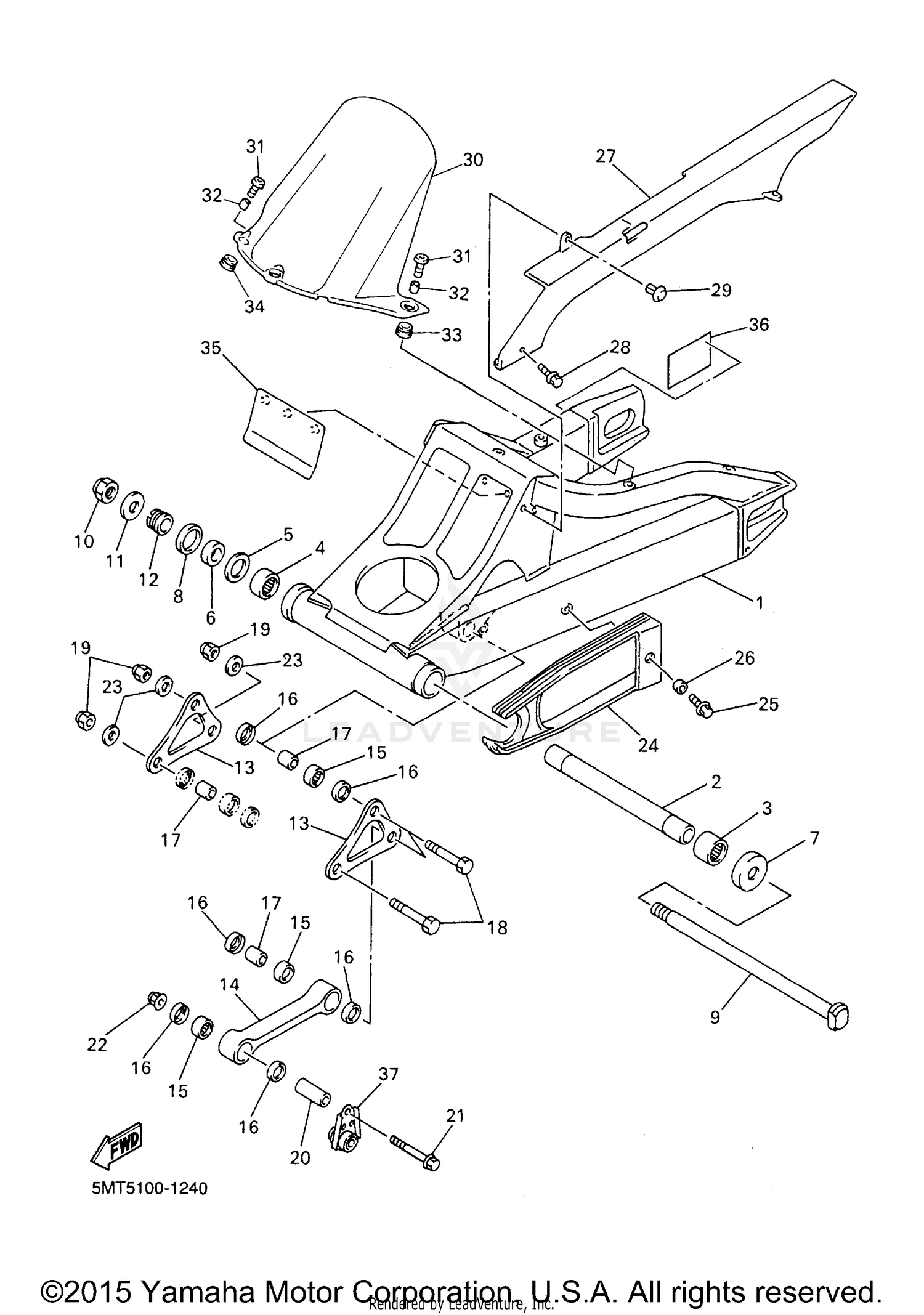

2002 Yamaha YZF R6 REAR ARM OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 REAR ARM COMP.
5MT-22110-01-00
$1,164.99
Unavailable
#2 BUSH
5EB-22184-00-00
$57.99
Available: Ships in 7-12 days.
Add to View Price
#3 BEARING
93315-42523-00
$19.99
Available: Ships in 7-12 days.
Add to View Price
#4 BEARING
93315-42536-00
Superseded by 93317-425B7-00
$22.99
Unavailable
#5 SHIM
5EB-22127-00-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#6 BUSH 1
5EB-22123-00-00
$12.99
Available: Ships in 7-12 days.
Add to View Price
#7 COVER, THRUST 1
3FV-22128-00-00
$31.99
Available: Ships in 7-12 days.
Add to View Price
#8 OIL SEAL
93109-33052-00
$11.99
Available: Ships in 7-12 days.
Add to View Price
#9 SHAFT, PIVOT
4FN-22141-00-00
$77.99
Available: Ships in 7-12 days.
Add to View Price
#10 NUT, SELF-LOCKING
90185-18104-00
Superseded by 90185-18009-00
$12.99
Available: Ships in 7-12 days.
Add to View Price
#11 WASHER, PLATE
90201-18264-00
$4.99
Available: Ships in 7-12 days.
Add to View Price
#12 BOLT
5EB-22125-00-00
$19.99
Available: Ships in 7-12 days.
Add to View Price
#13 ARM, RELAY
5EB-2217A-00-00
$12.49
Available: Ships in 7-12 days.
Add to View Price
#14 ARM 1
5EB-2217M-00-00
$89.99
Available: Ships in 7-12 days.
Add to View Price
#15 BEARING
93315-31759-00
$26.99
Available: Ships in 7-12 days.
Add to View Price
#16 OIL SEAL
93109-17071-00
$4.90
Available: Ships in 7-12 days.
Add to View Price
#17 COLLAR
90387-127W0-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#18 BOLT
90101-10709-00
$9.49
Unavailable
#19 NUT, U
95617-10100-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#20 COLLAR
90387-1012B-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#21 BOLT, FLANGE
90105-10323-00
$4.35
In Stock: Ready to ship.
Add to View Price
#22 NUT, U FLANGE
95607-10200-00
$3.30
In Stock: Ready to ship.
Add to View Price
#23 WASHER, PLATE
90201-101J1-00
$6.49
In Stock: Ready to ship.
Add to View Price
#24 SEAL, GUARD
5EB-22151-00-00
$85.99
Available: Ships in 7-12 days.
Add to View Price
#25 BOLT, WITH WASHER
90119-06118-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#26 COLLAR
90387-06022-00
Superseded by 90387-06106-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#27 CASE, CHAIN
5EB-22311-00-00
Superseded by 5EB-22311-01-00
$69.99
Available: Ships in 7-12 days.
Add to View Price
#28 BOLT, WITH WASHER
90119-06060-00
Superseded by 90119-06226-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#29 RIVET
90269-07076-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#30 REAR FENDER COMP.
5MT-21650-00-00
$34.99
Available: Ships in 7-12 days.
Add to View Price
#31 SCREW
90149-06302-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#32 COLLAR
90387-0600V-00
$6.49
In Stock: Ready to ship.
Add to View Price
#33 GROMMET
90480-12005-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#34 GROMMET
90480-12003-00
$4.90
Available: Ships in 7-12 days.
Add to View Price
#35 FLAP
30X-21621-00-00
$18.49
Available: Ships in 7-12 days.
Add to View Price
#36 PLATE, EPA 1 (NON CALIFORNIA)
5MT-2179V-10-00
$2.85
Unavailable
# PLATE, EPA 2 (CALIFORNIA)
5MT-2179R-10-00
$5.49
Unavailable
#37 STAY, MUFFLER 2
5EB-21446-00-00
$27.99
Available: Ships in 7-12 days.
Add to View Price
