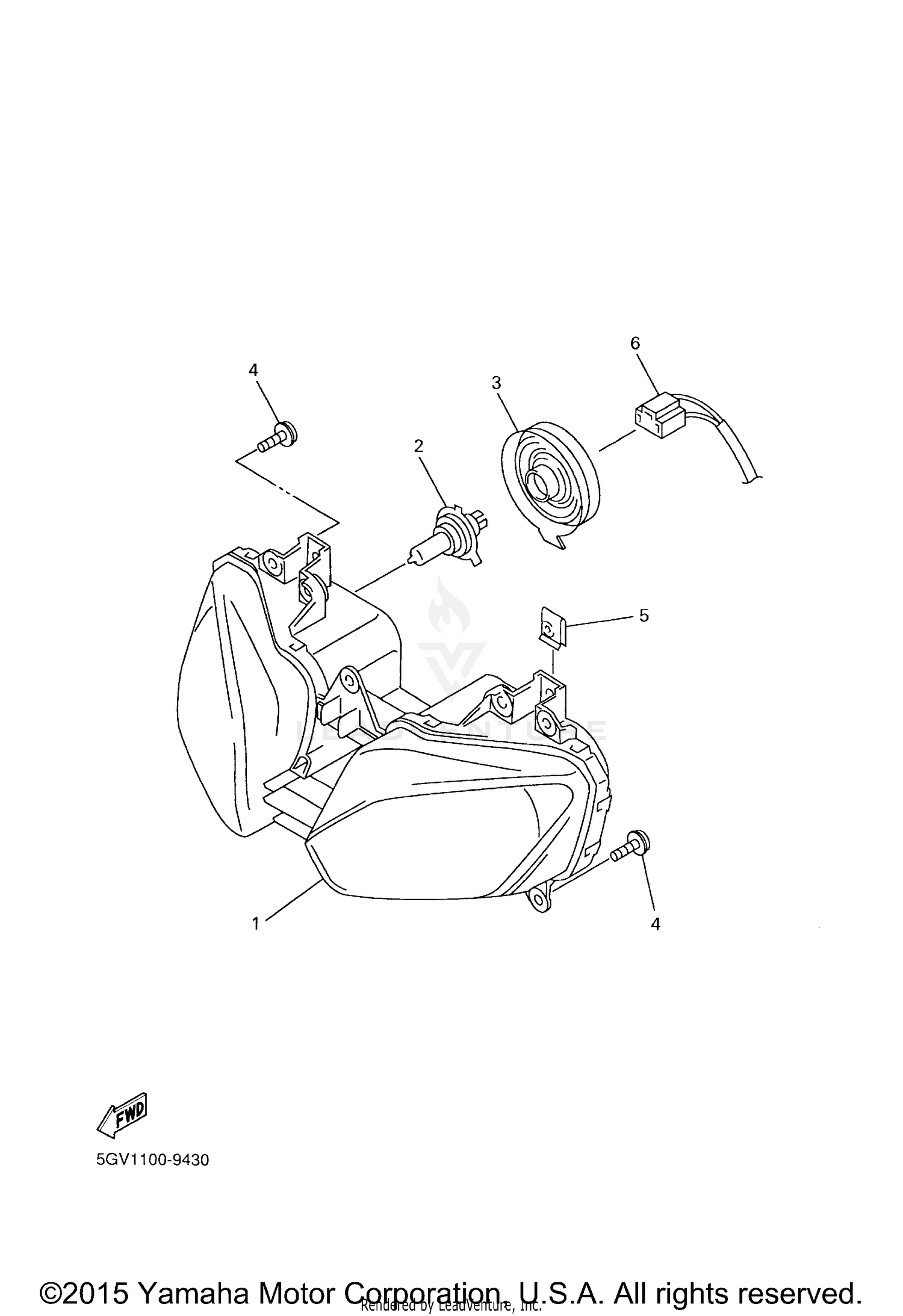

2002 Yamaha YZF R6 HEADLIGHT OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 HEADLIGHT UNIT ASSY
5EB-84310-20-00
Superseded by 5EB-84310-21-00
$394.99
Available: Ships in 7-12 days.
Add to View Price
#2 BULB (12V-60/55W)
8V0-84314-00-00
Superseded by 5V2-84314-00-XX
$23.99
Available: Ships in 7-12 days.
Add to View Price
#3 COVER, SOCKET
4KM-84397-00-00
$27.99
Available: Ships in 7-12 days.
Add to View Price
#4 SCREW, TAPPING
90164-05014-00
Superseded by 90164-05001-00
$6.49
In Stock: Ready to ship.
Add to View Price
#5 NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#6 CORD, HEADLIGHT
5MT-84359-10-00
$180.99
Available: Ships in 7-12 days.
Add to View Price
