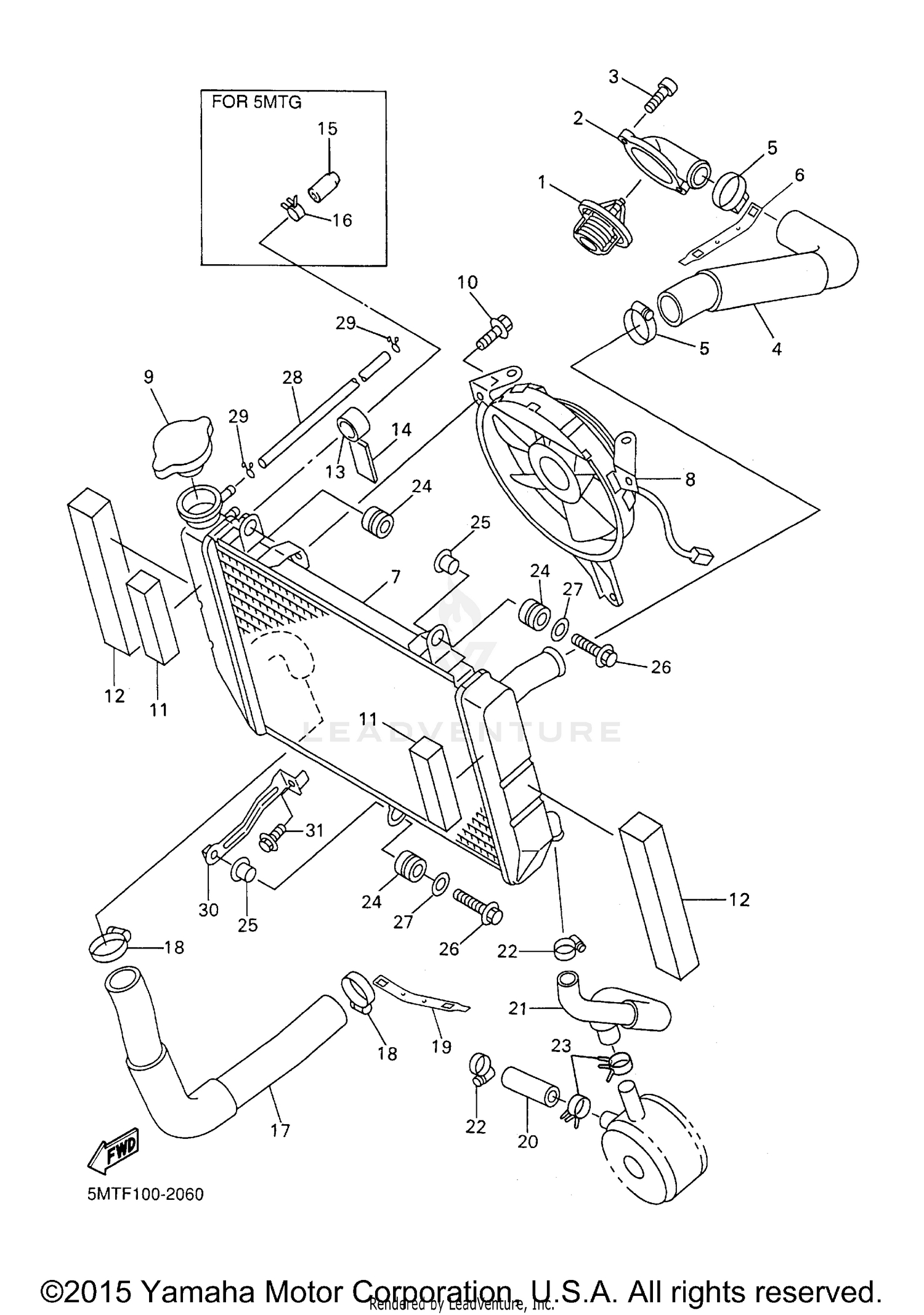

2002 Yamaha YZF R6 RADIATOR HOSE OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 THERMOSTAT ASSY
3GM-12410-00-00
Superseded by 3GM-12410-01-00
$49.99
Unavailable
# THERMOSTAT ASSY
5EB-12410-00-00
$74.99
Available: Ships in 7-12 days.
Add to View Price
#2 COVER, THERMOSTAT
5EB-12413-00-00
$58.99
Available: Ships in 7-12 days.
Add to View Price
#3 BOLT
91317-06020-00
$5.99
In Stock: Ready to ship.
Add to View Price
#4 HOSE 3
5EB-12578-00-00
$35.99
Available: Ships in 7-12 days.
Add to View Price
#5 HOSE CLAMP ASSY
90450-35001-00
$33.99
Available: Ships in 7-12 days.
Add to View Price
#6 COVER 2
5GV-1246E-00-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#7 RADIATOR ASSY
5EB-12461-00-00
$333.32
Available: Ships in 7-12 days.
Add to View Price
#8 BLOWER ASSY
5EB-12405-00-00
$368.21
Available: Ships in 7-12 days.
Add to View Price
#9 CAP, RADIATOR
4JH-12462-00-00
Superseded by 5SL-12462-00-00
$44.99
In Stock: Ready to ship.
Add to View Price
#10 BOLT,FLANGE
95817-06010-00
$6.49
In Stock: Ready to ship.
Add to View Price
#11 DAMPER, AIR SHROUD 2
5EB-12659-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#12 DAMPER, AIR SHROUD 3
5EB-12668-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#13 PROTECTOR
5EB-12498-00-00
$2.20
Available: Ships in 7-12 days.
Add to View Price
#14 COVER 1
3XV-1246A-10-00
$6.99
Unavailable
#15 PLUG, BLIND
16G-13569-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#16 CLIP
90467-11028-00
$5.20
Available: Ships in 7-12 days.
Add to View Price
#17 HOSE 4
5EB-12579-00-00
$46.99
Available: Ships in 7-12 days.
Add to View Price
#18 HOSE CLAMP ASSY
90450-35001-00
$33.99
Unavailable
#19 COVER 2
5GV-1246E-00-00
$4.35
Unavailable
#20 HOSE 5
5EB-12588-00-00
$4.50
Unavailable
#21 HOSE 6
5EB-12589-00-00
$24.99
Available: Ships in 7-12 days.
Add to View Price
#22 HOSE CLAMP ASSY
90450-25037-00
Superseded by 90450-22M14-00
$13.99
Available: Ships in 7-12 days.
Add to View Price
#23 CLIP
90467-19160-00
Superseded by 90467-19051-00
$4.90
Available: Ships in 7-12 days.
Add to View Price
#24 GROMMET
90480-15363-00
$6.49
In Stock: Ready to ship.
Add to View Price
#25 COLLAR
90387-07391-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#26 BOLT, FLANGE
95817-06025-00
$6.49
In Stock: Ready to ship.
Add to View Price
#27 WASHER, PLATE
90201-063J2-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#28 HOSE (L700)
90445-087K6-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#29 CLIP
90467-07093-00
$2.20
Available: Ships in 7-12 days.
Add to View Price
#30 BRACKET 1
5EB-1244E-00-00
$13.99
Unavailable
#31 BOLT, FLANGE
95817-06012-00
$1.10
Available: Ships in 7-12 days.
Add to View Price
