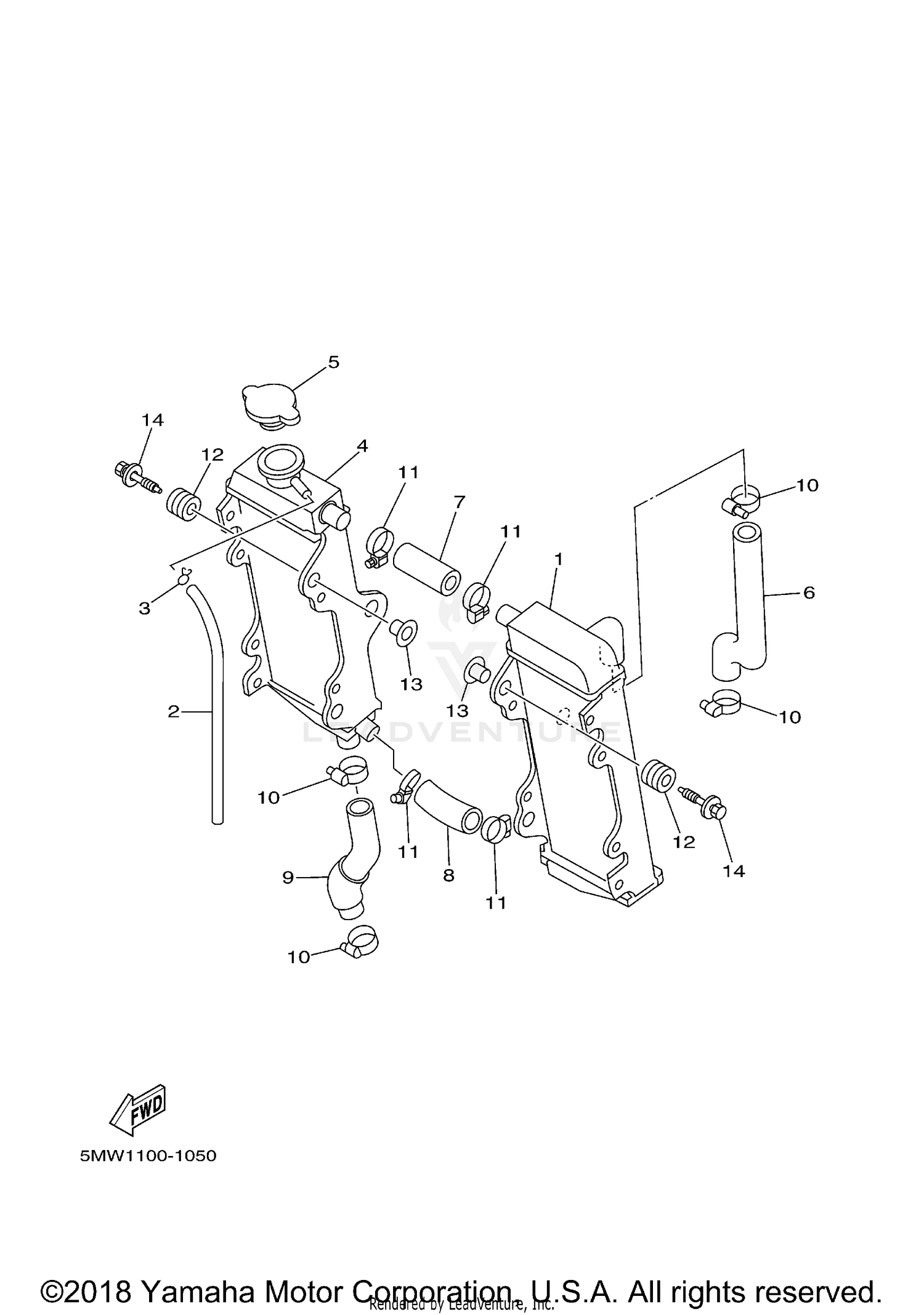

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY
4SR-1240A-10-00
|
$379.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, FLEXIBLE VINYL
91A20-05065-00
Superseded by 91A20-05080-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
RADIATOR ASSY
4SR-12461-10-00
|
$391.99 | ||
|
Unavailable |
|||
|
#5
CAP, RADIATOR
5HD-12462-00-00
Superseded by 4FL-12462-00-00
|
$68.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PIPE 1
5CU-12481-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#7
HOSE 2
4SS-12482-00-00
Superseded by 5BE-12577-01-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE 3
5MW-12483-00-00
|
$4.70 | ||
|
Unavailable |
|||
|
#9
PIPE 4
5CU-12484-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#10
HOSE CLAMP ASSY
90450-28014-00
Superseded by 90450-28001-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE CLAMP ASSY
90450-25037-00
Superseded by 90450-22M14-00
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GROMMET
90480-15528-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-0614M-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WITH WASHER
90119-06214-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
