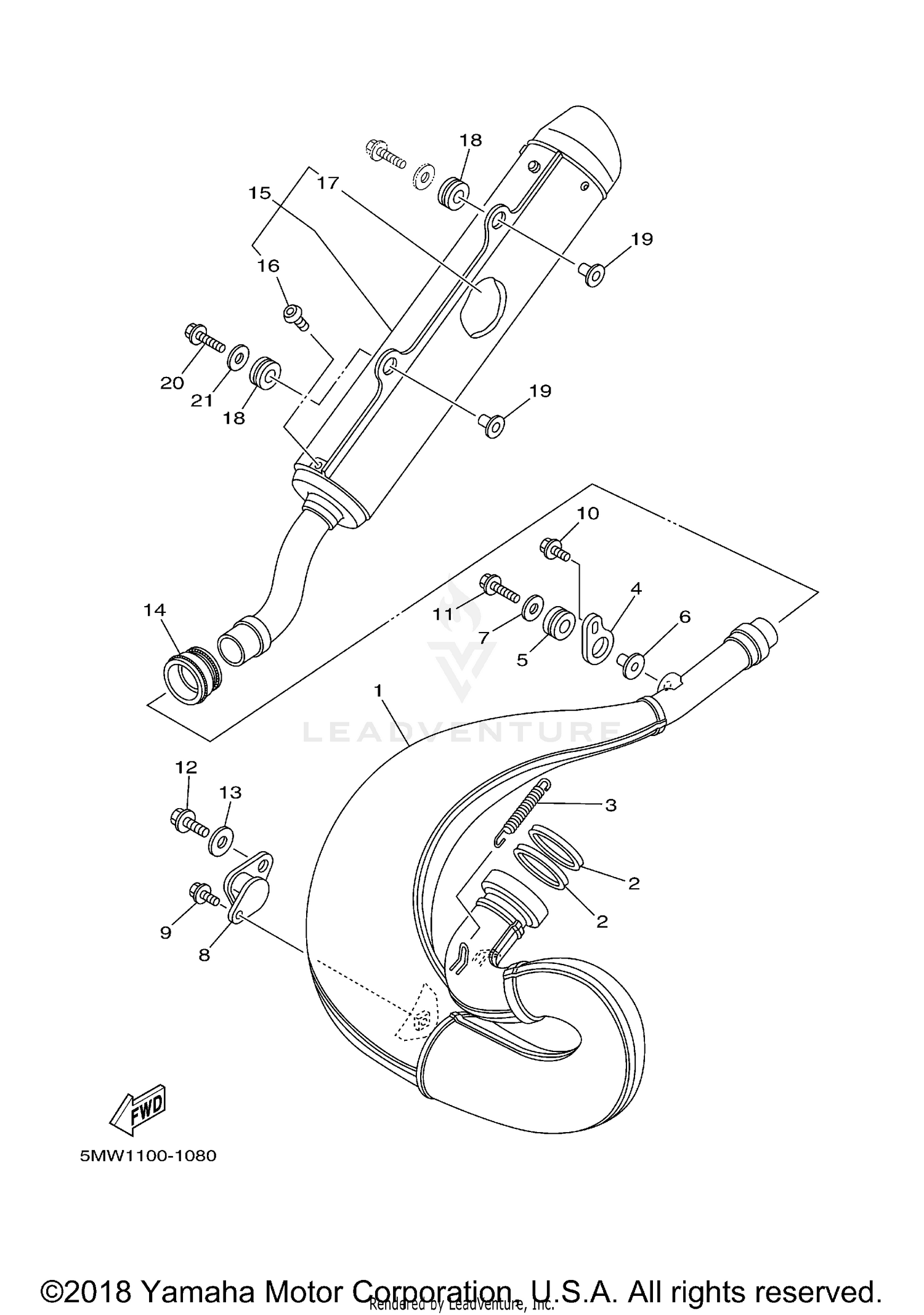

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSY 1
5MW-14610-10-00
|
$425.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL, EXHAUST
5MW-14642-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SPRING, TENSION
90507-20052-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
STAY, MUFFLER 1
5CU-14771-00-00
Superseded by 5CU-14771-01-00
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GROMMET
90480-16561-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
COLLAR
90387-063G3-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
STAY, MUFFLER 2
483-14781-02-00
Superseded by 483-14781-03-00
|
$66.99 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-06192-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE
95027-08012-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-08730-00
Superseded by 90201-087F0-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
JOINT, EXHAUST 1
3JE-14615-01-00
|
$60.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SILENCER, EXHAUST
5MW-14753-10-00
|
$312.99 | ||
|
Unavailable |
|||
|
#16
BOLT, BUTTON HEAD
92017-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
FIBER
5HC-1469A-10-00
|
$154.01 | ||
|
Unavailable |
|||
|
#18
GROMMET
90480-16561-00
|
$18.49 | ||
|
Unavailable |
|||
|
#19
COLLAR
90387-063G3-00
|
$9.49 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$6.49 | ||
|
Unavailable |
|||
