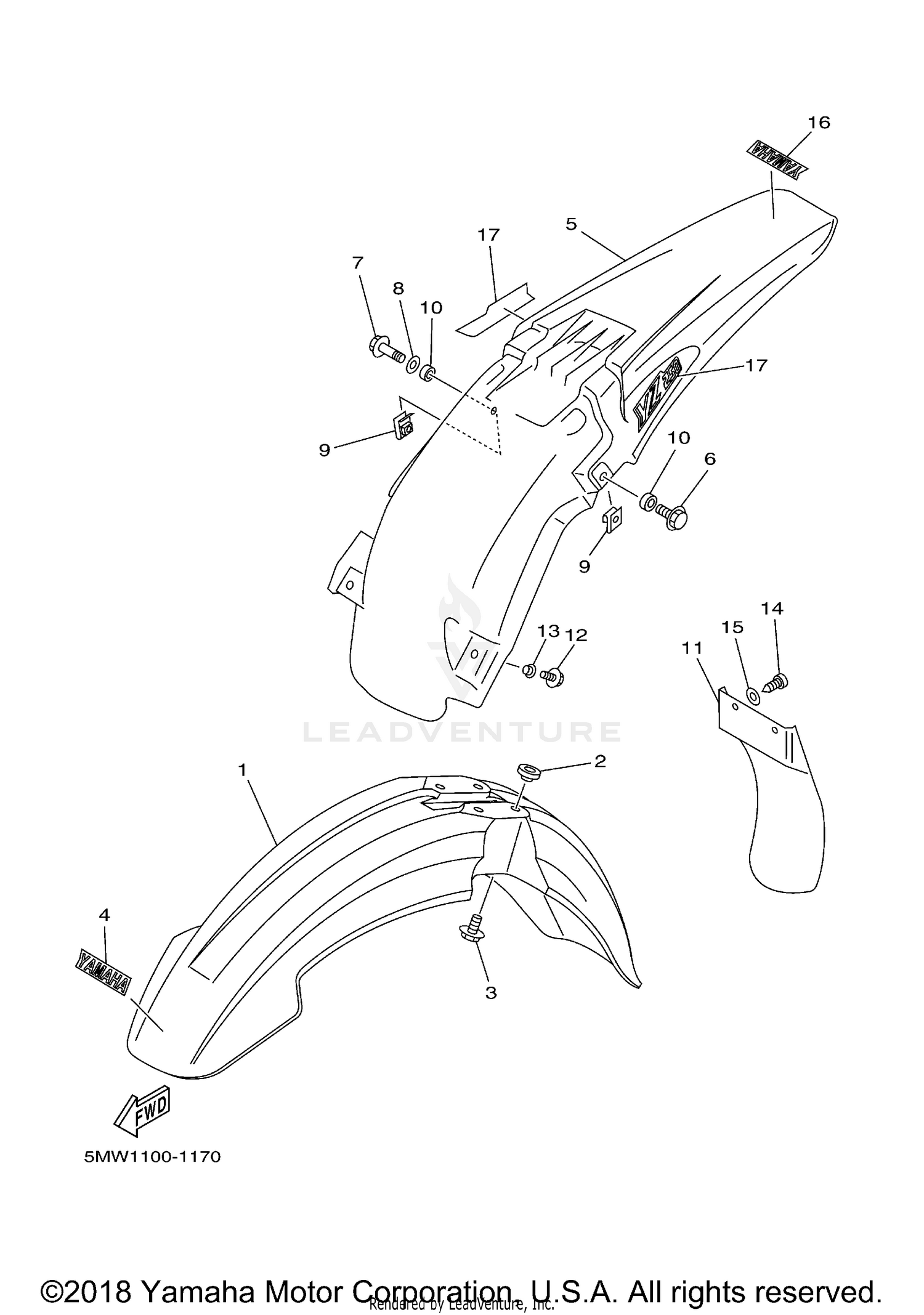

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
5HD-21511-00-00
|
$45.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
COLLAR
3JD-21748-00-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06096-00
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
EMBLEM YAMAHA
4ES-2153E-01-00
Superseded by 4ES-2153E-02-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER, REAR
5BE-21611-10-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, WITH WASHER
90119-06192-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT, FLANGE
95027-06030-00
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
NUT, SPRING
90183-06023-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
COLLAR
90387-0701A-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GUARD, FLAP
5BE-21642-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WITH WASHER
90119-06225-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-06009-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING
97707-60016-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-06557-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
EMBLEM YAMAHA
4ES-2153E-01-00
Superseded by 4ES-2153E-02-00
|
$15.49 | ||
|
Unavailable |
|||
|
#17
EMBLEM 1
5MW-21781-00-00
Superseded by 5MW-21781-09-00
|
$12.99 | ||
|
Unavailable |
|||
