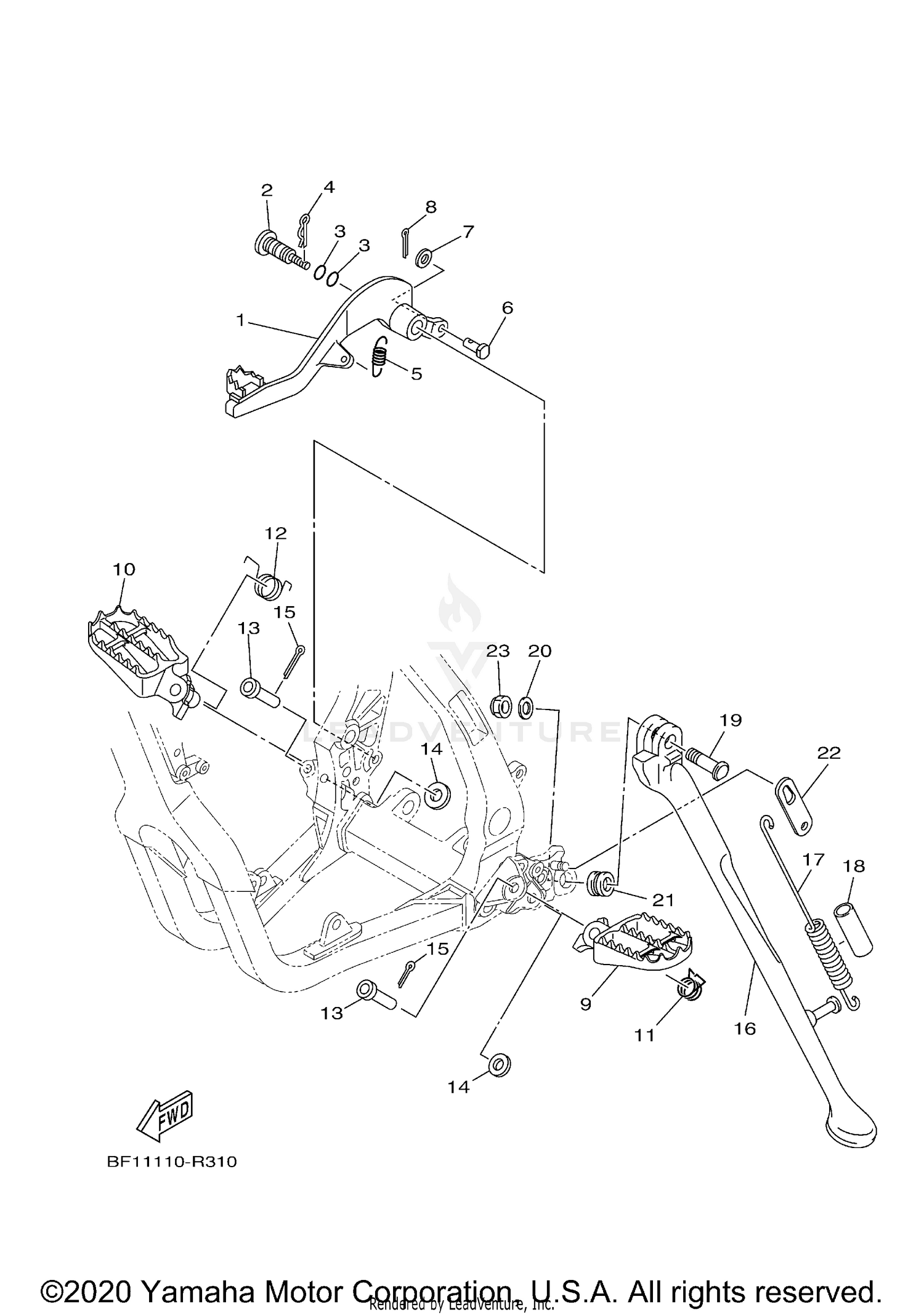

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
4XM-27200-21-00
|
$101.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
BOLT
1C3-27217-10-00
|
$30.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
O-RING
93210-11073-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CLIP
90468-16001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TENSION
90506-16007-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, CLEVIS
90240-08120-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-08044-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN. COTTER
91402-20012-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
FOOTREST 1
17D-27411-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FOOTREST 2
17D-27421-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, TORSION
90508-28015-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, TORSION
90508-28018-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PIN, CLEVIS
90240-10004-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-10032-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
STAND, SIDE
5UM-27311-E1-00
|
$151.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, TENSION
90506-30005-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE (L95)
90445-217G3-00
Superseded by 90445-212G3-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90109-10026-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-10045-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-1003G-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
LINK, SIDE STAND
5UM-27315-E0-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, SELF-LOCKING
90185-10018-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
