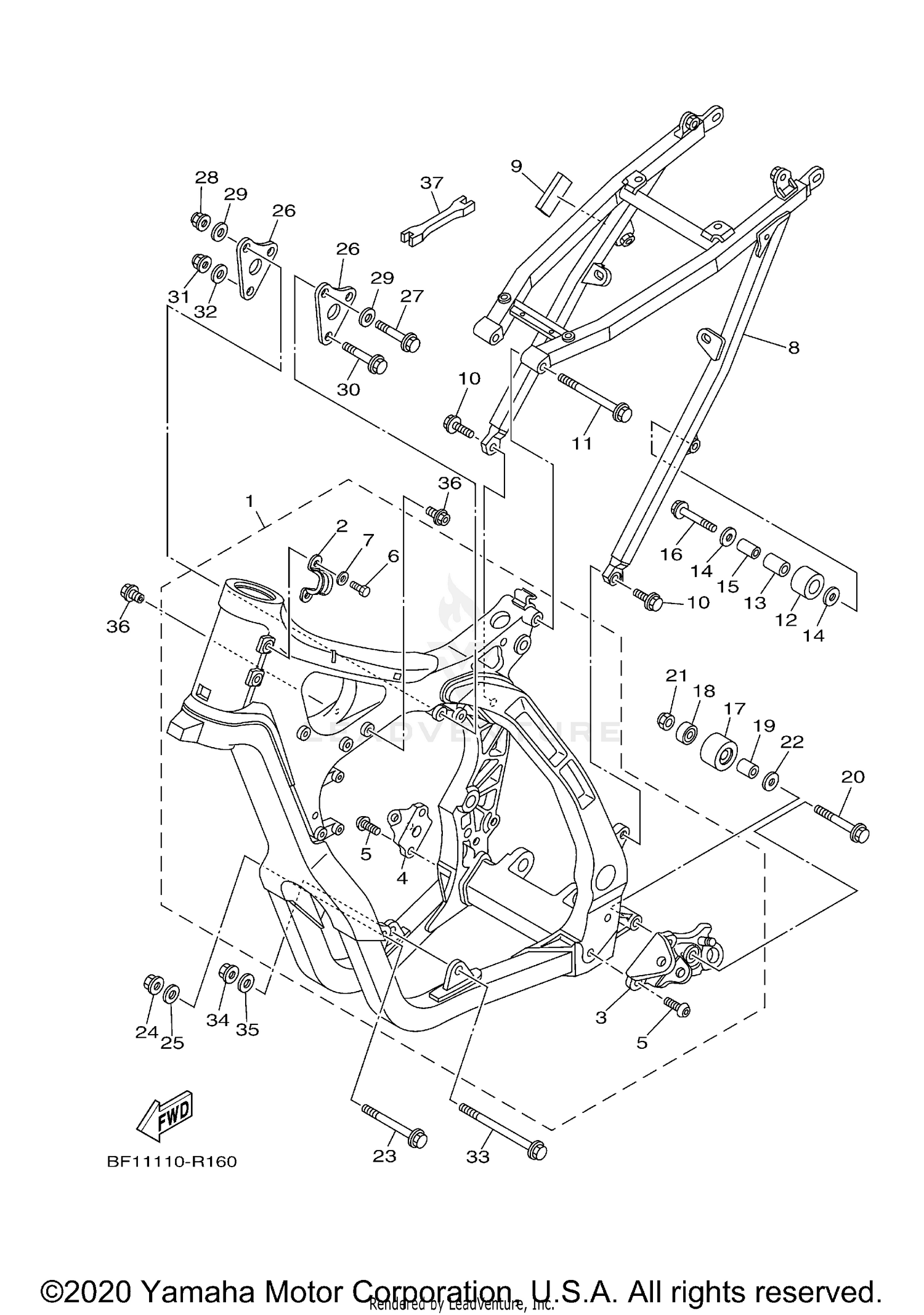

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FRAME COMP.
BF1-21101-00-00
|
$2,706.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP, WIRE HARNESS 2
1C3-21336-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FOOTREST
BF1-21447-00-00
|
$374.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, FOOTREST
1C3-21448-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
90149-10031-00
Superseded by 90149-10033-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON
97004-05012-00
Superseded by 97017-05012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92904-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
REAR FRAME COMP.
1SS-21190-00-00
|
$577.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER
5GJ-21717-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-08085-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-08132-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
TENSIONER
30X-22178-00-00
|
$38.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BUSH
4V4-22184-00-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-08045-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-08041-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95022-08040-00
Superseded by 95024-08040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
TENSIONER
3JD-22178-20-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
93300-60839-00
Superseded by 93300-60804-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
COLLAR
90387-086N4-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (SMALL HEAD)
95024-08065-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, U
90185-08009-00
Superseded by 95617-08100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-08043-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
90105-10172-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
90179-10658-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, PLAIN
92902-10200-00
Superseded by 92990-10200-00
|
$3.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BRACKET, REAR UPPER 1
5NX-21425-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
90105-08131-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
90179-08674-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-08055-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
90105-10173-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT
90179-10658-00
|
$10.49 | ||
|
Unavailable |
|||
|
#32
WASHER, PLAIN
92902-10200-00
Superseded by 92990-10200-00
|
$3.72 | ||
|
Unavailable |
|||
|
#33
BOLT, FLANGE
90105-10174-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT
90179-10658-00
|
$10.49 | ||
|
Unavailable |
|||
|
#35
WASHER, PLAIN
92902-10200-00
Superseded by 92990-10200-00
|
$3.72 | ||
|
Unavailable |
|||
|
#36
NUT
1C3-21244-10-00
Superseded by 1C3-21244-20-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
WRENCH, HEXAGON
5ET-28166-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
