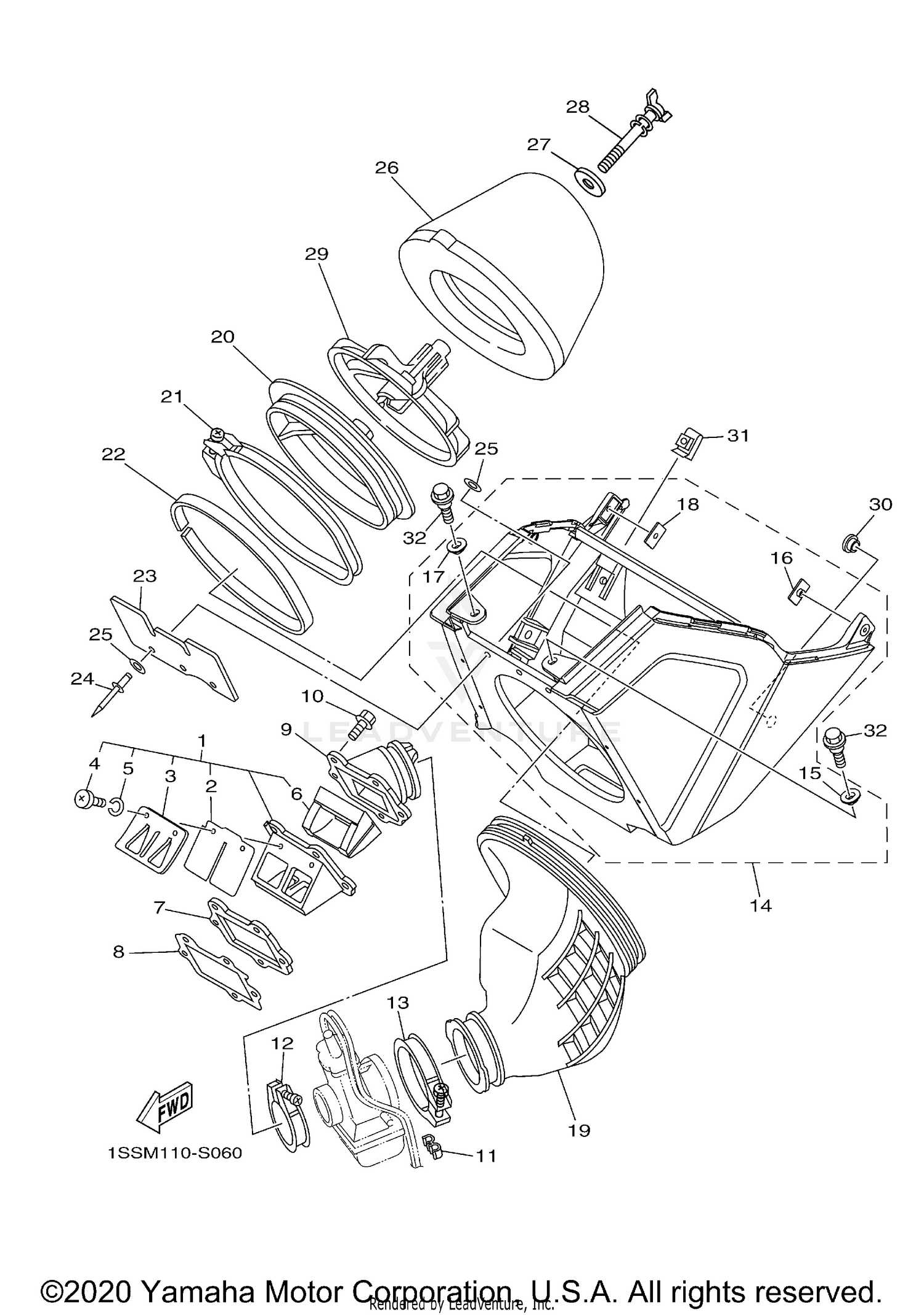

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSY
5NX-13610-10-00
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REED, VALVE
5NX-13613-00-00
|
$93.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
STOPPER, REED VALVE
4XL-13616-10-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98502-03008-00
Superseded by 98580-03008-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92902-03100-00
Superseded by 92990-03100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, REED VALVE
4XL-13625-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, REED VALVE
5NX-13624-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, VALVE SEAT
5XF-13622-00-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
JOINT, CARBURETOR
5NX-13565-00-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
91312-06025-00
Superseded by 91317-06025-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CLAMP
90464-06214-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE CLAMP ASSY
90450-51001-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
HOSE CLAMP ASSY
90450-70003-00
Superseded by 90450-70002-00
|
$24.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
AIR CLEANER CASE ASSY
1SS-14401-00-00
|
$211.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
17D-14449-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, REAR FENDER
5XE-21635-10-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COLLAR
17D-14449-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#18
NUT, REAR FENDER
5XE-21635-10-00
|
$14.49 | ||
|
Unavailable |
|||
|
#19
JOINT, AIR CLEANER 1
5NX-14453-00-00
Superseded by 5NX-14453-01-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER, GUIDE
5NY-14459-00-00
|
$41.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BAND
5NY-14455-20-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER
5NY-14442-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER 1
5NY-14417-00-00
Superseded by 5NY-14417-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
RIVET, BLIND
90267-32070-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-03313-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
ELEMENT, AIR CLEANER
4XM-14451-00-00
Superseded by 4XM-14451-01-00
|
$41.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER
90209-06096-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, WING
90122-06005-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
GUIDE
3JD-14458-01-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GROMMET
90480-10M28-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
NUT, SPRING
90183-06023-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, FLANGE
90105-06170-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
