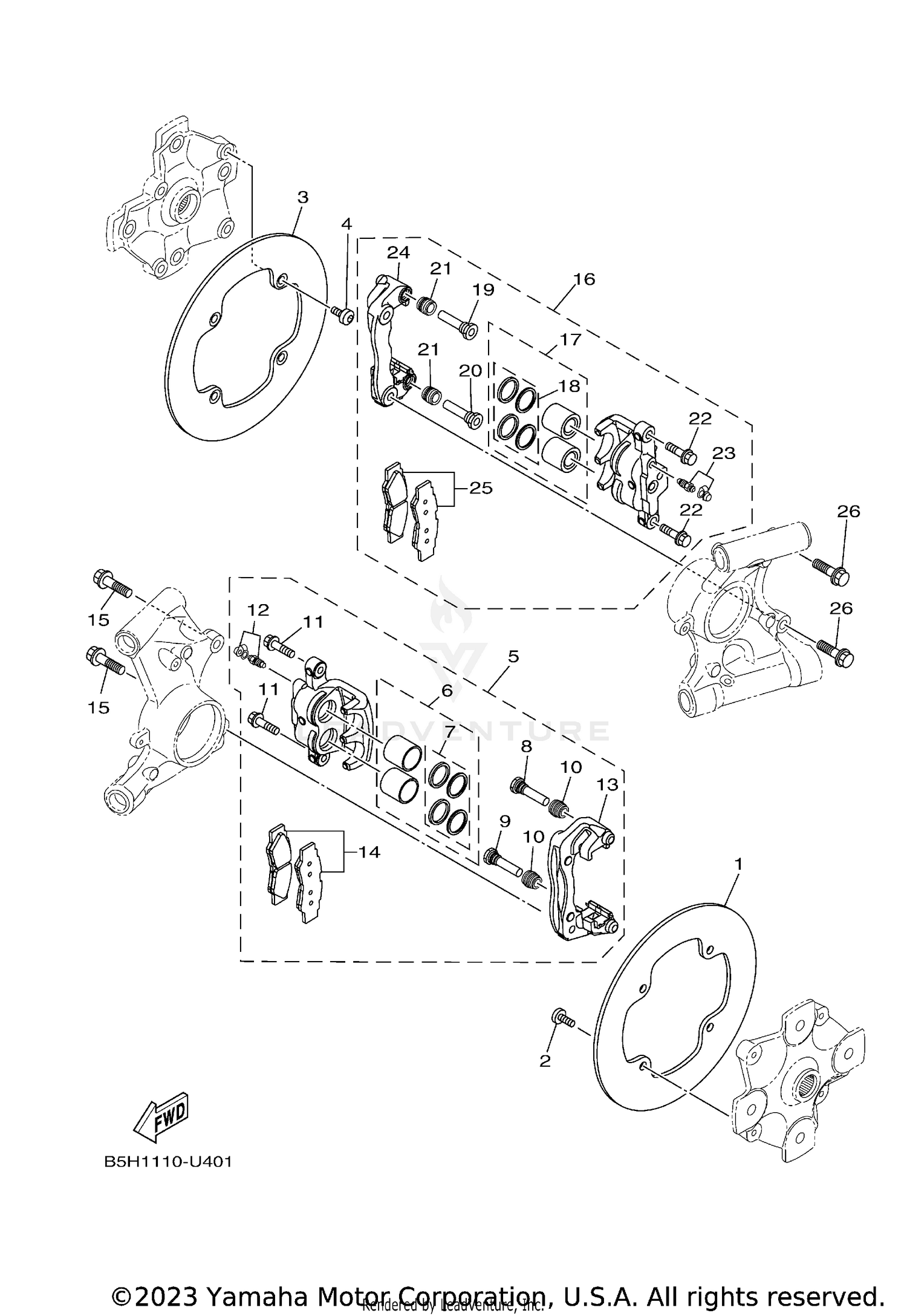

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, REAR BRAKE 1
B5H-F582V-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90109-08253-00
Superseded by 90109-08077-00
|
$3.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
DISC, REAR BRAKE 1
B5H-F582V-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#4
BOLT
90109-08253-00
Superseded by 90109-08077-00
|
$3.75 | ||
|
Unavailable |
|||
|
#5
CALIPER ASSY, REAR 1
B5H-2580V-00-00
Superseded by B5H-2580V-01-00
|
$470.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
. .PISTON ASSY, CALIPER
B5H-25802-10-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CALIPER SEAL KIT
3FV-25803-10-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
2HC-25926-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
2HC-25926-10-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT, CALIPER
2HC-25917-00-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FITTING
2HC-25833-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, SUPPORT
2HC-25921-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
. .BRAKE PAD KIT 2
B5H-25806-00-00
Superseded by B5H-25806-01-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90105-10405-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CALIPER ASSY, REAR
B5H-2580W-00-00
Superseded by B5H-2580W-01-00
|
$436.99 | ||
|
Unavailable |
|||
|
#17
. .PISTON ASSY, CALIPER
B5H-25802-10-00
|
$46.99 | ||
|
Unavailable |
|||
|
#18
CALIPER SEAL KIT
3FV-25803-10-00
|
$10.99 | ||
|
Unavailable |
|||
|
#19
BOLT
2HC-25926-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#20
BOLT
2HC-25926-10-00
|
$24.99 | ||
|
Unavailable |
|||
|
#21
BOOT, CALIPER
2HC-25917-00-00
|
$4.90 | ||
|
Unavailable |
|||
|
#22
BOLT, FITTING
2HC-25833-00-00
|
$2.25 | ||
|
Unavailable |
|||
|
#23
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#24
BRACKET, SUPPORT
2HC-25921-00-00
|
$104.99 | ||
|
Unavailable |
|||
|
#25
. .BRAKE PAD KIT 2
B5H-25806-00-00
Superseded by B5H-25806-01-00
|
$100.99 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE
90105-10405-00
|
$6.49 | ||
|
Unavailable |
|||
