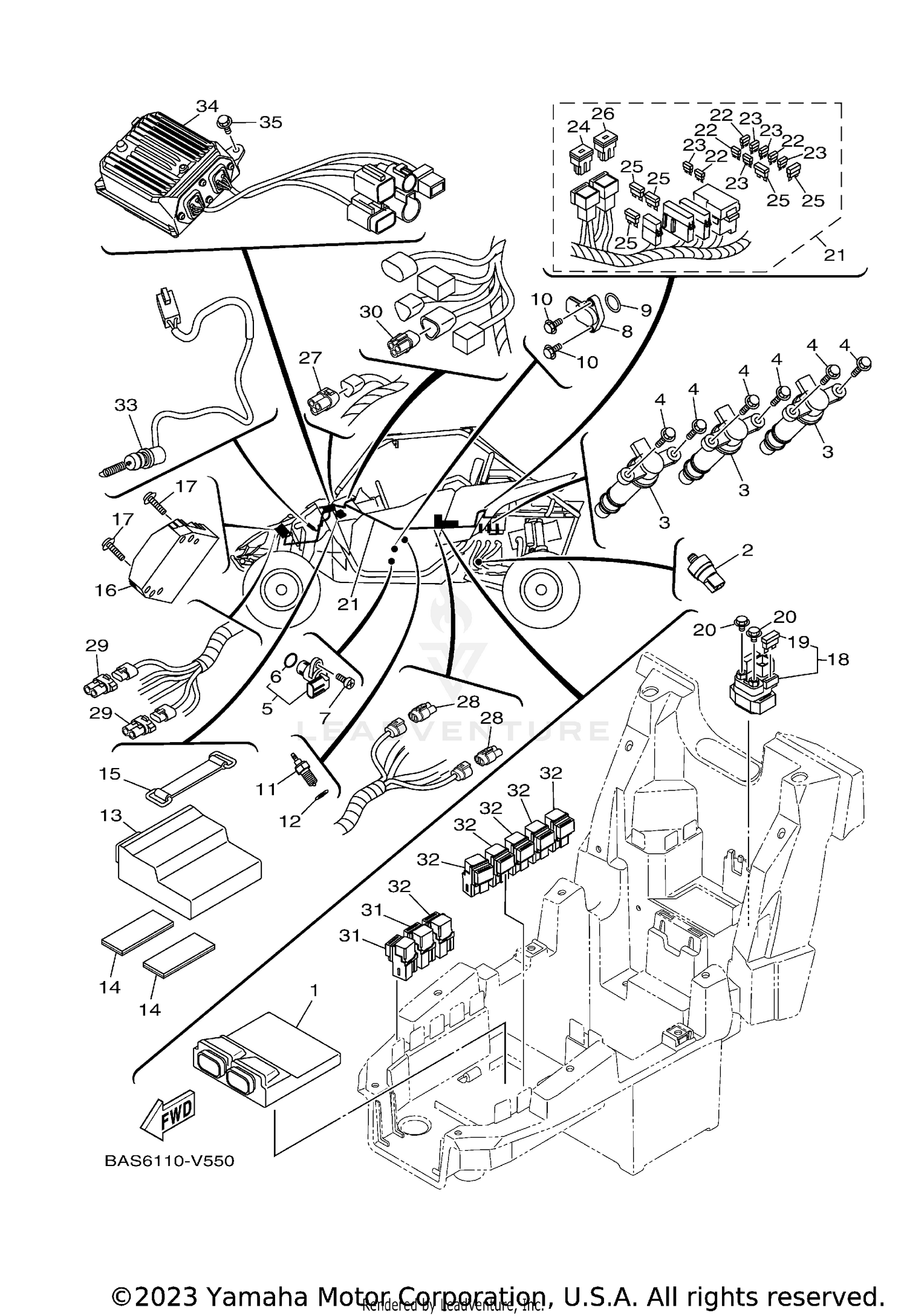

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CONTROL UNI
B5H-8591A-20-00
Superseded by B5H-8591A-21-00
|
$1,049.99 | ||
|
Unavailable |
|||
|
#2
OIL PRESSURE SWITCH ASSY
8FP-82504-00-00
Superseded by 8FP-82504-01-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COIL ASSY
2HC-82310-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95812-06025-00
Superseded by 95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
SENSOR, SPEED
1TP-83755-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
4D9-81168-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (4MY)
90110-06193-00
Superseded by 91317-06016-00
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SENSOR, GEAR POSITION
2HC-85899-10-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-17008-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-05067-00
Superseded by 90110-05038-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
MOTOR CONTROL UNIT A
B5H-86510-00-00
|
$1,590.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER
34D-82176-00-00
Superseded by 1HP-H2176-01-00
|
$2.40 | ||
|
Unavailable |
|||
|
#15
BAND, BATTERY
2T4-82131-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RECTIFIER & REGULATO
B5H-81960-00-00
|
$286.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-06833-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
STARTER RELAY ASSY (RC19-077A)
4D3-81940-00-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUSE (15A-BLUE)
36Y-82151-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95022-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WIRE HARNESS ASSY
B5H-82590-11-00
|
$1,549.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUSE (15A)
5JJ-82151-10-00
Superseded by 67F-82151-50-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#24
SLOW BLOW FUSE
5PS-82151-00-00
Superseded by JR9-82151-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
FUSE (30A-BL)
5JJ-82151-60-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
FUSE (50A)
5JW-82151-10-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CONNECTOR
8CR-82378-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CONNECTOR
B57-82378-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CONNECTOR
B5H-82378-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CONNECTOR
B5H-82529-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
RELAY ASSY (G8HN-1C4T-DJ-Y52)
5DM-81950-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
RELAY ASSY (8DM-11)
8DM-81950-11-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
STOP SWITCH ASSY
B90-82530-00-00
Superseded by B90-82530-01-00
|
$57.99 | ||
|
Unavailable |
|||
|
#34
POWER STRG. CONT. UNIT ASSY
B5H-859A0-00-00
Superseded by B5H-859A0-01-00
|
$875.99 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE
95812-06016-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
