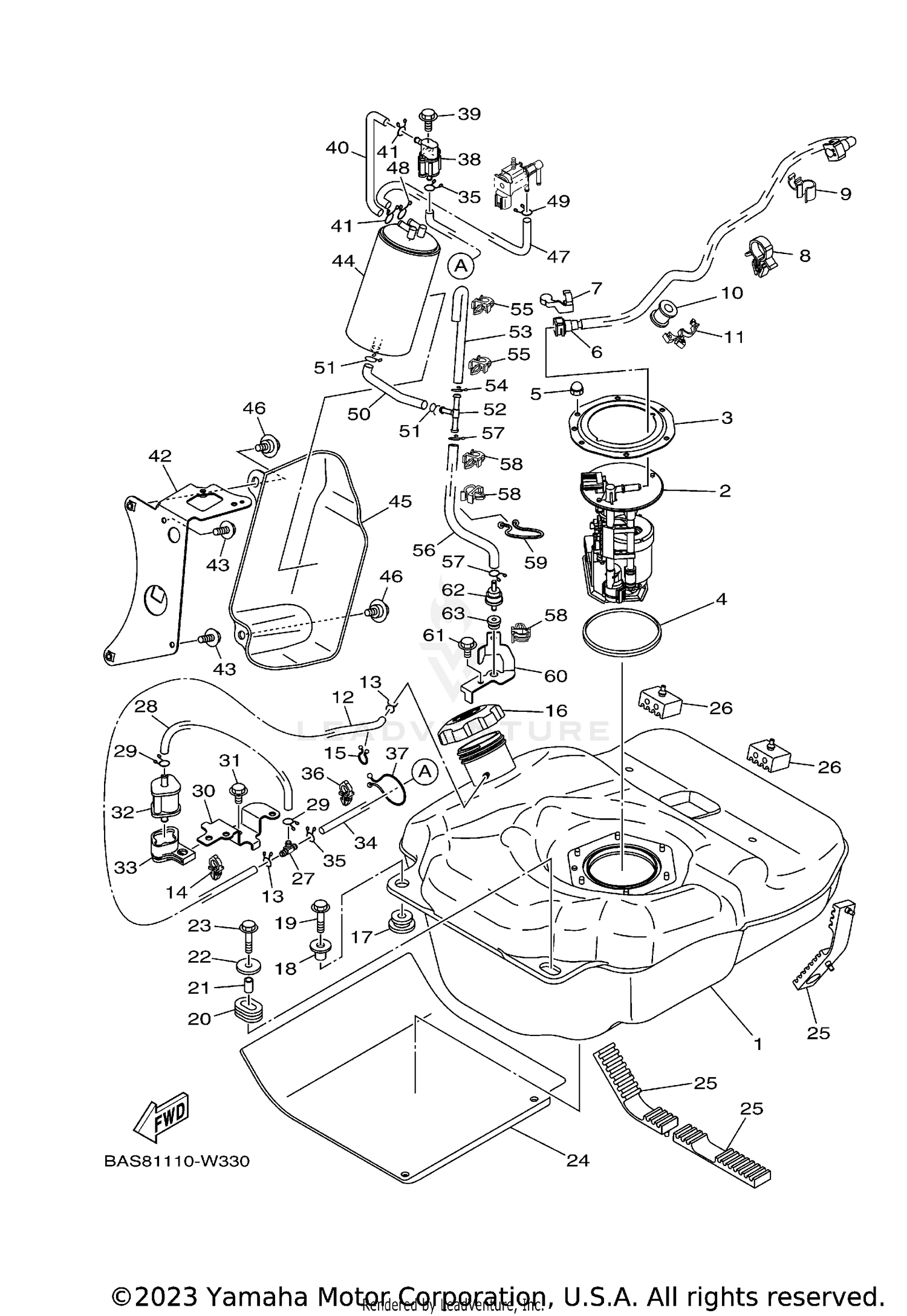

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
2HC-F4110-00-00
|
$228.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUEL PUMP COMP.
B16-13907-03-00
|
$505.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FUEL PUMP
3B4-24491-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
1S3-24486-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, CROWN
95302-06800-00
Superseded by 95380-06800-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, FUEL 1
2HC-13971-02-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
90464-14004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
90464-15157-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CLAMP
90464-15007-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
90480-20543-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90464-20010-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE 2
B5H-F41B5-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CLAMP
90464-10833-00
Superseded by 90464-12830-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90464-12M48-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP ASSY
2P5-24610-00-00
Superseded by BVG-24610-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#17
GROMMET
90480-18016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-075H4-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT,FLANGE
95802-06030-00
Superseded by 95817-06030-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
GROMMET
90480-01400-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR (2UJ)
90387-061V1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-065G8-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT,FLANGE
95802-06030-00
Superseded by 95817-06030-00
|
$4.65 | ||
|
Unavailable |
|||
|
#24
DAMPER, PLATE 1
2HC-F414H-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER, LOCATING 1
2HC-F4181-00-00
|
$4.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
DAMPER, LOCATING 2
2MB-F4182-00-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
WAY 3
90413-06031-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE
90445-09028-00
Superseded by 90445-09029-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#30
BRKT. 7
B5H-F8468-00-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
95802-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
PIPE JOINT ASSY
3B4-24380-11-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BAND 1
3B4-24398-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOSE (L1220)
90445-09837-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#36
CLAMP
90464-10833-00
Superseded by 90464-12830-00
|
$1.60 | ||
|
Unavailable |
|||
|
#37
CLAMP
90464-37257-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIPE JOINT ASSY
28P-24380-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE
95802-06014-00
Superseded by 95817-06014-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
HOSE 1
B5H-F247A-00-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#42
CANISTER HOLDER ASSY
B5H-F4190-02-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE
95802-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
Unavailable |
|||
|
#44
CANISTER ASSY
7CC-F4170-02-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
COVER, CANISTER
B5H-F419E-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT
90109-06202-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#47
HOSE 3
B5H-F247C-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#49
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
HOSE (L170)
90445-11052-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
Unavailable |
|||
|
#52
WAY 3
90413-08012-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#53
HOSE 4
B5H-F247D-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
Unavailable |
|||
|
#55
CLAMP
90464-14M55-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#56
HOSE (L400)
90445-11053-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
Unavailable |
|||
|
#58
CLAMP
90464-14M55-00
|
$2.55 | ||
|
Unavailable |
|||
|
#59
CLAMP
90464-44109-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#60
BRACKET, HOSE
B5H-F2957-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
BOLT, FLANGE
95802-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
Unavailable |
|||
|
#62
VALVE, CHECK 1
BG4-24362-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
GROMMET
90480-10003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
