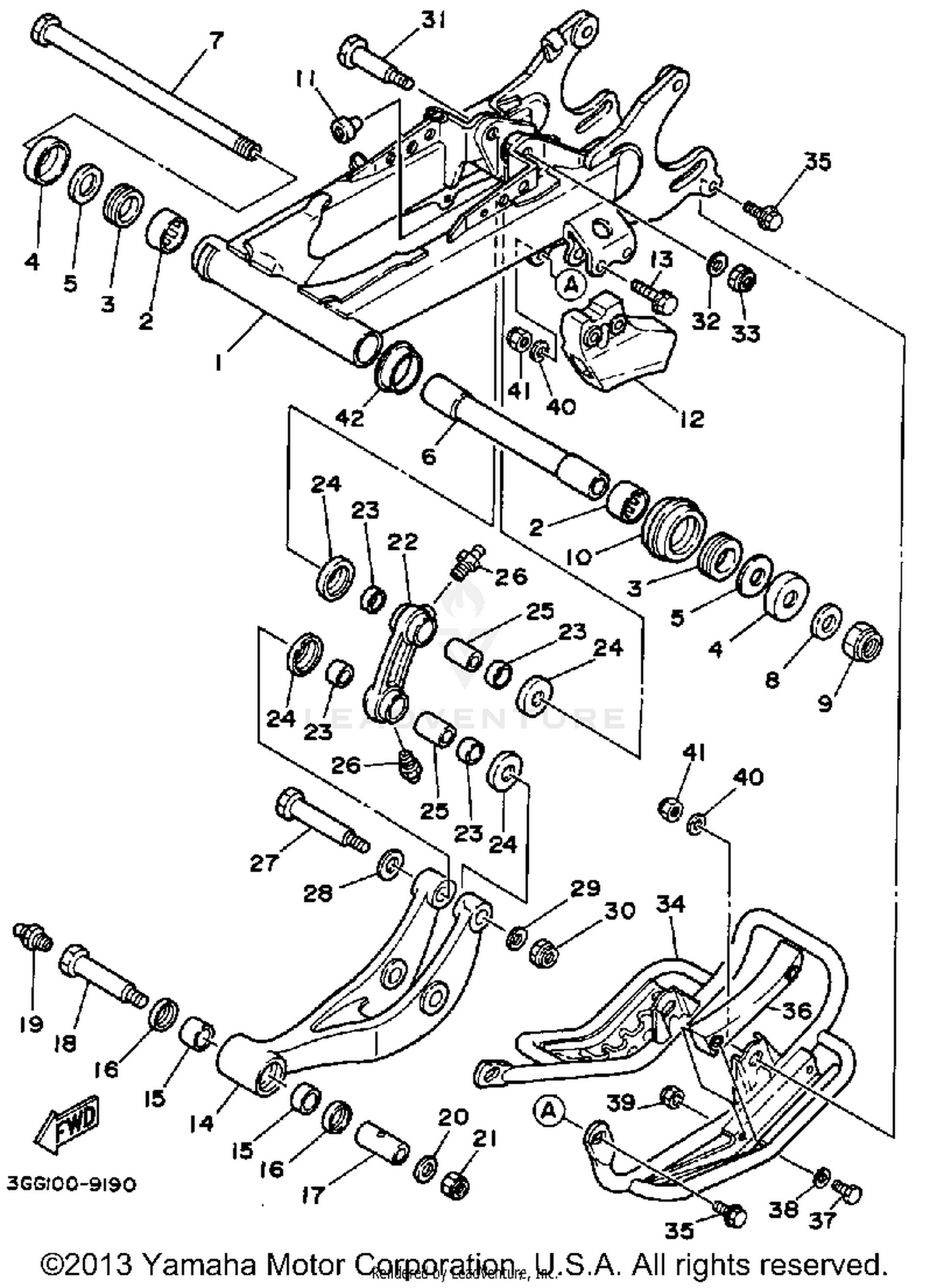

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
3GG-22110-00-35
Superseded by 3GG-22110-00-P0
|
$652.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93317-32231-00
|
$48.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
OIL SEAL (35-41-8)
93108-35004-00
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
COVER, THRUST 1
2K6-22128-01-00
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-244A9-00
Superseded by 90201-247L2-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH
2GU-22184-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, PIVOT
2GU-22141-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-160F6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SELF-LOCKING
90185-16127-00
Superseded by 90185-16002-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, GUARD
2GU-22151-10-00
|
$18.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
STOPPER, MAIN STAND
4N0-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SUPPORT, CHAIN
5X4-22199-00-00
|
$41.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE
95811-08040-00
Superseded by 95817-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
ARM, RELAY
1UY-2217A-00-00
|
$379.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH, FORMED
90383-20033-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL
93109-20029-00
Superseded by 93109-20076-00
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COLLAR
90387-125N9-00
Superseded by 90387-12021-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90109-10752-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NIPPLE, GREASE
93700-06M03-00
|
$8.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-100F7-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
NUT, SELF-LOCKING
90185-10120-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
ROD, CONNECTING 1
3GG-2217F-00-00
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSH, FORMED
90383-20032-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, THRUST 2
55K-22129-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-125N8-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NIPPLE, GREASE
93700-06M03-00
|
$8.25 | ||
|
Unavailable |
|||
|
#27
BOLT
90109-102A6-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-120E6-00
Superseded by 90201-12027-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-100E9-00
Superseded by 90201-10M05-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, SELF-LOCKING
90185-10120-00
|
$6.49 | ||
|
Unavailable |
|||
|
#31
BOLT
90109-10654-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-100F7-00
|
$10.49 | ||
|
Unavailable |
|||
|
#33
NUT, SELF-LOCKING
90185-10120-00
|
$6.49 | ||
|
Unavailable |
|||
|
#34
COVER
3GG-2219X-00-00
|
$295.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE
95821-08020-00
Superseded by 95817-08020-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
GUARD, CHAIN
2GU-22153-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT
97313-06045-00
Superseded by 97013-06045-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIPE
2GU-22155-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
