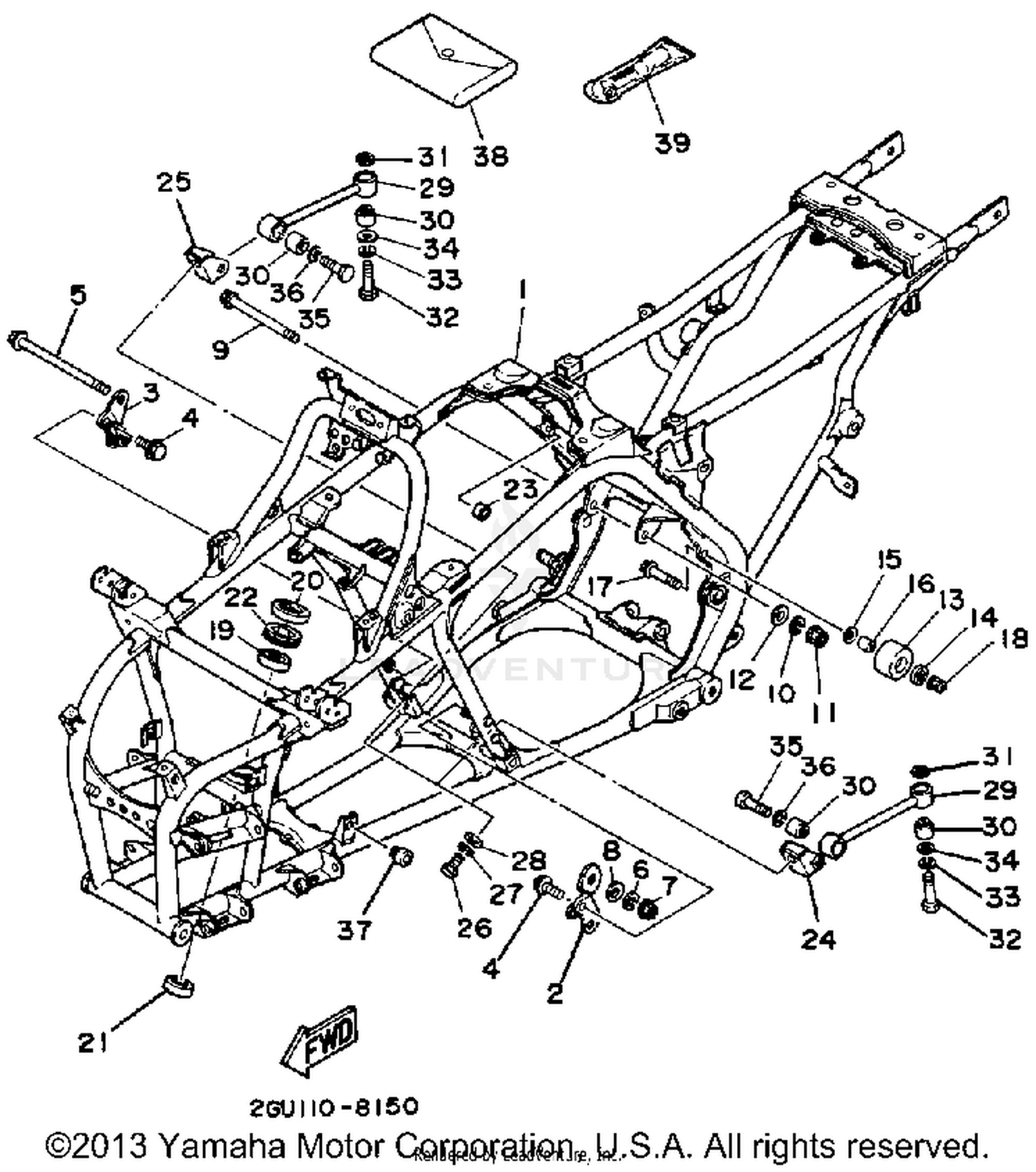

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
3GG-21110-00-35
Superseded by 3GG-21110-11-35
|
$1,312.99 | ||
|
Unavailable |
|||
|
#2
STAY, ENGINE 2
2GU-21315-00-00
Superseded by 2GU-21315-10-00
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
STAY, ENGINE 3
2GU-21316-00-00
Superseded by 2GU-21316-10-00
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT, FLANGE
95821-08025-00
Superseded by 95817-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-10444-00
Superseded by 90105-10117-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92901-10100-00
Superseded by 92990-10100-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT
95311-10600-00
Superseded by 95314-10600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92990-10600-00
|
$3.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-10328-00
Superseded by 90105-10712-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92901-10100-00
Superseded by 92990-10100-00
|
$3.25 | ||
|
Unavailable |
|||
|
#11
NUT
95311-10600-00
Superseded by 95314-10600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
92990-10600-00
|
$3.00 | ||
|
Unavailable |
|||
|
#13
TENSIONER
2HH-22178-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93300-60804-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-081A6-00
Superseded by 90201-086P8-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
COLLAR
90387-086N4-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95023-08045-00
Superseded by 95024-08045-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93306-20331-00
Superseded by 93306-20348-00
|
$44.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
OIL SEAL
93102-25081-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
OIL SEAL
93102-25099-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
HOLDER, BEARING
2GU-23872-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROMMET
90480-12299-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
STAY, ENGINE 3
2GU-21317-00-00
Superseded by 2GU-21317-10-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
STAY, ENGINE 5
2GU-21318-00-00
Superseded by 2GU-21318-10-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
97011-10020-00
Superseded by 97017-10020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92901-10100-00
Superseded by 92990-10100-00
|
$3.25 | ||
|
Unavailable |
|||
|
#28
WASHER, PLATE
92990-10600-00
|
$3.00 | ||
|
Unavailable |
|||
|
#29
STAY, ENGINE 5
2GU-21314-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
DAMPER, RUBBER 1
4L0-21485-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
92990-10600-00
|
$3.00 | ||
|
Unavailable |
|||
|
#32
BOLT
97021-10045-00
Superseded by 97017-10045-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
WASHER, SPRING
92901-10100-00
Superseded by 92990-10100-00
|
$3.25 | ||
|
Unavailable |
|||
|
#34
WASHER, PLATE
92990-10600-00
|
$3.00 | ||
|
Unavailable |
|||
|
#35
BOLT (97027-10040-00)
97021-10040-00
Superseded by 97017-10040-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
STOPPER, MAIN STAND
4N0-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
TOOL KIT
2GU-28100-10-00
Superseded by 2GU-28100-11-00
|
$43.99 | ||
|
Unavailable |
|||
|
#39
GAUGE, AIR
1NV-2811A-00-00
Superseded by 1NV-2811A-01-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
