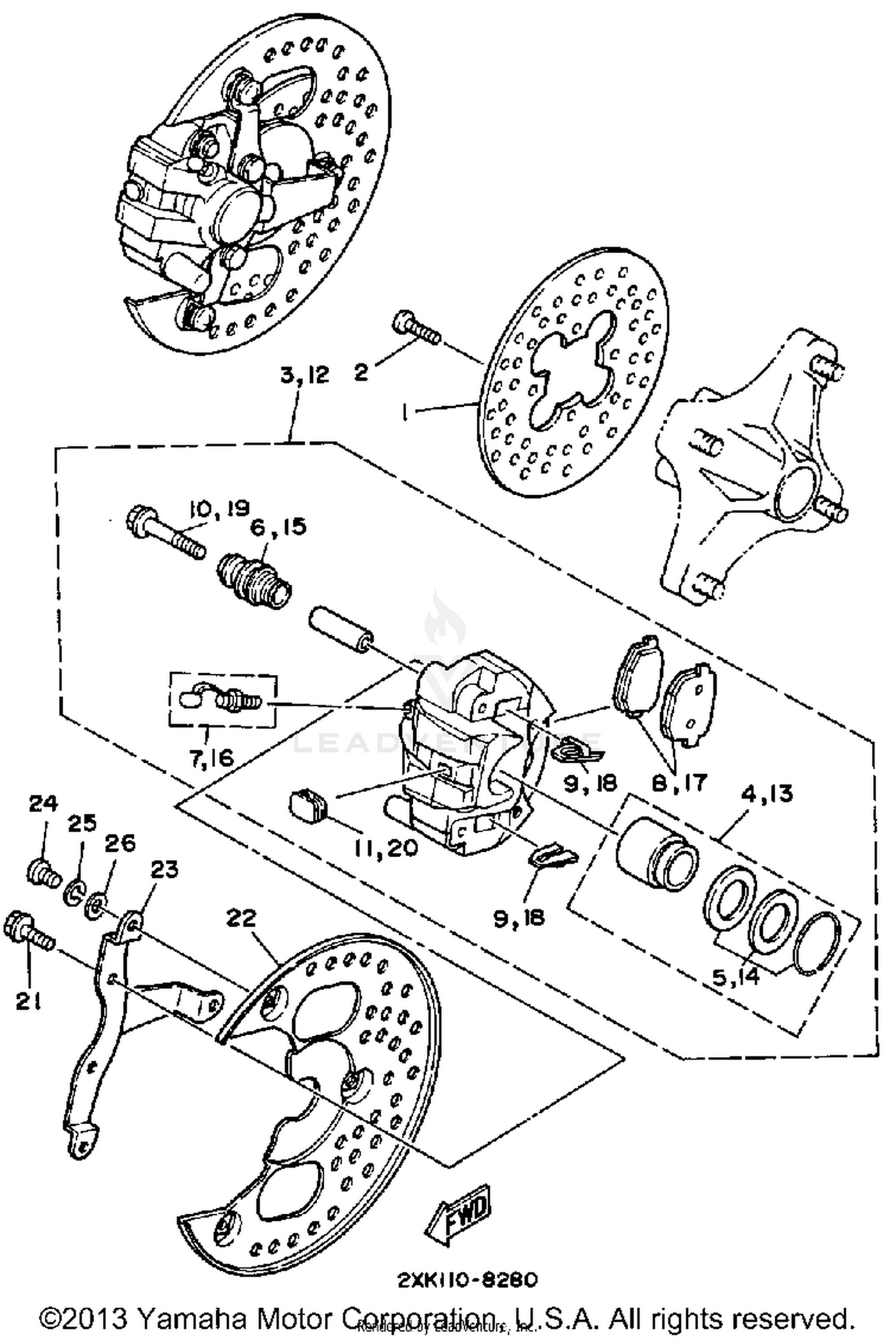

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE
1UY-25831-01-00
|
$151.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,HEX. SOCKET BUT
90109-08718-00
Superseded by 90111-08084-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSEMBLY, LH
1UY-2580T-00-00
|
$238.99 | ||
|
Unavailable |
|||
|
#4
PISTON ASSEMBLY, CALIPER
1UY-W0057-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#5
CALIPER SEAL KIT
1UY-W0047-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT 2
34X-25937-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BLEED SCREW KIT
51L-W0048-00-00
Superseded by 15B-W0048-00-00
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BRAKE PAD KIT
1UY-W0045-03-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SUPPORT, PAD
34X-25919-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
2GV-25926-00-00
Superseded by 5KN-25926-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, INDICATOR
34X-25845-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CALIPER ASSEMBLY, RH
1UY-2580U-00-00
|
$238.99 | ||
|
Unavailable |
|||
|
#13
PISTON ASSEMBLY, CALIPER
1UY-W0057-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#14
CALIPER SEAL KIT
1UY-W0047-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#15
BOOT 2
34X-25937-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#16
BLEED SCREW KIT
51L-W0048-00-00
Superseded by 15B-W0048-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#17
BRAKE PAD KIT
1UY-W0045-03-00
|
$48.99 | ||
|
Unavailable |
|||
|
#18
SUPPORT, PAD
34X-25919-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#19
BOLT
2GV-25926-00-00
Superseded by 5KN-25926-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#20
CAP, INDICATOR
34X-25845-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#21
BOLT, WASHER BASED
90105-08467-00
|
$0.85 | ||
|
Unavailable |
|||
|
#22
COVER
2GU-25127-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#23
STAY
2GU-25192-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
