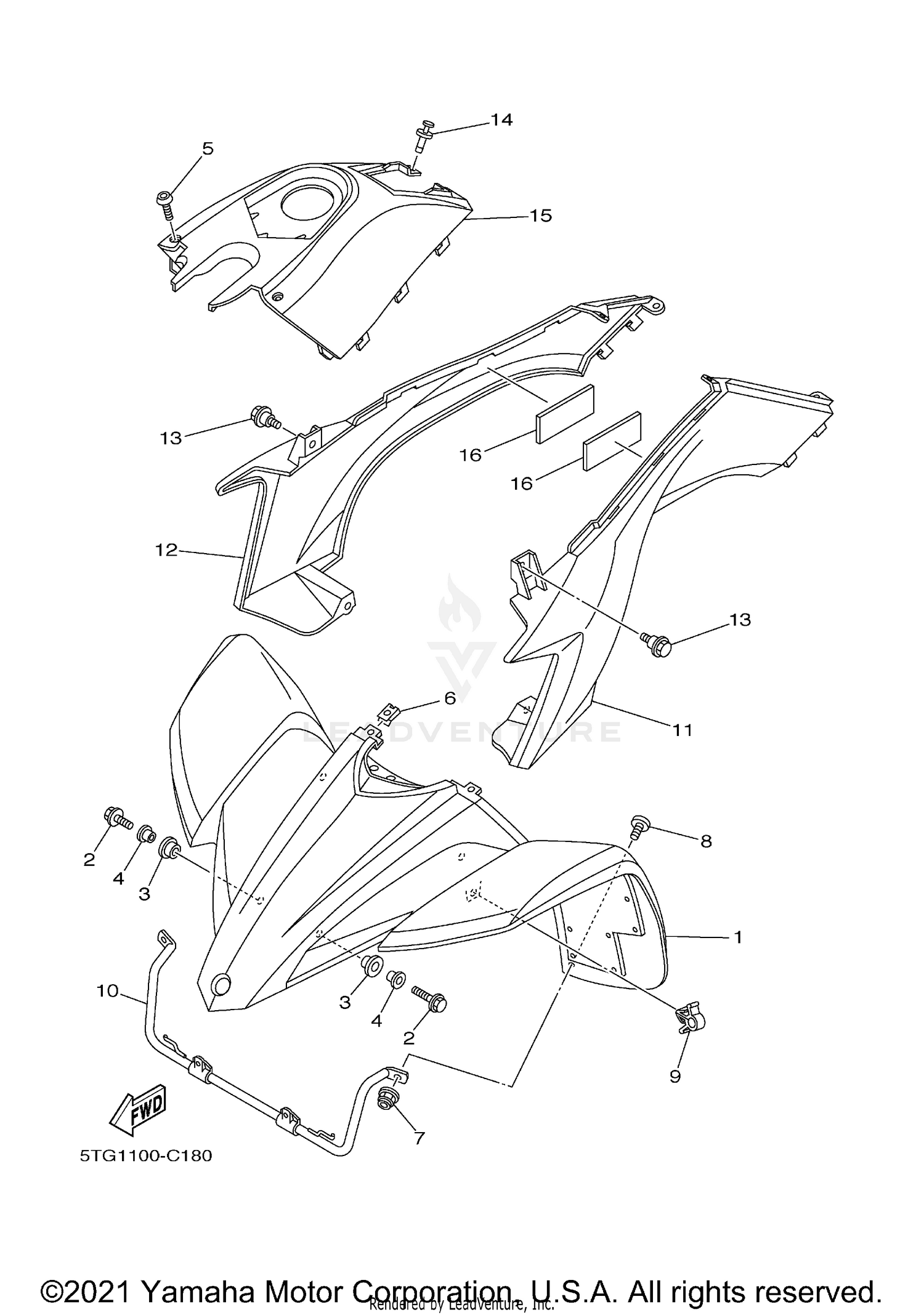

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP.
5TG-W2151-10-00
|
$386.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95802-06016-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET
90480-15006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-061F9-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT,HEX. SOCKET BUT
90110-05201-00
Superseded by 90111-05059-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NUT, SPRING
90183-05008-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET BUTTON
90111-06038-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CLAMP
90464-48174-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, FENDER 1
5TG-21513-10-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, SIDE 1
5TG-21711-30-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, SIDE 2
5TG-21721-30-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90109-06172-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
RIVET
90269-06002-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
COVER, TOP
5TG-2171A-10-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER 1
5TG-21541-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
