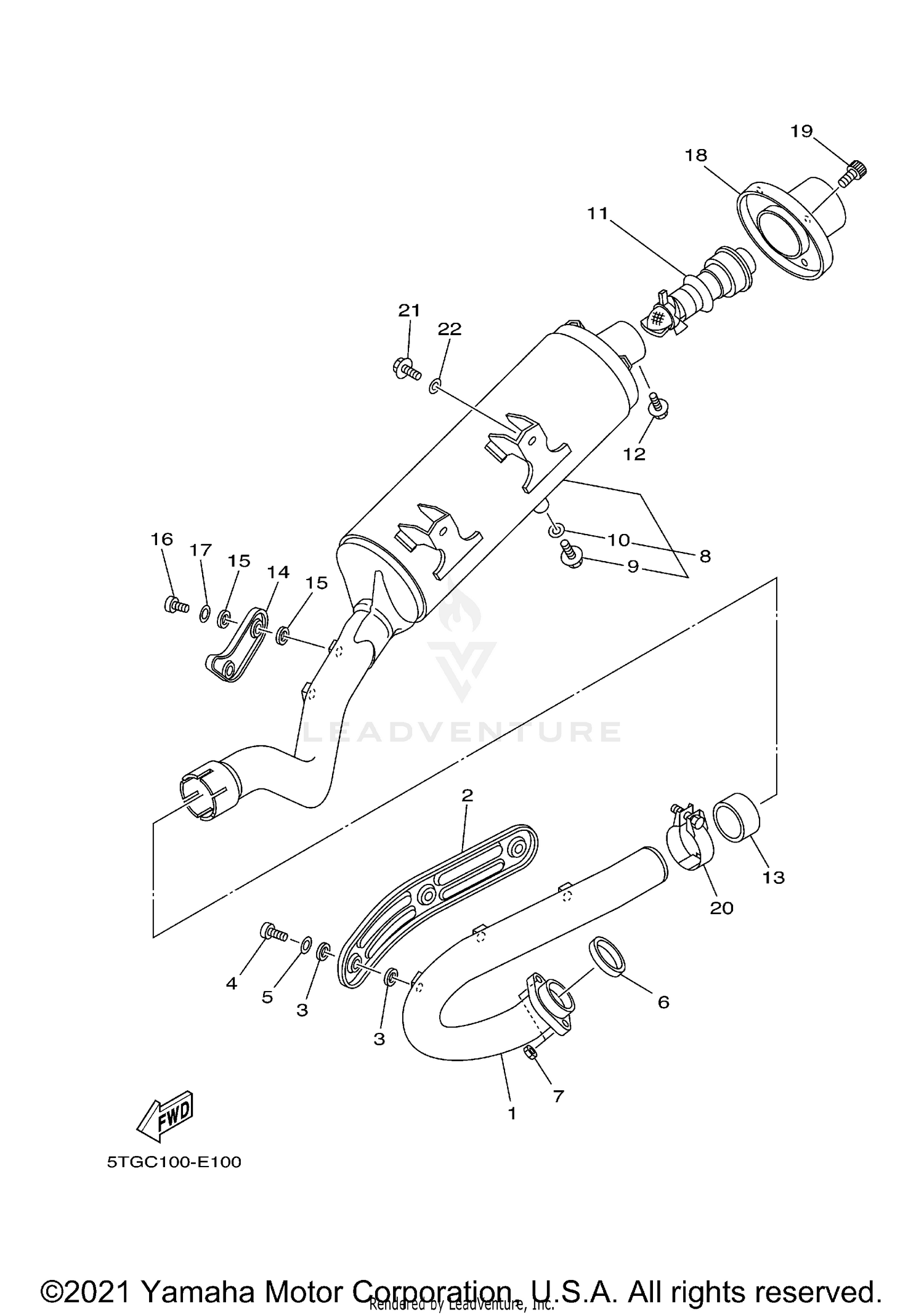

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
5TG-14611-11-00
Superseded by 5TG-14611-20-00
|
$491.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, EXHAUST PIPE
5TG-14628-10-00
Superseded by 5TG-14628-20-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-05015-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, BIND
98980-06010-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WASHER, PLAIN
92990-06200-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, EXHAUST PIPE
3VD-14613-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, WITH WASHER
95702-08500-00
|
$1.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
MUFFLER 1
5TG-14711-01-00
|
$397.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-10147-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92990-10600-00
|
$3.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PIPE, OUTLET
5TG-14752-00-00
Superseded by 5TG-14752-09-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95022-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, MUFFLER
8FA-14714-10-00
|
$45.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PROTECTOR, MUFFLER 1
5TG-14718-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-05015-00
|
$9.49 | ||
|
Unavailable |
|||
|
#16
SCREW, BINDING
90154-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
92907-06200-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, SILENCER
5TG-14787-00-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
90110-06134-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND, SILENCER
5BE-14788-00-00
|
$38.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE
90105-08129-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-08048-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
