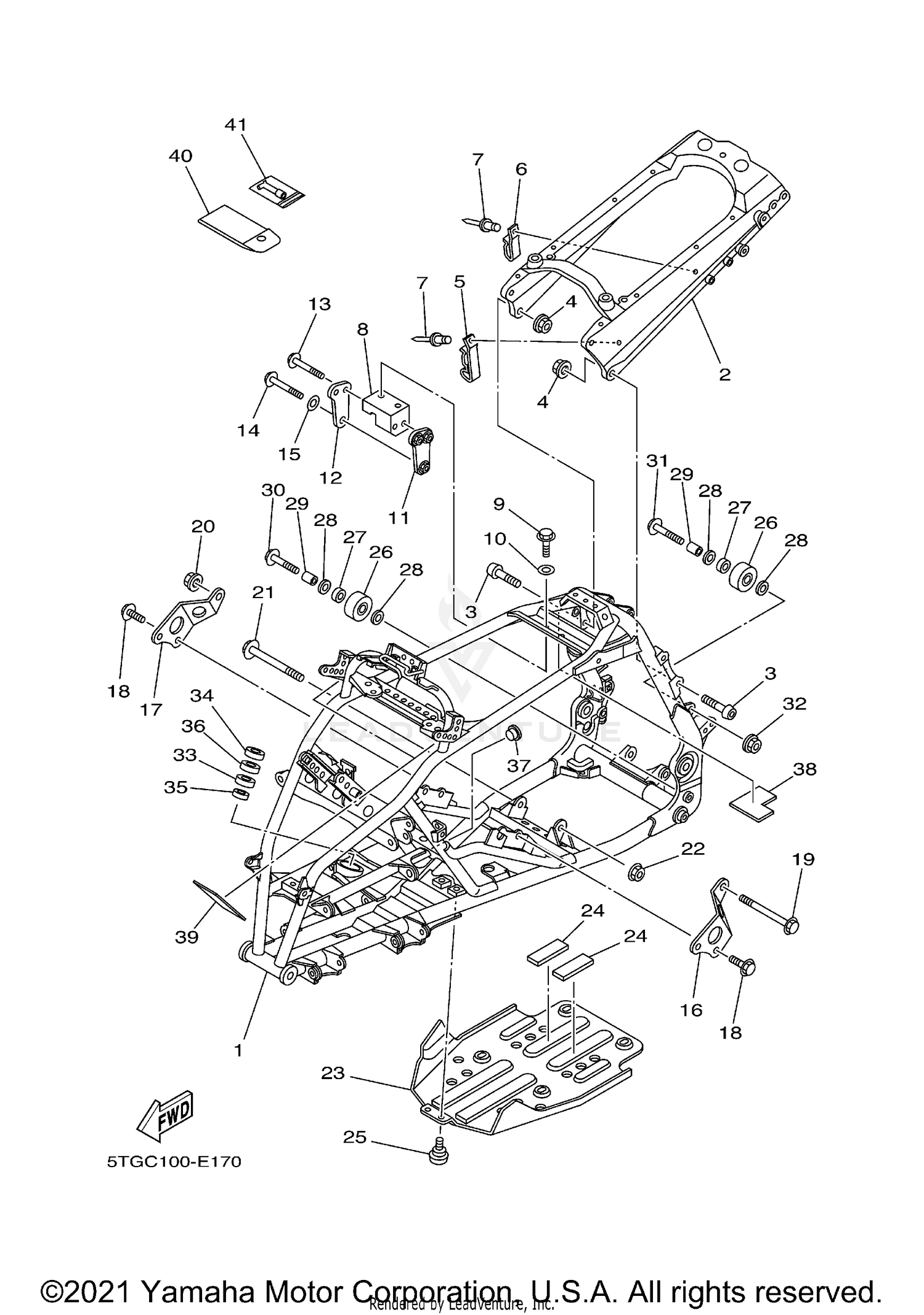

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FRAME COMP.
5D3-21101-29-00
|
$1,321.91 | ||
|
Unavailable |
|||
|
#2
REAR FRAME COMP.
5D3-21190-29-00
Superseded by 5D3-21190-28-00
|
$415.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEX. SOCKET BUTTON
90111-10031-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SELF-LOCKING
90185-10011-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP
90462-12003-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
90462-12005-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RIVET, BLIND
90267-48088-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, ENGINE 1
5TG-21315-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95812-08020-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-08053-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, ENGINE 5
5TG-21318-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, ENGINE 5
5TG-21314-10-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95812-08050-00
Superseded by 95817-08050-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95812-10055-00
Superseded by 95817-10055-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-10036-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, ENGINE 3
5D3-21316-00-00
Superseded by 5D3-21316-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAY, ENGINE 3
5D3-21317-00-00
Superseded by 5D3-21317-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT,FLANGE (JN5)
95812-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE
95812-10165-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SELF-LOCKING
90185-10011-00
|
$4.95 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
90105-10148-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, SELF-LOCKING
90185-10011-00
|
$4.95 | ||
|
Unavailable |
|||
|
#23
PROTECTOR, ENGINE
5TG-21471-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER, PLATE
41R-21717-00-00
Superseded by 90520-10021-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90109-06198-00
Superseded by 90109-06201-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
TENSIONER
5TG-22178-00-00
Superseded by 5TG-22178-01-00
|
$24.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BEARING
93300-60804-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-08043-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-086N4-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
95022-08040-00
Superseded by 95024-08040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
90105-08112-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, SELF-LOCKING
95602-08200-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING
93306-20352-00
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
OIL SEAL
93102-25081-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
OIL SEAL
93102-25099-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
HOLDER, BEARING
5GT-23872-00-00
Superseded by 2GU-23872-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PLUG, SPECL SHAPE
90338-18122-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
DAMPER
5TG-25897-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#39
DAMPER
5TG-84163-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
TOOL KIT
5TG-28100-10-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
GAUGE, AIR
1NV-2811A-01-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
