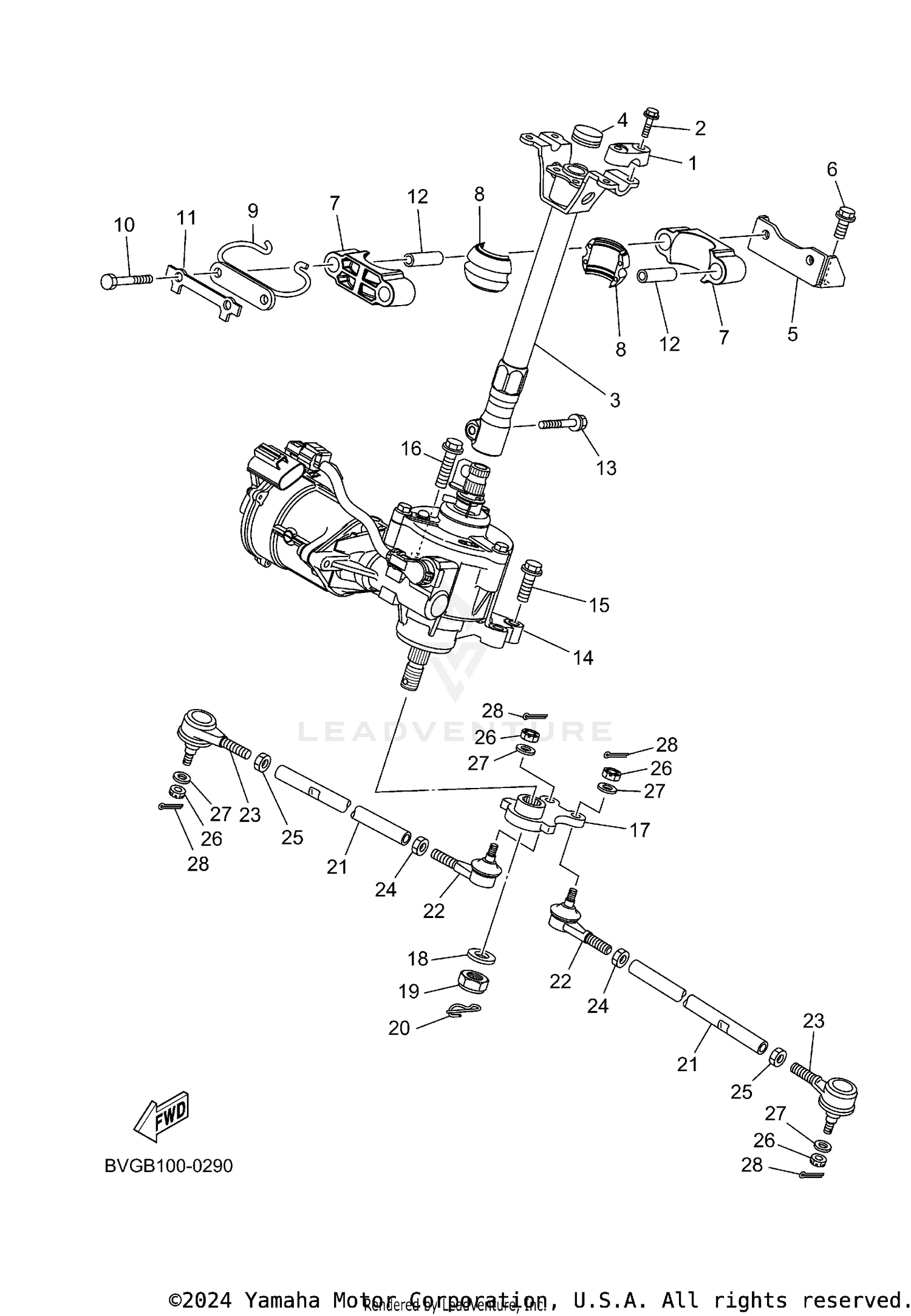

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, HANDLE UPR (1E6-23441-0
8K1-23814-00-00
Superseded by 1E6-23441-00-00
|
$30.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
BOLT, FLANGE
95812-08030-00
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLUMN, STEERING 2
BVG-F3813-00-00
|
$186.99 | ||
|
Unavailable |
|||
|
#4
PLUG, TAPER
90336-28053-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SUPT., STRG. COLUMN
1HP-F2517-10-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-10876-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, STEERING 2
1CT-F1957-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, STEERING
1CT-F3812-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, STEERING LOWER
1CT-F3868-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
97012-08080-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, LOCK 1
1CT-F3894-00-00
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE 3
1CT-F1545-01-00
|
$3.85 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
90105-08290-00
|
$8.99 | ||
|
Unavailable |
|||
|
#14
POWER STRG. ACTUATOR ASSY
BVG-238B0-03-00
Superseded by BVG-238B0-05-00
|
$2,918.99 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
90105-08297-00
Superseded by 90105-08150-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-08298-00
|
|||
|
Unavailable |
|||
|
#17
ARM, PITMAN
BVG-F3816-00-00
|
$71.99 | ||
|
Unavailable |
|||
|
#18
WASHER, PLATE
90201-16021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U
95612-16100-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, COTTER (91401-20030-00)
91402-20025-00
Superseded by 91490-20035-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
ROD, TIE
2BG-23831-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
JOINT, UNIVERSAL 1
BYX-23841-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#23
JOINT, UNIVERSAL 2
BYX-23845-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#24
NUT
95302-10700-00
Superseded by 95380-10700-00
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
90170-10010-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, CASTLE
90171-10001-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER
90209-10229-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, COTTER
91401-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
