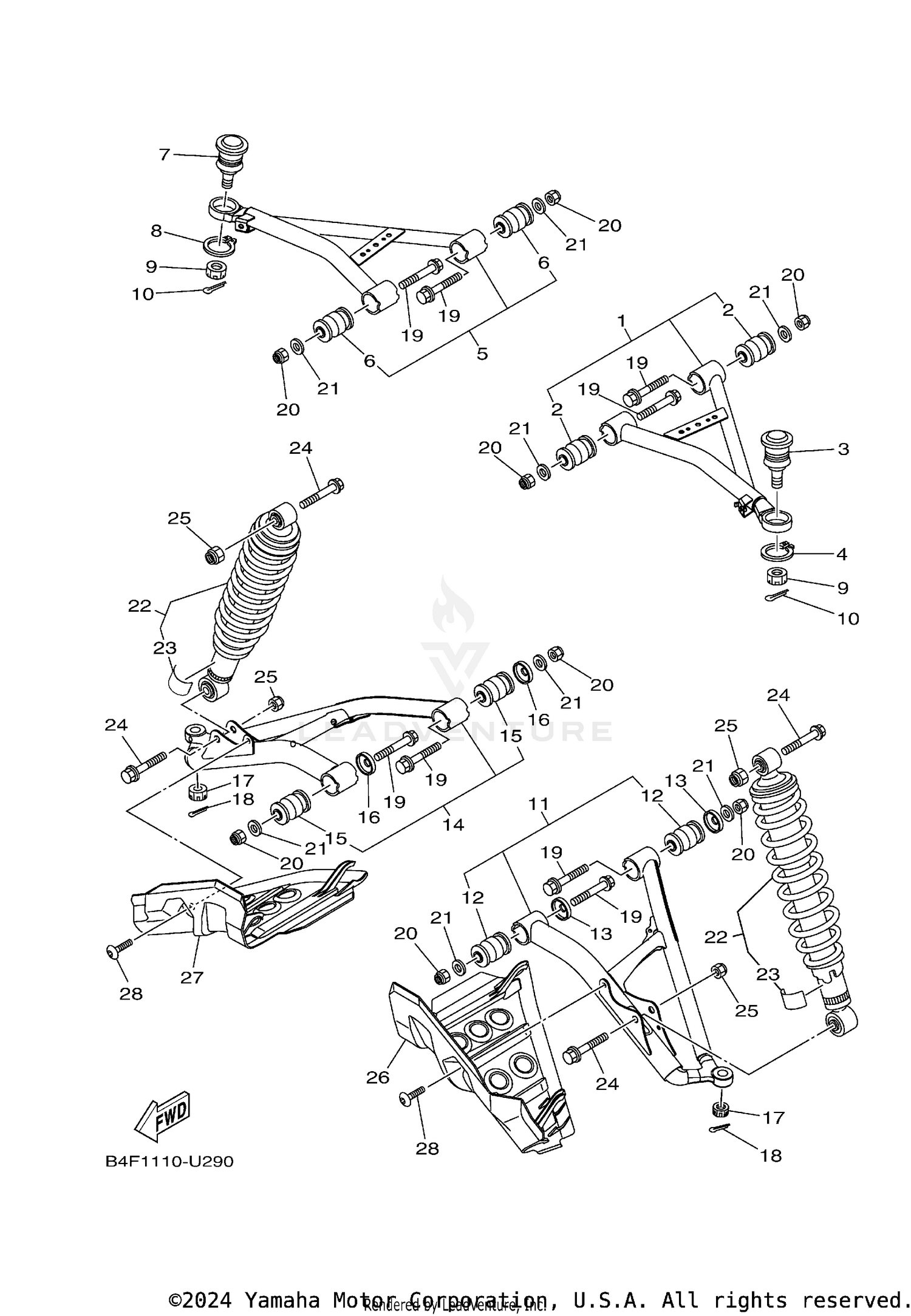

Front Suspension & Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT UPPER ARM CO
BYX-F3540-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#2
BUSH
1HP-F3526-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BALL JOINT 2
3B4-23579-01-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
99009-30400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
FRONT UPPER ARM CO
BYX-F3550-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#6
BUSH
1HP-F3526-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#7
BALL JOINT 2
3B4-23579-01-00
|
$90.99 | ||
|
Unavailable |
|||
|
#8
CIRCLIP
99009-30400-00
|
$9.49 | ||
|
Unavailable |
|||
|
#9
NUT, CASTLE
90171-12001-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN. COTTER
91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
FRONT LOWER ARM CO
2BG-F3570-12-00
|
$91.99 | ||
|
Unavailable |
|||
|
#12
BUSH
1HP-F3526-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#13
WASHER
5KM-22149-10-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
FRONT LOWER ARM CO
2BG-F3580-12-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH
1HP-F3526-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#16
WASHER
5KM-22149-10-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
NUT, CASTLE
90171-12001-00
|
$3.55 | ||
|
Unavailable |
|||
|
#18
PIN. COTTER
91490-25020-00
|
$3.45 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE
90105-10484-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-10035-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHOCK ABSORBER ASSY 2
BFE-F3390-01-00
|
$205.99 | ||
|
Unavailable |
|||
|
#23
LABEL, WARNING
BB5-F2259-00-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
90105-10131-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, SELF-LOCKING
90185-10012-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
COVER, UNDER 1
2BG-F3123-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, LOWER 2
2BG-F3133-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90109-06264-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
