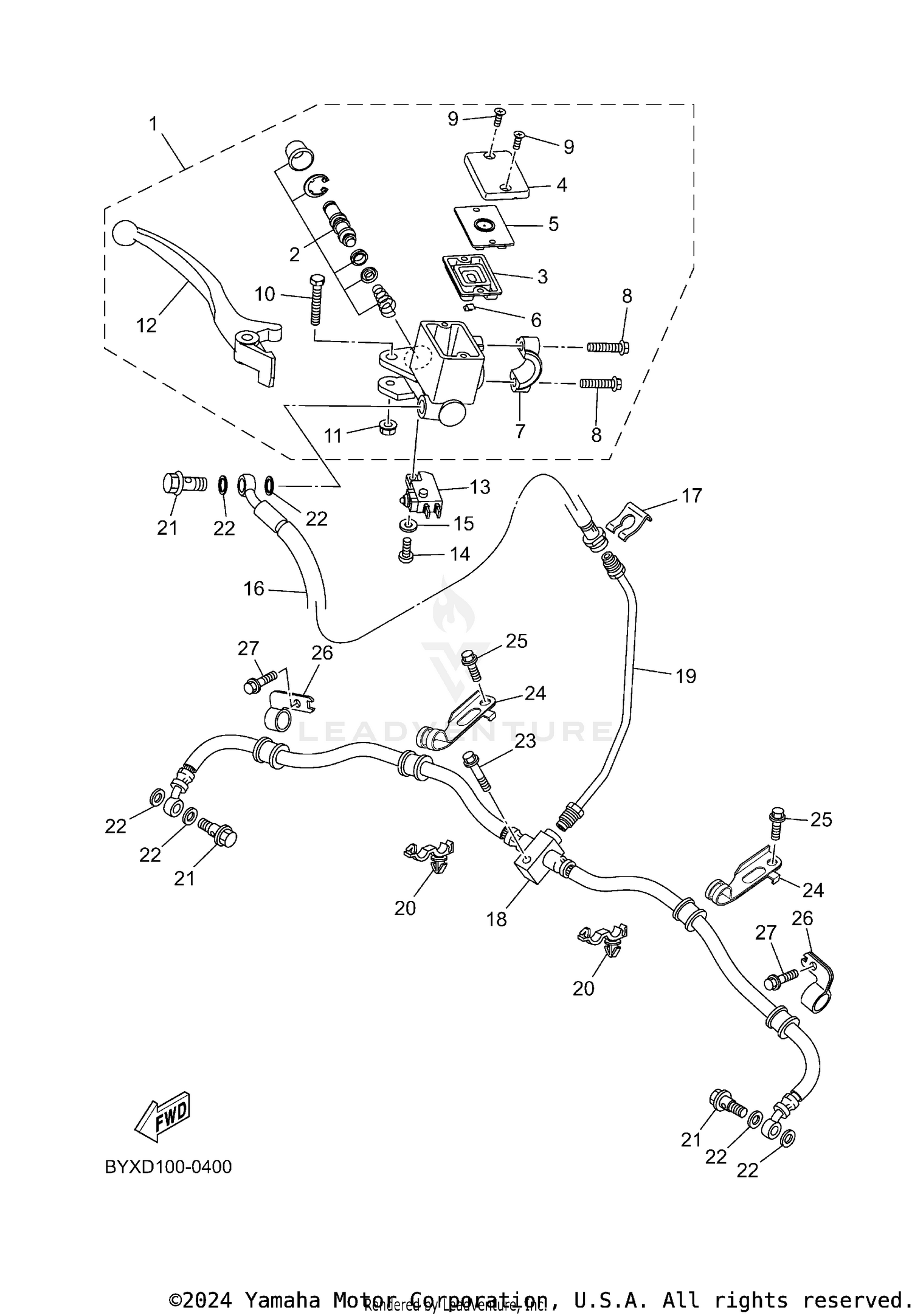

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER ASSY
B16-F583T-01-00
|
$83.99 | ||
|
Unavailable |
|||
|
#2
CYLINDER KIT, MASTER
B16-F5807-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, RESERVOIR
B16-F5854-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR
B16-F5852-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, DIAPHRAGM
B16-F585B-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEPARATOR
B16-F5889-00-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, MASTER CYLINDER
B16-F5867-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
B16-F6332-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, FLAT HEAD
98702-04012-00
Superseded by 98707-04012-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, LEVER
B16-F589F-10-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
LEVER, BRAKE
B16-F3922-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FRONT STOP SWITCH AS
1HP-83980-03-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW,PANHEAD
98502-04012-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, BRAKE 1
2UD-F5872-02-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
2GU-25866-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, BRAKE 2
BYX-F5873-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#19
PIPE, BRAKE
BVG-F5871-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#20
CLAMP
90464-20010-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, UNION
90401-10015-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95812-06025-00
Superseded by 95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, BRAKE HOSE
BVG-F5886-00-00
|
$3.85 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE
95812-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
HOLDER, BRAKE HOSE 2
2PG-25876-00-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
95812-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
Unavailable |
|||
