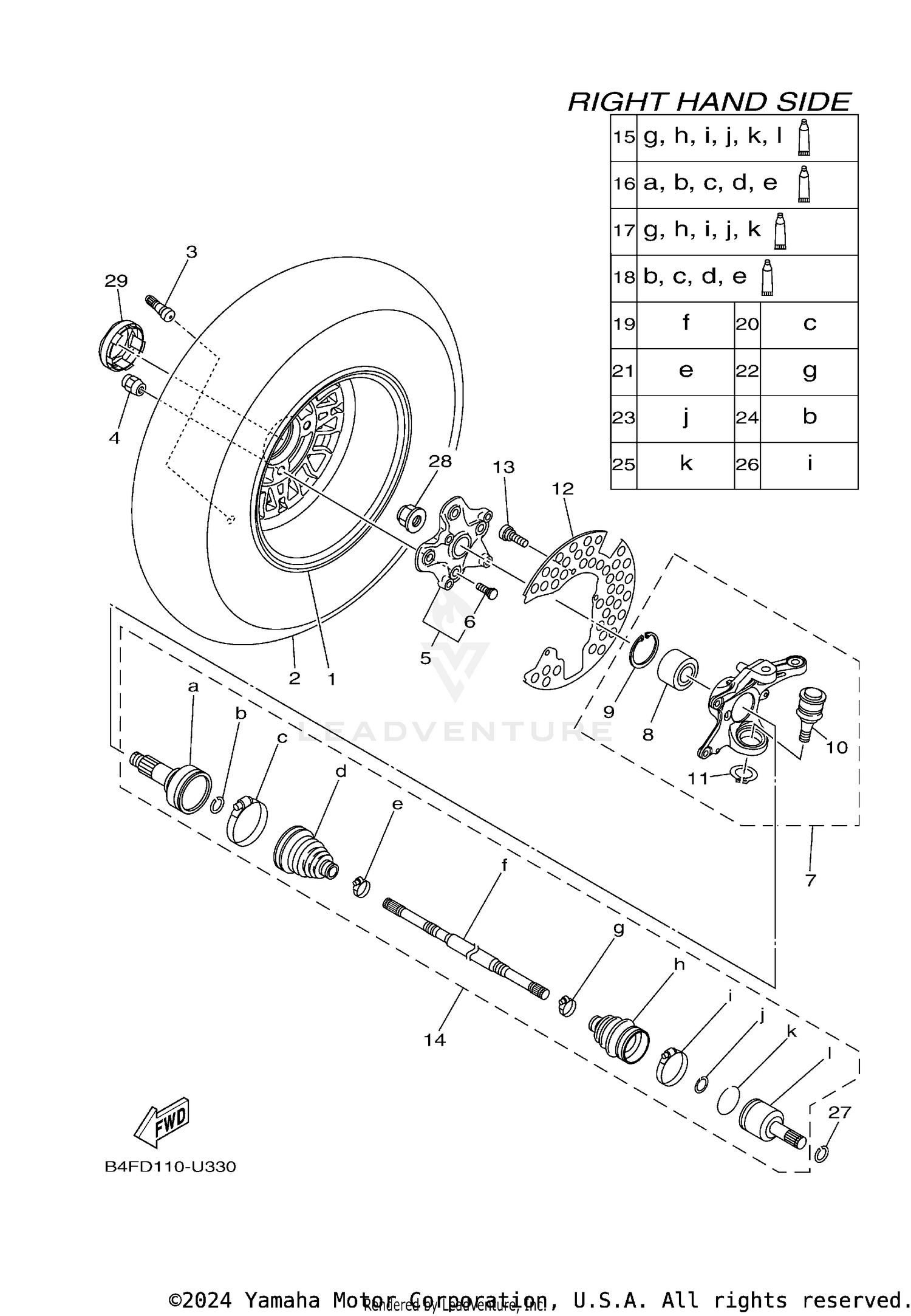

Front Wheel 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, FRONT
B32-F5168-50-00
Superseded by B32-F5168-51-00
|
$234.99 | ||
|
Unavailable |
|||
|
#2
TIRE (AT26X8-12 MU05Y**TL)
94108-12822-00
|
$255.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM (TR413)
93900-00813-00
Superseded by 93900-00812-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90179-10032-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
HUB ASSY 2
B16-F510D-03-00
|
$59.99 | ||
|
Unavailable |
|||
|
#6
BOLT, SERRATION
90114-10014-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
STEERING,KNUCKLE (R)
2BG-F3502-11-00
|
$177.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93305-00602-00
|
$110.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CIRCLIP
99009-55500-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BALL JOINT 2
3B4-23579-01-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
99009-30400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
RING, WHEEL 1
BB5-F514A-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, BIND
98902-06010-00
Superseded by 98980-06010-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
DRIVE SHAFT ASSY
2UD-2518F-00-00
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DOUBLE OFF SET JOINT
2UD-2510J-00-00
|
$381.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BALL JOINT SET
2UD-2510F-00-00
|
$453.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT SET(DOUBLE OFFSET JOINT)
2UD-2510H-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOOT SET (BALL JOINT)
2UD-2510G-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT
2UD-2518E-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOOT BAND(DOUBLE OFFSET JOINT)
2UD-2511H-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOOT BAND (SMALL)
2UD-2512G-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOOT BAND (SMALL)
2UD-2512G-10-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SNAP RING
3B4-2512J-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
2UD-2512H-00-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP
3B4-25182-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOOT BAND(DOUBLE OFFSET JOINT)
2UD-2511H-10-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
93450-22119-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
NUT
90179-20016-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WHEEL CAP ASSY.
1RB-F530B-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
