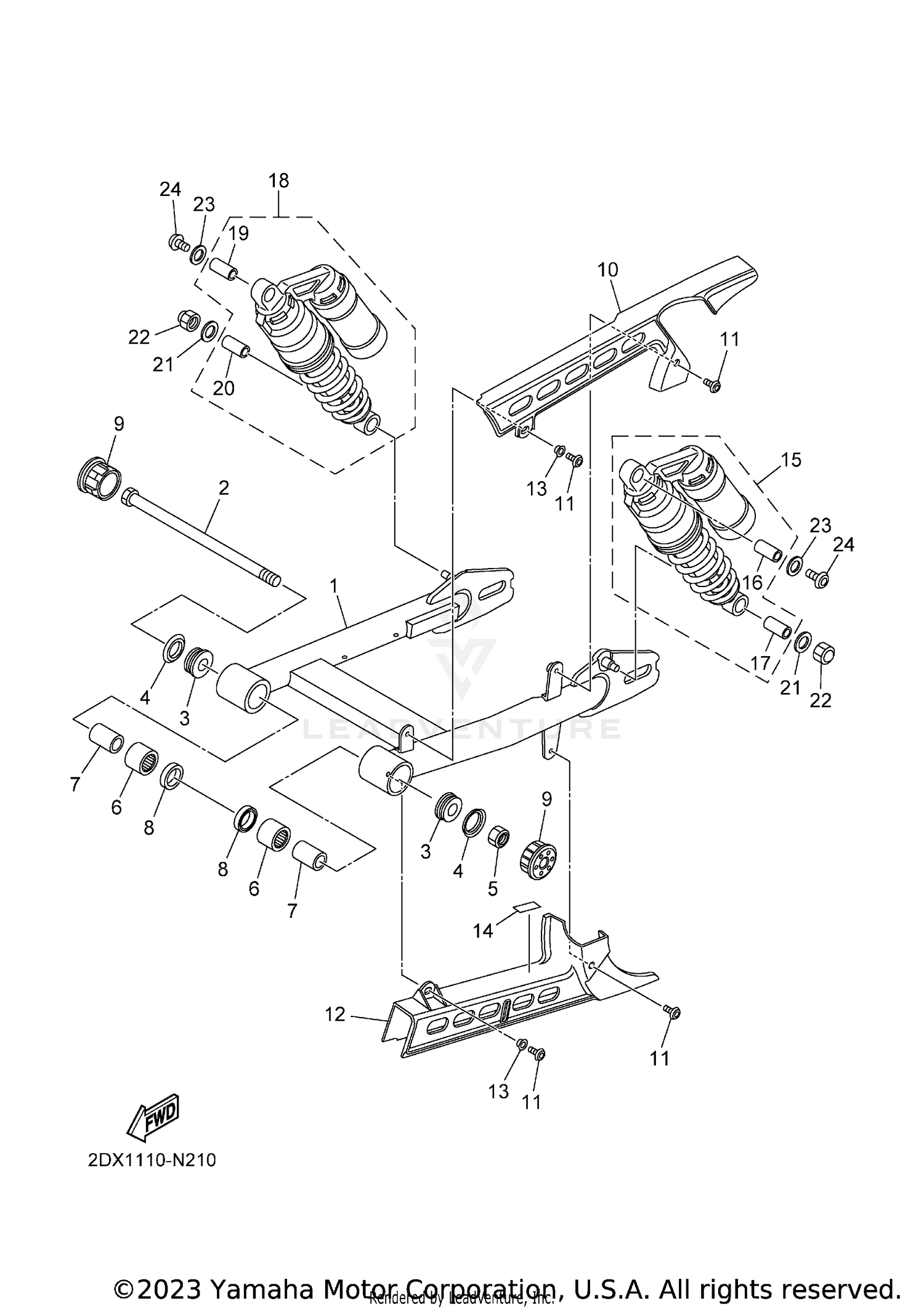

Rear Arm Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
1TP-22110-00-00
|
$690.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT, PIVOT
1TP-22141-00-00
|
$197.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-16030-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93108-44001-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SELF-LOCKING
95602-16100-00
Superseded by 95617-16100-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93317-52897-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-16032-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93109-28001-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER
1TP-2219X-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CASE, CHAIN
1TP-22311-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. SOCKET BUTTON
90111-06127-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE, CHAIN 2
1TP-22312-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-06048-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
LABEL, TIRE
1TP-21668-00-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHOCK ABSORBER ASSY, REAR
2DX-22210-02-00
|
$838.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSH, REAR SHOCK ABSORBER
447-22217-21-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BUSH, REAR SHOCK ABSORBER
447-22216-20-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHOCK ABSORBER ASSY, REAR
2DX-22220-02-00
|
$777.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BUSH, REAR SHOCK ABSORBER
447-22217-21-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
BUSH, REAR SHOCK ABSORBER
447-22216-20-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-10074-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
NUT, CROWN
90176-10073-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-08119-00
|
$3.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SCREW
90149-08054-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
